JVC GR-D93 User Manual

NDEXEN51

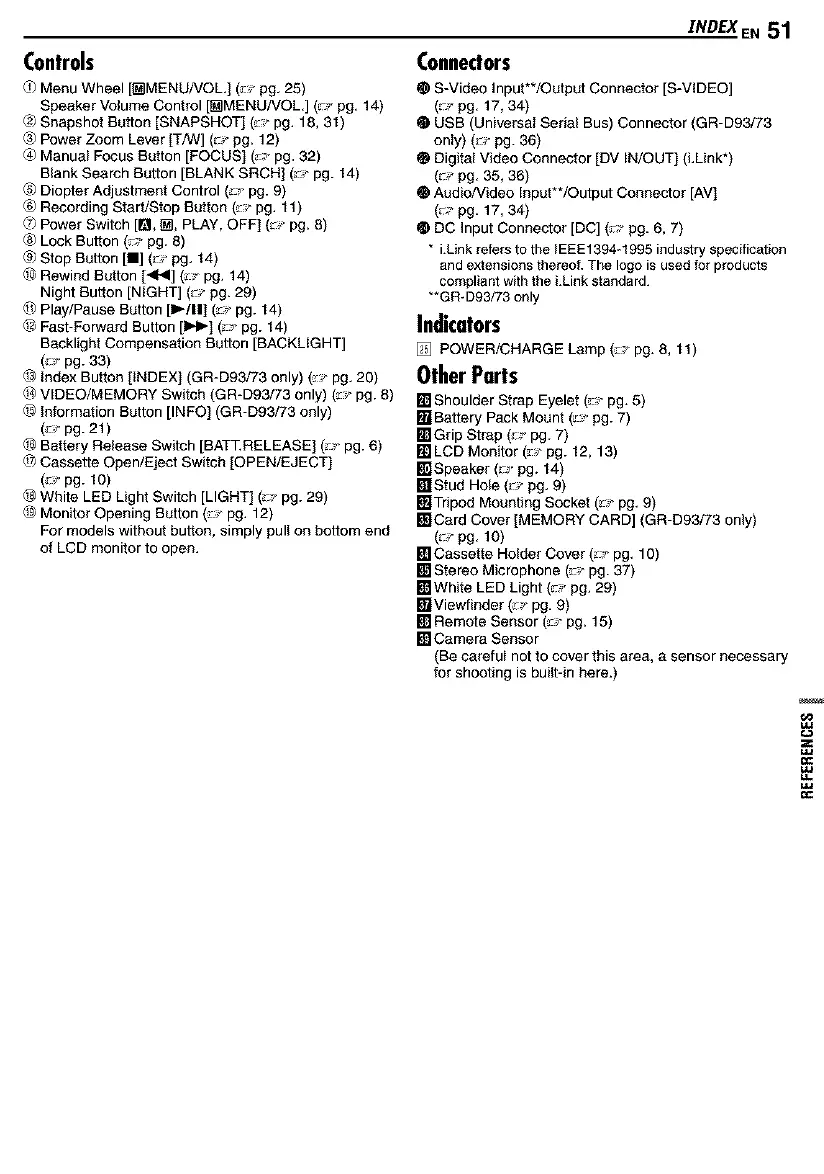

Controls
_ Menu Wheel [_MENU/VOL.] (_ pg. 25)
Speaker Volume Control [_MENU/VOL.] (rr pg. 14)
@>Snapshot Button [SNAPSHOT] (_,,-pg. 18, 31)
Power Zoom Lever IT/W] (rr pg. 12)
Manual Focus Button [FOCUS] (_,- pg. 32)
Blank Search Button [BLANK SRCH] (_,-pg. 14)
_ Diopter Adjustment Control (__-pg. 9)
® Recording Start/Stop Button (_,,-pg. 11)
_7>Power Switch [1_1_, PLAY, OFF] (: ;_pg. 8)
Lock Button (rr pg. 8)
_ Stop Button [I] (rr pg. 14)
L_ Rewind Button [414] (:_ pg. 14)
Night Button [NIGHT] (rr pg. 29)
Play/Pause Button [1_/11](_,ppg. 14)
_$ Fast-Forward Button [1_1_](_J-pg. 14)
Backlight Compensation Button [BACKLIGHT]
(;J' pg. 33)
_$ Index Button [INDEX] (GR-D93/73 only) (_,J-pg. 20)
_ VIDEO/MEMORY Switch (GR-D93/73 only) (_,,-pg. 8)
_$ Information Button [INFO] (GR-D93/73 only)
(; J'pg.21)
_$ Battery Release Switch [BATT.RELEASE] (_- pg. 6)
_5 Cassette Open/Eject Switch [OPEN/EJECT]
(;J' pg. 10)
White LED Light Switch [LIGHT] (_,- pg. 29)
Monitor Opening Button (: ,_pg. 12)
For models without button, simply pull on bottom end
of LCD monitor to open.
Connectors
• S-Video Input**/Output Connector [S-VIDEO]
(;_r pg. 17, 34)
• USB (Universal Serial Bus) Connector (GR-D93/73
only) (r J-pg. 36)
• Digital Video Connector [DV IN/OUT] (LUnk*)
(rr pg. 35, 36)
@ Audio/Video Input**/Output Connector [AV]
(;_r pg. 17, 34)
• DC input Connector [DC] (r_ pg. 6, 7)
• i.Link refersto the IEEE1394*t995 industry specification
and extensions thereof.The logo is used for products
compliant with thei.Link standard.
•*GR-D93/73 only
Indicators
[] POWER/CHARGE Lamp (: ;_pg. 8, 11)
OtherParts
[] Shoulder Strap Eyelet (_- pg. 5)
[]Battery Pack Mount (.'_"pg. 7)
[]Grip Strap (_';-pg. 7)
[]LCD Monitor (_ pg. 12, 13)
Itr_Speaker (r__pg. 14)
[]Stud Hole (rr pg. 9)
[]Tripod Mounting Socket (_- pg. 9)
[]Card Cover [MEMORY CARD] (GR-D93/73 only)
(rr pg. 10)
[] Cassette Holder Cover (.,,- pg. 10)
[] Stereo Microphone (_- pg. 37)
[]White LED Light (r_ pg. 29)
k"BViewfinder(_,_-pg. 9)
[] Remote Sensor (_,_-pg. 15)
[]Camera Sensor
(Be careful not to cover this area, a sensor necessary
for shooting is built-in here.)

JVC GR-D93 Specifications

General

Digital zoom	700 x
Optical zoom	10 x
Sensor type	CCD
Total megapixels	1.3 MP
Optical sensor size	1/4 \
I/O ports	DV Input/Output Analogue Input S-Video & A/V Input/Output
Interface	USB/IEEE1394 (i.LINK)
Resolution	1600 x 1200 pixels
Compatible operating systems	Windows/Mac
Display resolution	25 pixels
Bundled software	ImageMixer
Playback zoom (max)	70 x
