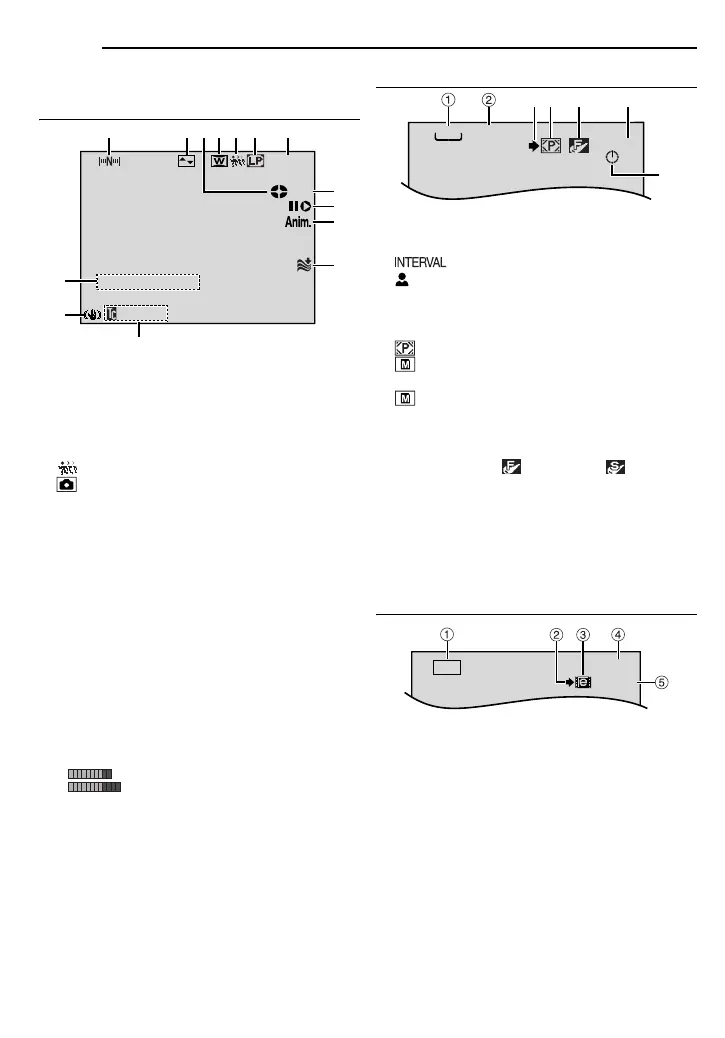

LCD Monitor/Viewfinder Indications
During Video Recording Only
a Navigation Indicator (墌 pg. 49)
B Selected Wipe/Fader Effect Indicator
(墌 pg. 48)
C Tape Running Indicator (墌 pg. 19)
(Rotates while tape is running.)
D Selected Wide Mode Indicator (墌 pg. 39)
E : Live Slow Indicator (墌 pg. 43)
: Snapshot Indicator (墌 pg. 44)
F Recording Speed Mode (SP/LP) (墌 pg. 38)
G Tape Remaining Time (墌 pg. 19)
H REC: (Appears during recording.) (墌 pg. 19)
PAUSE: (Appears during Record-Standby
mode.) (墌 pg. 19)
I Insert Editing/Insert Editing Pause Mode
(墌 pg. 56)
J 5S/Anim.: Displays the 5-Second Recording
mode or Animation recording mode.
(墌 pg. 39)
K Wind Cut Indicator (墌 pg. 39)
L Time Code (墌 pg. 40, 42)
M Digital Image Stabiliser (“DIS”) (墌 pg. 39)
N SOUND 12BIT/16BIT: Sound Mode Indicator
(墌 pg. 38) (Appears for approx. 5 seconds
after turning on the camcorder.)
: Auxiliary Microphone Level
Indicator
(Appears when an optional microphone is
connected. 墌 pg. 40, “AUDIO LEV.”)
During D.S.C. Recording Only
a Image Size: 1600 (1600 x 1200), 1152
(1152 x 864), 1024 (1024 x 768) or 640
(640x480) (墌 pg. 41)
B : Interval Shooting Icon (墌 pg. 28)
: Focus Icon (墌 pg. 28)
C Shooting Icon (墌 pg. 28)
(Appears and blinks during shooting.)
D Card Icon (墌 pg. 28)
: Appears during shooting.
: Blinks in white when a memory card is
not loaded.
: Blinks in yellow while the camcorder is
reading the data in the memory card such as
Navigation thumbnail images, video clips, still
images, etc.
E Picture Quality: (FINE) and
(STANDARD) (in order of quality) (墌 pg. 41)
F Remaining Number Of Shots (墌 pg. 28)
(Displays the approximate remaining number
of shots that can be stored during D.S.C.
recording.)
G Clock Icon (墌 pg. 28)
During E-Mail Clip Recording
a Image Size: 160 (160 x 120)
b Shooting Icon (墌 pg. 28, 32)
c E-Mail Clip Recording Indicator (墌 pg. 32)
d Memory Card Remaining Time For E-Mail
Clip Recording (墌 pg. 32)
e E-Mail Clip Recording Time (墌 pg. 32)
