How To Attach The Core Filter

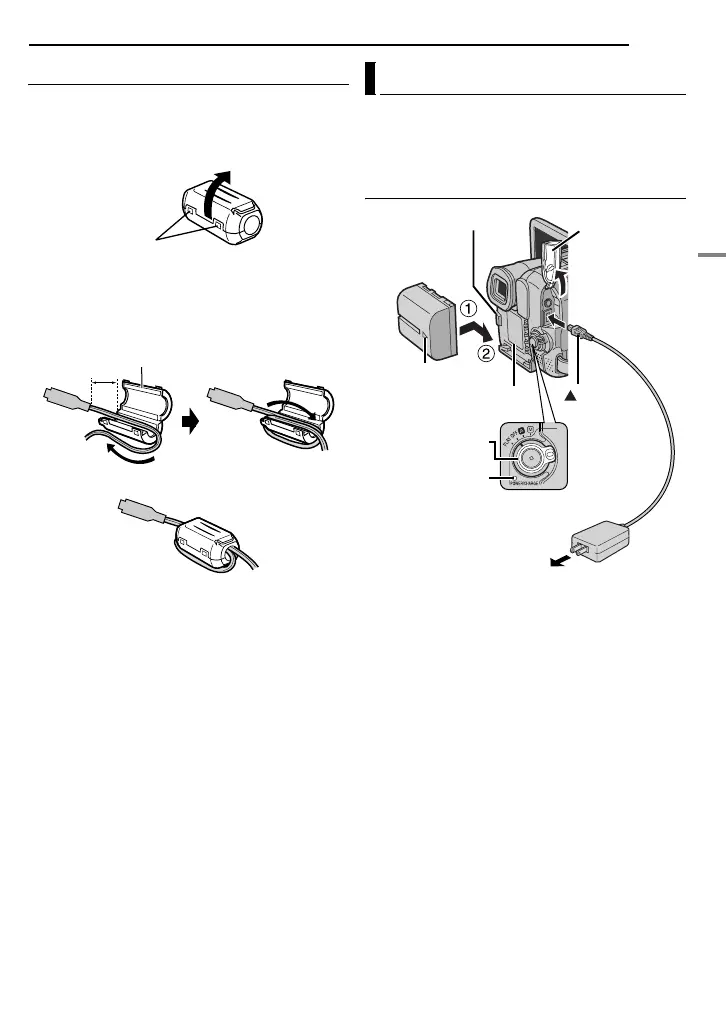

Attach the core filters to the cables. The core
filter reduces interference.
1 Release the stoppers on both ends of the
core filter.
2 Run the cable through the core filter, leaving
approx. 3 cm (1-3/16") of cable between the
cable plug and the core filter.
Wind the cable once around the outside of the
core filter as shown in the illustration.
3 Close the core filter until it clicks shut.
NOTES:
● Take care not to damage the cable.
● When connecting a cable, attach the end with the
core filter to the camcorder.
This camcorder’s 2-way power supply system
lets you choose the most appropriate source of
power. Do not use provided power supply units
with other equipment.
Charging The Battery Pack
1 Set the Power Switch to “OFF”.
2 With the arrow on the battery pack pointing
right, push the battery pack slightly against the
battery pack mount a.
3 Slide the battery pack to the right until it locks
in place b.
4 Connect the AC Adapter to the camcorder.
5 Plug the AC Adapter into an AC outlet. The
POWER/CHARGE lamp on the camcorder
blinks to indicate charging has started.
6 When the POWER/CHARGE lamp goes out,
charging is finished. Unplug the AC Adapter
from the AC outlet. Disconnect the AC Adapter
from the camcorder.
Stopper
3 cm (1-3/16")
Wind once.
Core filter
Power
Arrow
BATT. RELEASE
Battery pack mount
Battery pack
POWER/CHARGE
lamp
Power switch
To AC outlet
mark
To
DC connector
AC Adapter
Open the cover.
