2-16
b
a
c
<PLAY mode>

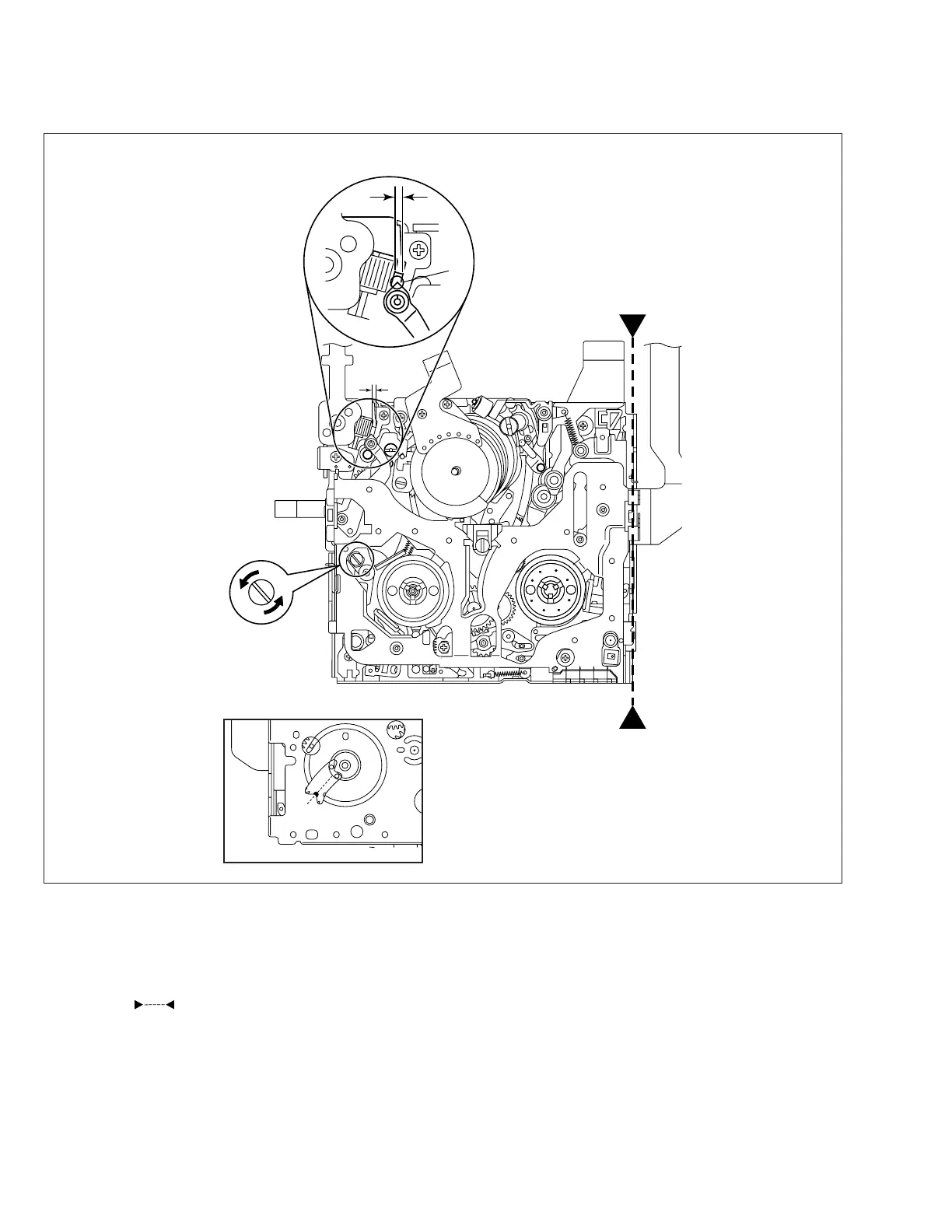

2.2.9 Locating tension pole
Fig. 2-2-15
Locating procedure
1. Enter the mechanism assembly into the PLAY mode. (Re-
fer to page 2-2.)
2. When the “
” part is positioned down, make sure that
the part “a” of the tension arm assembly is located within
the range of “b”.
3. If the part “a” is out of the range, turn the pin “c” to ad-
just the position.
