JVC GR-DVL100U Technical Guide

2-5
2) Construction of internal lens
Since the internal lens is constructed between the color filter and gobo, the light condensation
efficiency is improved even for inclined incident light.
Sensor V. Register
On-chip
microlens
Color filter
Poly Si
Gobo
V. Register
Poly Si
Internal len
s
On-chip
microlens
Color filter
Gobo
Sensor

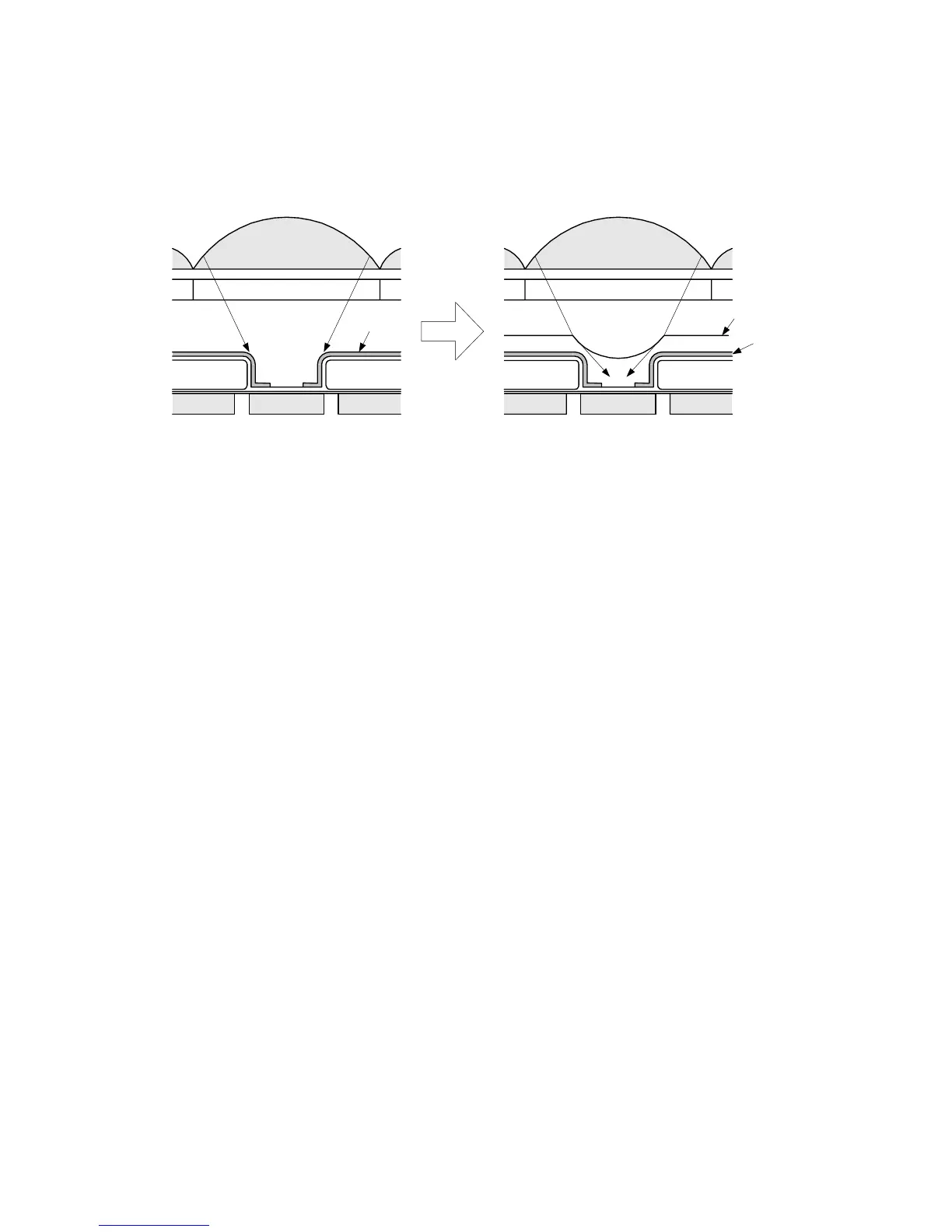

Fig. 2-2-4 Structural drawing of internal lens
