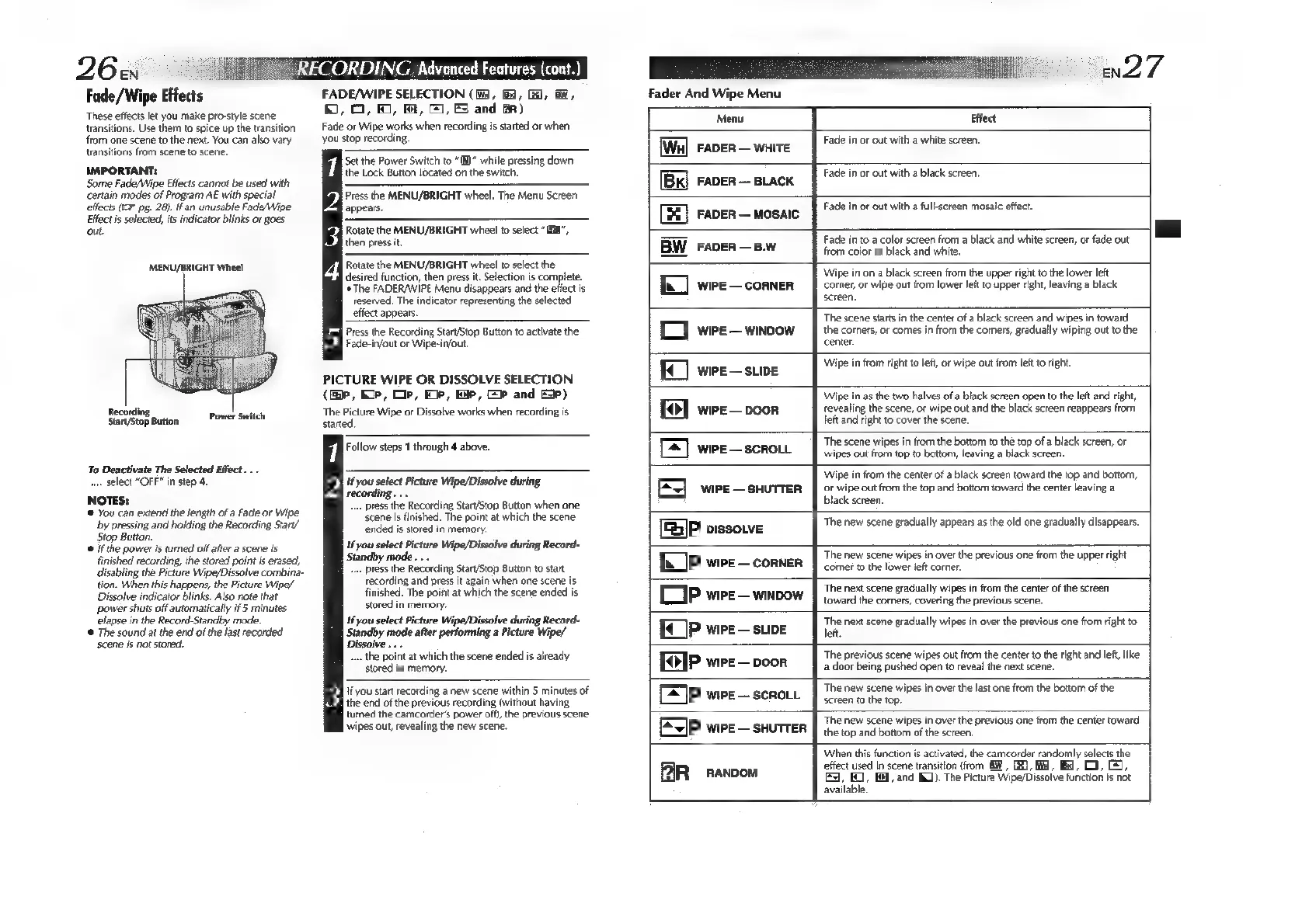

26en
Fade /Wipe Effects :
These effects let you make pro-style scene
transitions, Use them to spice up the transition
from one scene to the next. You can also vary
transitions from scene to scene.
IMPORTANT:
Some Fade/Wipe Effects cannot be used with
‘certain modes of Program AE with special
effects (C7 pg. 28). ifan unusable Fade/Wipe
Effect is selected, its indicator blinks or goes
out
MENU/BRIGHT Wheel
Sare/Sto$ Button
To Deactivate The Selected Effect ...
vu Select “OFF” in step 4.
NOTES:
© You can extend the length of a Fade or Wipe
by pressing and holding the Recording Start/
Stop Button.
© if the power is turned off after a scene is
finished recording, the stored point is erased,
disabling the Picture Wipe/Dissolve combina-
tion. When this happens, the Picture Wipe/
Dissolve indicator blinks. Also note that
power shuts off automatically if 5 minutes
elapse in the Record-Standby mode.
© The sound at the end of the last recorded
scene is not stored.
RECORDING Advanced Features (cont.)
FADE/WIPE SELECTION (i,
0,0, ©, @, @, & and ar)
Fade or Wipe works when recording is started or when
you stop recording,
Gl, a,
Set the Power Switch to “(MH)” while pressing down
the Lock Button located on the switch.
Press the MENU/BRIGHT wheel. The Menu Screen
PA appears.
Rotate the MENU/BRIGHT wheel to select “I
then press it.
Rotate the MENU/BRIGHT wheel to select the
desired function, then press it. Selection is complete.
* The FADER/WIPE Menu disappears and the effect is
reserved. The indicator representing the selected
effect appear
faml Press the Recording Star/Stop Button to activate the
FO) Fade-in/out or Wipe-in/out.
PICTURE WIPE OR DISSOLVE SELECTION
(Gp, Hp, OP, ip, a, Ep and E2P)
The Picture Wipe or Dissolve works when recording is
started,
1 Follow steps 1 through 4 above.
6] If you select Picture Wipe/Dissolve during
4 recor
press the Recording Start/Stop Button when one
scene is finished. The point at which the scene
ended is stored in memory.
If you select Picture Wipe/Dissolve during Record-
‘mode .
vn» press the Recording Star/Stop Button to start
recording and press it again when one scene is
finished. The point at which the scene ended is
stored in memory.
If you select Picture Wipe/Dissolve during Record-
‘Standby mode after performing a Picture Wipe/
Dissolve...
“-» the point at which the scene ended is already
stored in memory.
e277
Fader And Wipe Menu
Menu Effect
FADER — WHITE Fade in or out with a white screen.
FADER — BLACK Fade in or out with a black screen.
FADER — MOSAIC Fade in or out with a full-screen mosaic effect.
FADER —B.W Fade in to a color screen from a black and white screen, or fade out
from color to black and white.
‘WIPE — CORNER
Wipe in on a black screen from the upper right to the lower left
comer, or wipe out from lower left to upper right, leaving a black
screen,
‘WIPE — WINDOW
The scene starts in the center of a black screen and wipes in toward
the corners, or comes in from the corners, gradually wiping out to the
center.
Wipe in from right to leit, or wipe out irom left to right.
WIPE — SLIDE
Wipe in as the two halves of a black screen open to the left and right,
WIPE — DOOR revealing the scene, or wipe out and the black screen reappears from
left and right to cover the scene.
The scene wipes in from the bottom to the top of a black screen, or
WIPE — SCROLL wipes out from top to bottom, leaving a black screen.
Wipe in from the center of a black screen toward the top and bottom,
WIPE — SHUTTER [for wipe out from the top and bottom toward the center leaving a
black screen.
P pissoLve ‘The new scene gradually appears as the old one gradually disappears.
|P wiPE — CORNER
‘The new scene wipes in over the previous one from the upper right
corner to the lower left corner.
P wipe — winpow
The next scene gradually wipes in from the center of the screen
toward the comers, covering the previous scene.
AO) @) 208 A) 0 Oe eee
|P wiPE — sLIDE
The next scene gradually wipes in over the previous one from right to
left.
|P wipe — Door
The previous scene wipes out from the center to the right and left, like
a door being pushed open to reveal the next scene.
BJ | you star recording anew scene within 5 minutes of
28 & the end of the previous recording (without having
turned the camcorder's power off), the previous scene
wipes out, revealing the new scene.
|P wipe — scROLL
The new scene wipes in over the last one from the bottom of the
screen to the top.
|P wire — snuTTeR
‘The new scene wipes in over the previous one from the center toward
the top and bottom of the screen.
PIR Ranpom
When this function is activated, the camcorder randomly selects the
effect used in scene transition (rom BW, 2), i, BY, O, &,
ES, 1, (1, and BX). The Picture Wipe/Dissolve function is not
available.
