EN43

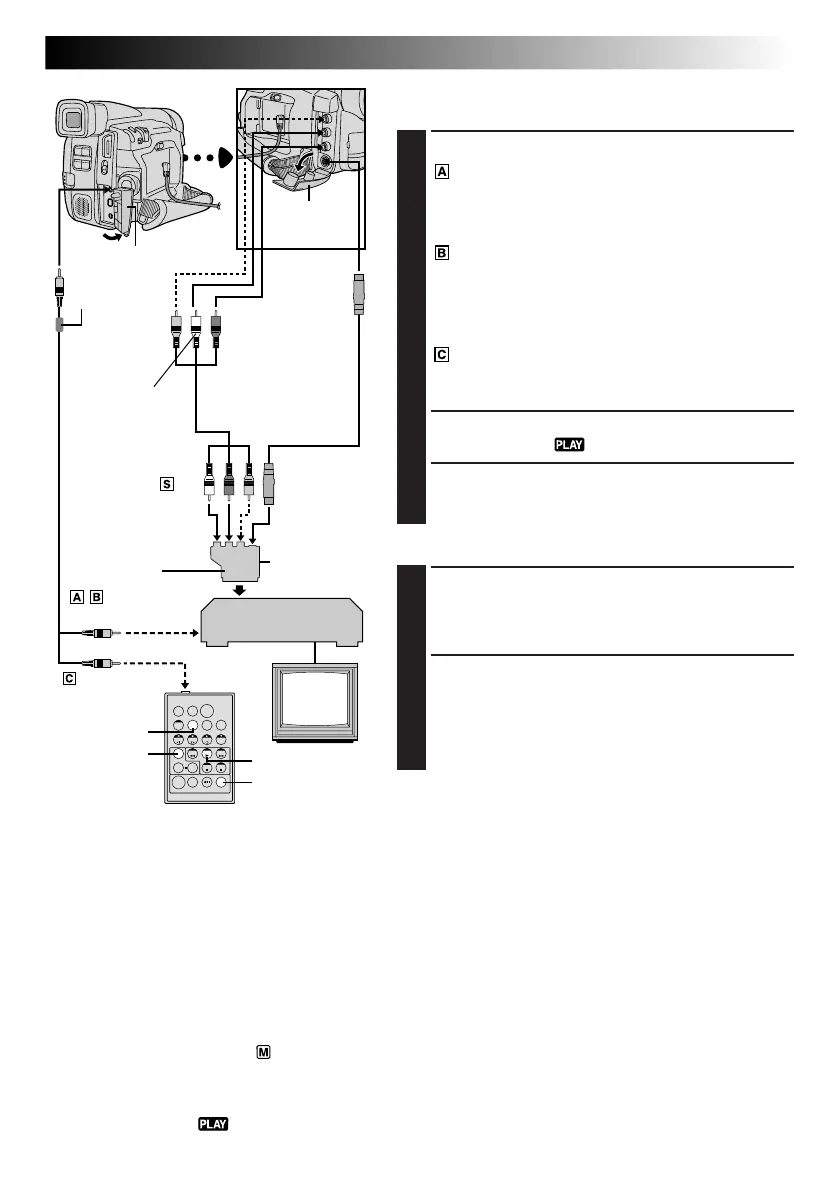

MAKE CONNECTIONS
Also refer to pg. 32 and 33.
1
To connect to:
A JVC VCR equipped with a remote pause
connector . . .
... connect the editing cable to the Remote
PAUSE connector.
A JVC VCR not equipped with a remote
pause connector but equipped with an R.A.
EDIT connector . . .
... connect the editing cable to the R.A.EDIT
connector.
A VCR other than above . . .
... connect the editing cable to the RM-V711U’s
PAUSE IN connector.
2
Insert a recorded tape into the camcorder and set the
Power Switch to “ ”.
3
Turn the VCR power on, insert a recordable tape and
engage the AUX mode (refer to the VCR’s
instructions).
SELECT SCENES
4
Point the remote control at the camcorder’s remote
sensor. Press PLAY (
4
) and then press R.A.EDIT ON/
OFF on the remote control.
The Random Assemble Editing Menu appears.
5
If using a Fade/Wipe at the beginning of the scene,
press FADE/WIPE on the remote control.
•Cycle through the effects by pressing repeatedly,
and stop when the one you want is displayed.
•You cannot use a Picture Wipe/Dissolve at the
beginning of Programme 1.
NOTES:
●
Before Random Assemble Editing, make sure the
indications do not appear on the TV monitor. If they do,
they will be recorded onto the new tape.
●
When editing on a VCR equipped with DV input
connector, the DV cable can be connected instead of
the S-Video cable and Audio/Video cable.
●
Set the video out select switch of the cable adapter as
required:
Y/C : When connecting to a TV or VCR which accepts
Y/C signals and uses an S-Video cable.
CVBS : When connecting to a TV or VCR which does
not accept Y/C signals and uses an audio/video
cable.
CONTINUED ON NEXT PAGE
TW
FADE/WIPE
PLAY
R.A.EDIT
ON/OFF
DISPLAY
To Remote
PAUSE or R.A.EDIT
To
S-Video
Output
To JLIP
RM-V711U
(provided)
VCR
TV
To PAUSE IN
Editing cable
(provided)
Connector
cover**
* Connect when the S-Video cable is not used.
**When connecting cables, open this cover.
Connector cover**
Red to
Audio
Output R
A/V cable (provided)
[RCA plug to RCA plug]
White to
Audio Output L
Yellow to
Video
Output*
If your VCR has the
SCART connector,
use the provided
cable adapter.
S-Video cable
(provided)
“Y/C”/“CVBS”
video out
select switch
To AUDIO,
VIDEO*
and
-IN
connectors
Core filter
To choose whether or not the following
displays appear on the connected TV . . .
•Date/Time
.... set “DISPLAY” to “ON” or “OFF” in the
Playback Menu (Z
pg. 30).
•Time Code
.... set “TIME CODE” to “ON” or “OFF” in
the Playback Menu (Z
pg. 30).
•Playback Sound Mode Display
.... set the Power Switch to “ ”. Press
MENU/BRIGHT and set “ON SCREEN”
in the Date/Time Menu (Z
pg. 18 – 20)
to “ON” or “OFF”. Then, set the Power
Switch back to “ ”.
To Next Page
