12 EN
1
INSERT CHARGED BATTERY
Open the battery cover while pressing the
knob and insert the end of the battery
first. Close the battery cover.
2
ATTACH TO CAMCORDER
Align the connector and screw on the Power
Pack while inserting the camcorder connector.
Turn the spring-loaded screw head at the
Power Pack's bottom inward and turn it
clockwise to attach.
•To detach the Power Pack, turn the screw
counterclockwise.
NOTES:
●
When the battery remaining power indicator
appears as , that means the battery power is
close to nil. When the battery power is exhausted,
power turns off automatically.
●
Each time you start shooting, the camcorder
chooses the battery pack that has more remaining
power, and uses that as the power supply. That
means both battery packs will be exhausted at
roughly the same time.
GETTING STARTED
(Cont.)
1

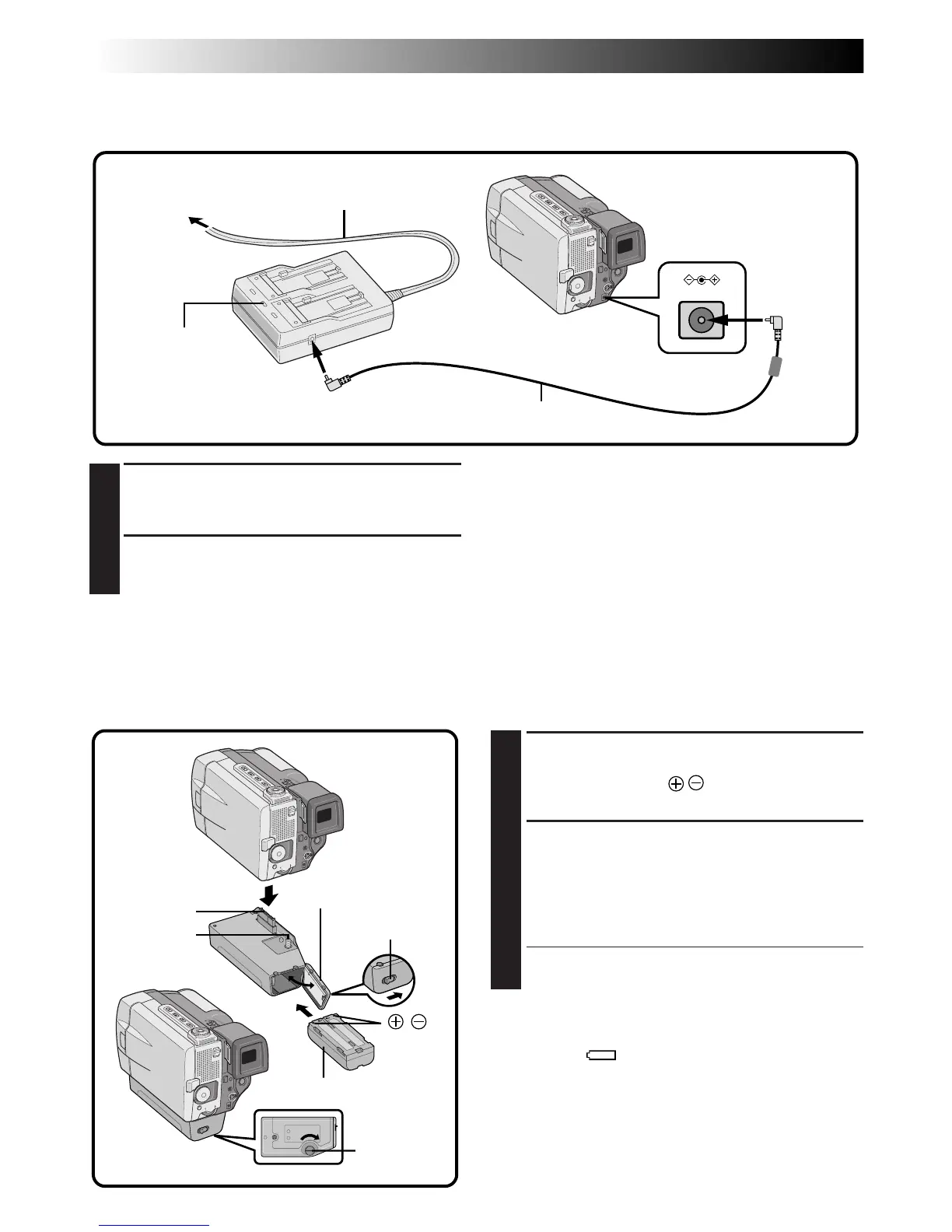

SUPPLY POWER TO ADAPTER
Plug the AC Adapter/Charger’s power cord in
to an AC outlet.
2
SUPPLY POWER TO CAMCORDER
Connect the AC Adapter to the camcorder.
Indoor Use
When using the camcorder indoors, you can use the AC Adapter instead of a battery.
S
S
DC-IN
Power lamp
When power is
supplied, the
power lamp lights.
AC Power
Adapter/Charger
Connector is
under the cover
Connector
To AC outlet
Power cord
DC cord
Core
Filter
Knob
Battery cover
Screw
Using The Power Pack
For extended use, prepare the Power Pack (included in the optional Power Pack Kit VU-P810K1U or VU-
P810K2U), which can be loaded with one battery pack. This Power Pack can be used together with the
battery installed in the camcorder.
NOTE:
When using the provided DC cord, make sure you
connect the end of the cable with the core filter to
the camcorder. The core filter improves perform-
ance of equipment.
Screw head
To DC OUT jack
Battery
Mark
To Next Page
