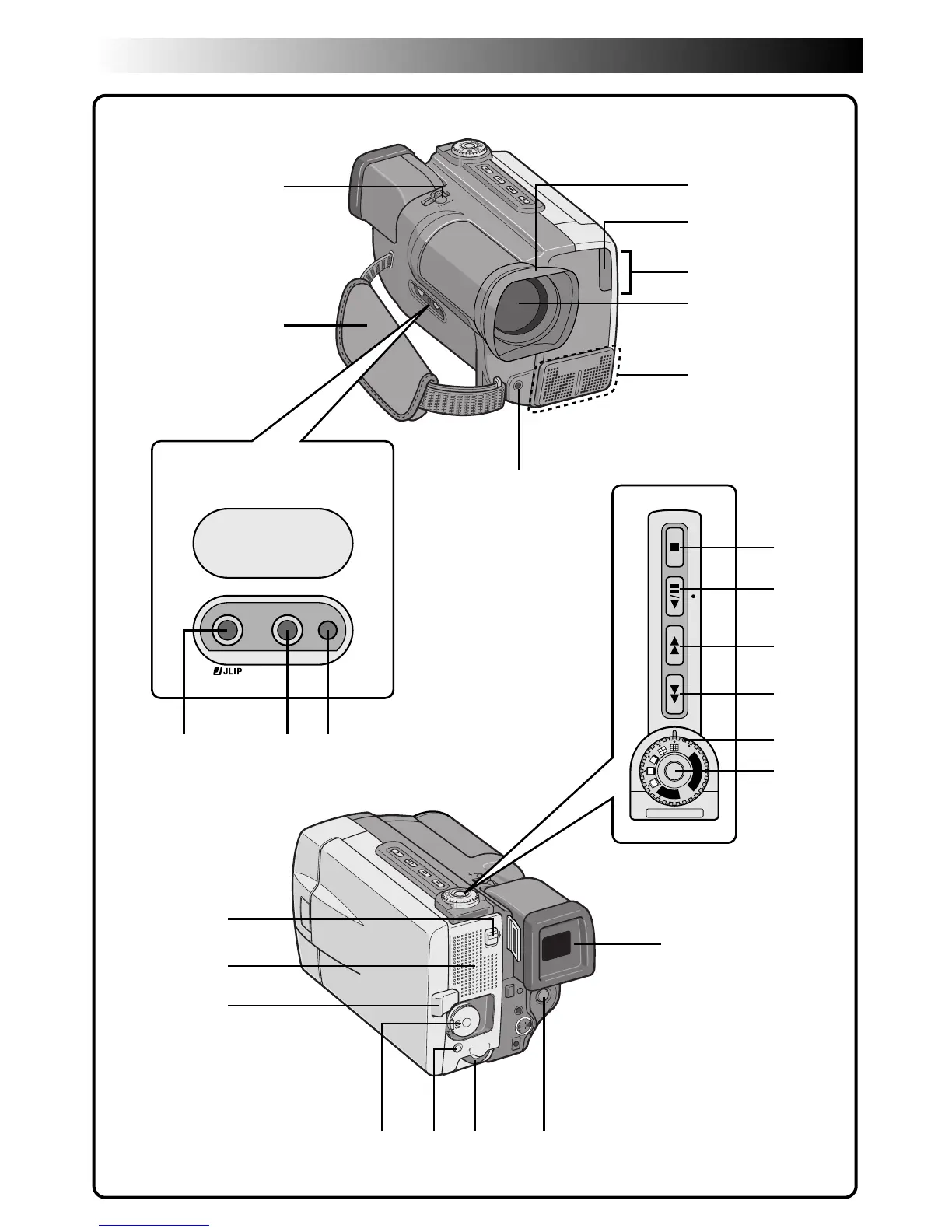

t LCD monitor (Z pg. 22)
The image appears during recording or play-
back.
y Cassette cover (Z pg. 12)
u DV OUT connector (Z pg. 58, 59, 61)
Connect to a video unit equipped with a DV
connector.
i Video/audio output connector or head-
phones connector (
/AV-OUT)
(
Z pg. 56, 68)
The provided VIDEO/AUDIO cable (ø3.5) can
be connected to a television etc. Using optional
headphones, you can listen to the sound.
However, headphones equipped with volume
control cannot be used.
o DC IN jack (Z pg. 10)
The DC cord of an AC Power Adapter can be
connected.
p S OUT (S2 OUT) connector
(
Z pg. 56, 63)
Connect to a video unit equipped with an
S-Video connector.
Q Battery cover (Z pg. 9)
Open the battery cover to insert the battery.
W Battery cover open switch (BATTERY)
(
Z pg. 9)
Slide in the direction of the arrow to open the
battery cover.
E Power Pack (MULTI) connector
(
Z pg. 10)
Attach to the Power Pack (optional).
R Tripod mounting socket (Z pg. 14)
Bottom of the
camcorder
Connector cover
Pull this out to
open.
CONTROLS, INDICATIONS AND CONNECTORS
(Cont.)
