5.4 ELECTRONIC VIEWFINDER ASSEMBLY <M4>
--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
305B LY30029-034A SCREW,X2
306 PTY31749-015 LEVER(VF)
307 LY30018-037A SCREW
308 LY30018-019A SCREW
309 LY30018-055A SCREW,X2
310 PTY32149-051 HOLDER(LCD)
311 PTY32149-081 SCREW
312 QLD0117-001 LCD MODULE
313 PTY32148-061 B/L SUB ASSY
314 PTY32148-071 FFC
******************************

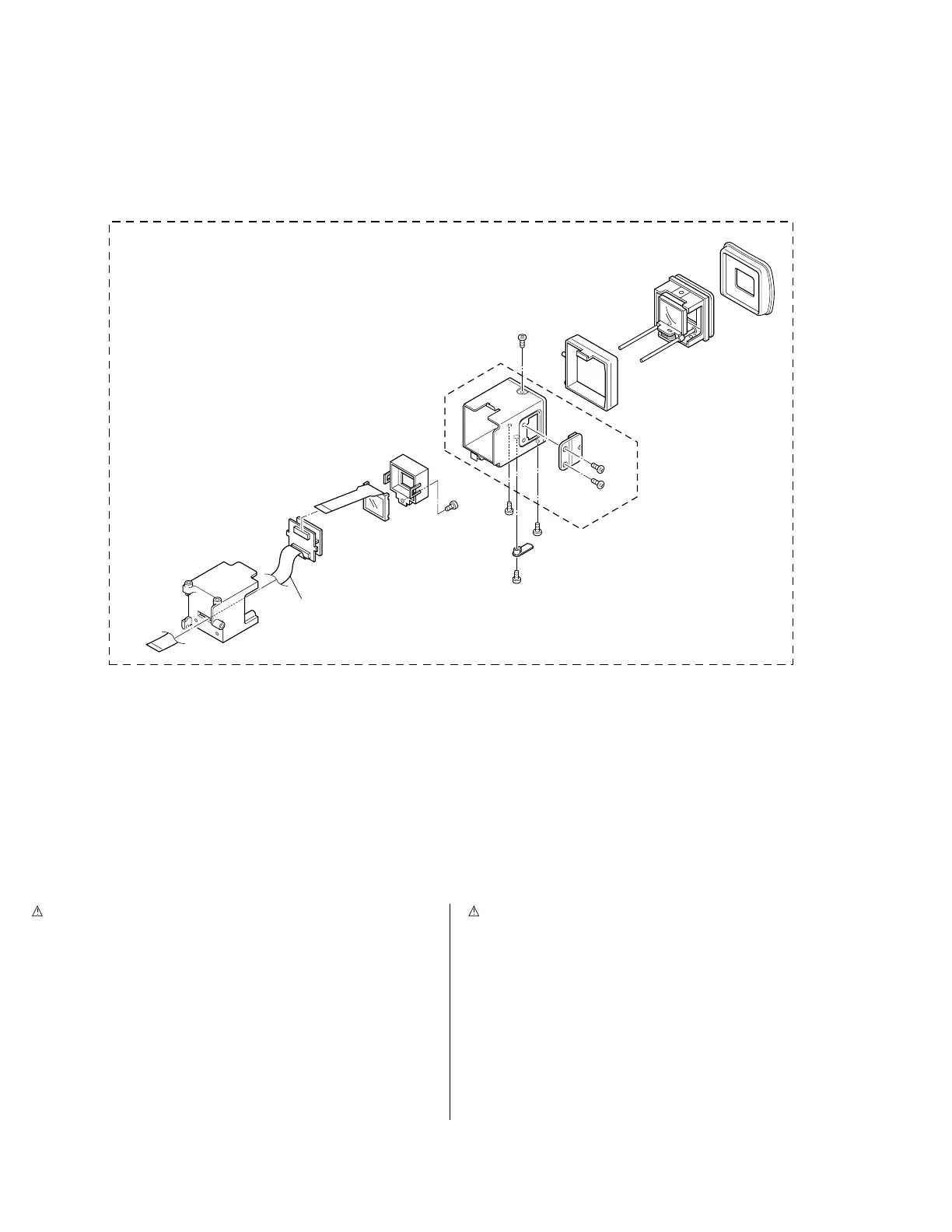

ELECTRONIC VIEWFINDER ASSEMBLY <M4>
300 LY32148-001A VF UNIT
301 PTY32149-001 EYE CUP
302 PTY32149-021 FRAME(VF)
303 PTY32149-041 EYE PIECE SUB ASSY
304 PTY32148-031 GUIDE(VF)
305 PTY32148-011 CASE/CAP ASSY
305A PTY32149-012 CAP(VF)
305B
305B
301
304
305
308
305A
306
307
309
309
303
300
311
310
312
313
302
314
