JVC GR-DVM55 Service Manual

5-9

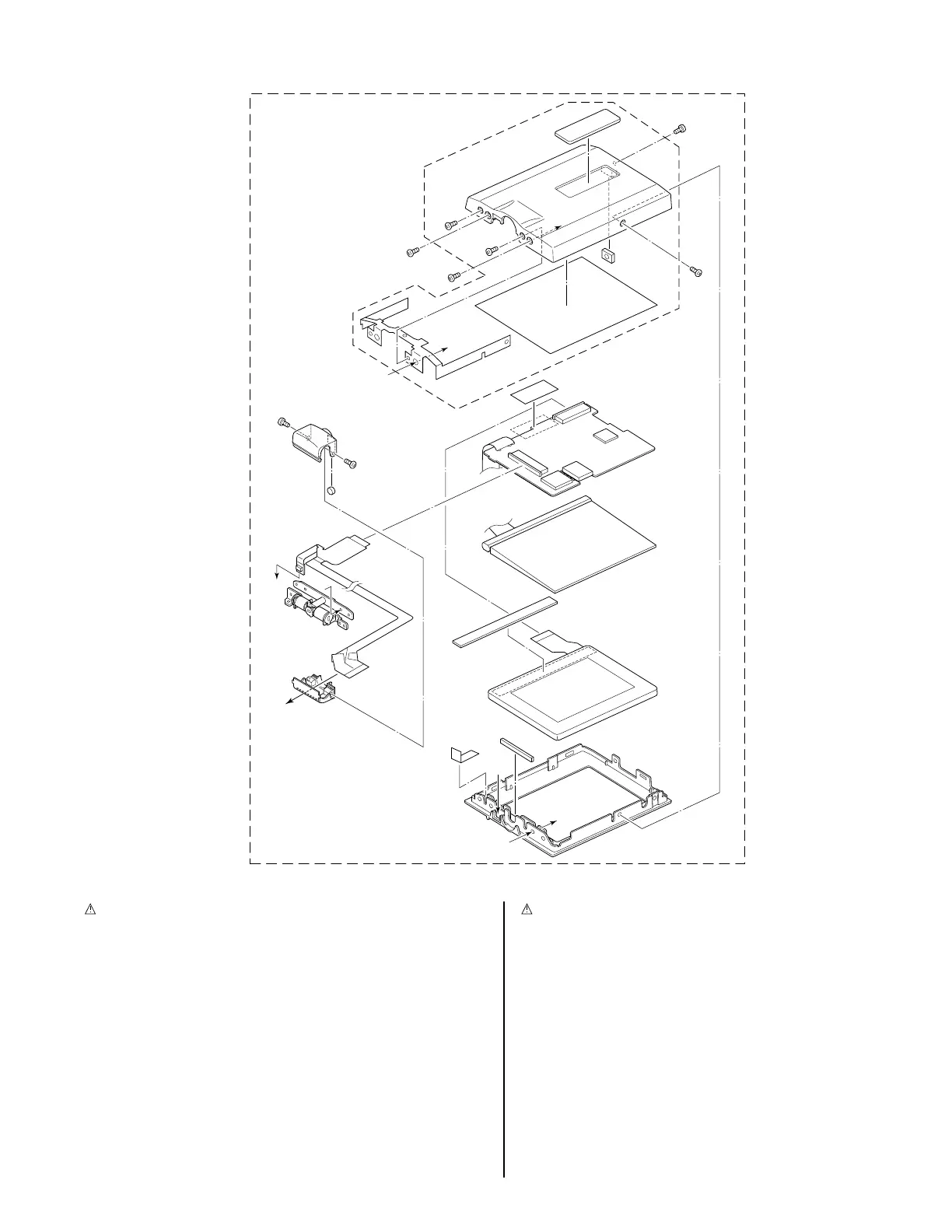

5.5 MONITOR ASSEMBLY <M5>
******************************
MONITOR ASSEMBLY <M5>
! 500 LYH20260-003A MONITOR ASSY,A,B
! LYH20260-005A MONITOR ASSY,C,D,E
501 LY20584-004A MONITOR CASE
502 LY30029-046B SPACER(A)
503 LY30029-0G5A SPACER(A)
! 504 LY20734-001A MONITOR COVER ASSY,C,D,E
! LY20734-002A MONITOR COVER ASSY,A,B
504A LY31699-001A BRACKET(MONITOR)
504B LY40162-001A BKT
504C QYSPSPT1720R SCREW,X2
504D LY30029-047A SPACER(A)
--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
504E LY42162-001A MARK
505 LY31701-001C HINGE ASSY
506 LY32147-001A HINGE COVER(U)
507 LY40663-002A MAGNET
508 LY32171-001A HINGE COVER(L)
509 QLD0138-001 LCD MODULE
510 QLL0087-001 BACK LIGHT
511 LY32190-001A FPC ASSY(MONI)
512 LY30018-0B1A SPECIAL SCREW,X2
513 QYSPSPT1730R SCREW
514 LY30018-060A SPECIAL SCREW,X2
515 QYSPSPT1735R SCREW
516 LY30029-076A SPACER(A)
517 LY30029-093A SPACER(A)
504B
504C
512
512
504C
a
515
513
510
517
509
501
502
503
a
d
b
516
514
506
507
511
508
505
514
504E
504
500
504D
504A
MONITOR
<04>
b
c
c
d
