EN43

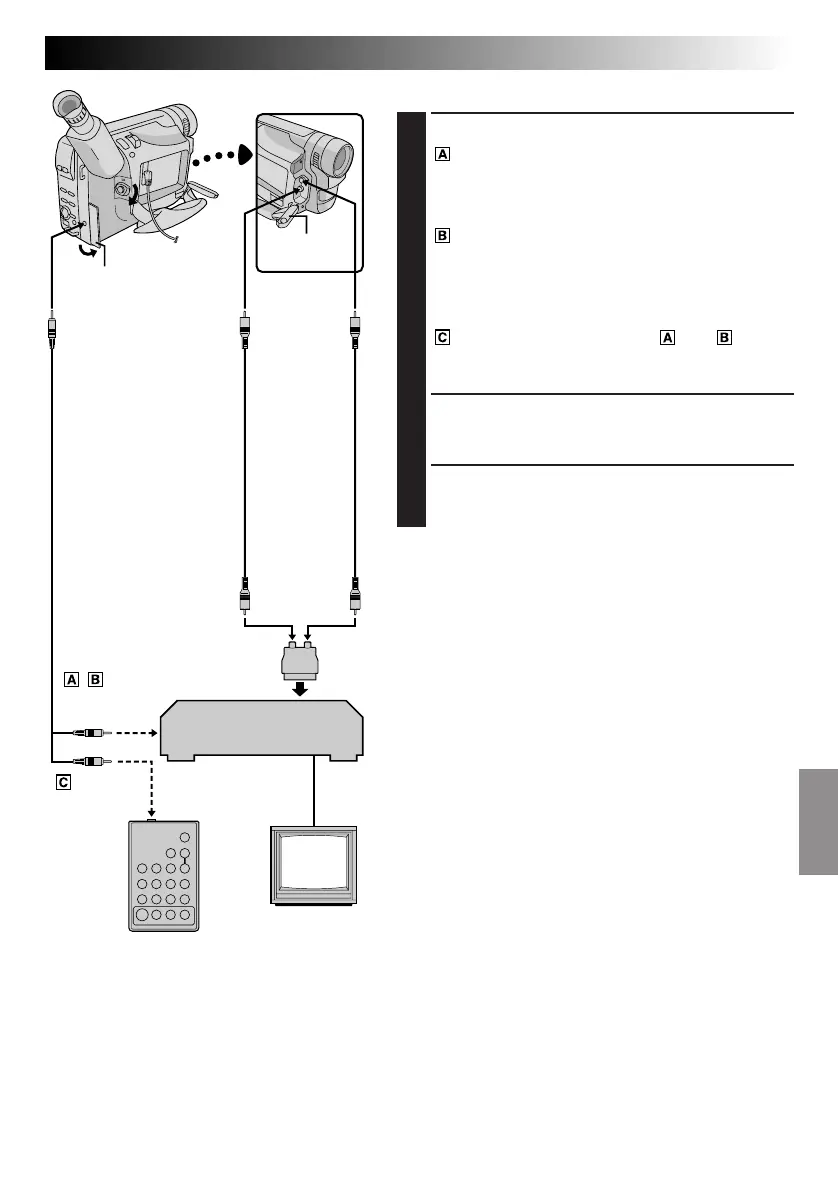

MAKE CONNECTIONS
1
CONNECT TO . . .
JVC VCR EQUIPPED WITH REMOTE
PAUSE TERMINAL
Connect the editing cable to the Remote PAUSE
terminal.
JVC VCR NOT EQUIPPED WITH REMOTE
PAUSE TERMINAL BUT EQUIPPED WITH
R.A. EDIT CONNECTOR
Connect the editing cable to the R.A.EDIT
connector.
VCR OTHER THAN TYPE OR
Connect the editing cable to the RM-V700U’s
PAUSE-IN connector.
2
PREPARE CAMCORDER
Insert a recorded tape. Set the System Select Switch to
“VIDEO”, and set the Power Switch to “PLAY”.
3
PREPARE VCR
Turn the power on, insert a recordable tape and
engage the AUX mode (refer to the VCR’s instructions).
CONTINUED ON NEXT PAGE
Open the cover.
To Audio
Output
To Remote
PAUSE
To J terminal
(JLIP)
RM-V700U
(optional)
VCR
TV
Audio cable
(optional)
If your TV/VCR has the
SCART connector, use the
provided cable adapter.
To PAUSE-IN
To Video
Output
Video cable
(optional)
To AUDIO
and VIDEO IN
connectors
Open
the cover.
Editing cable
(optional, ø3.5
mini-plug cable)
