JVC GX-N7E

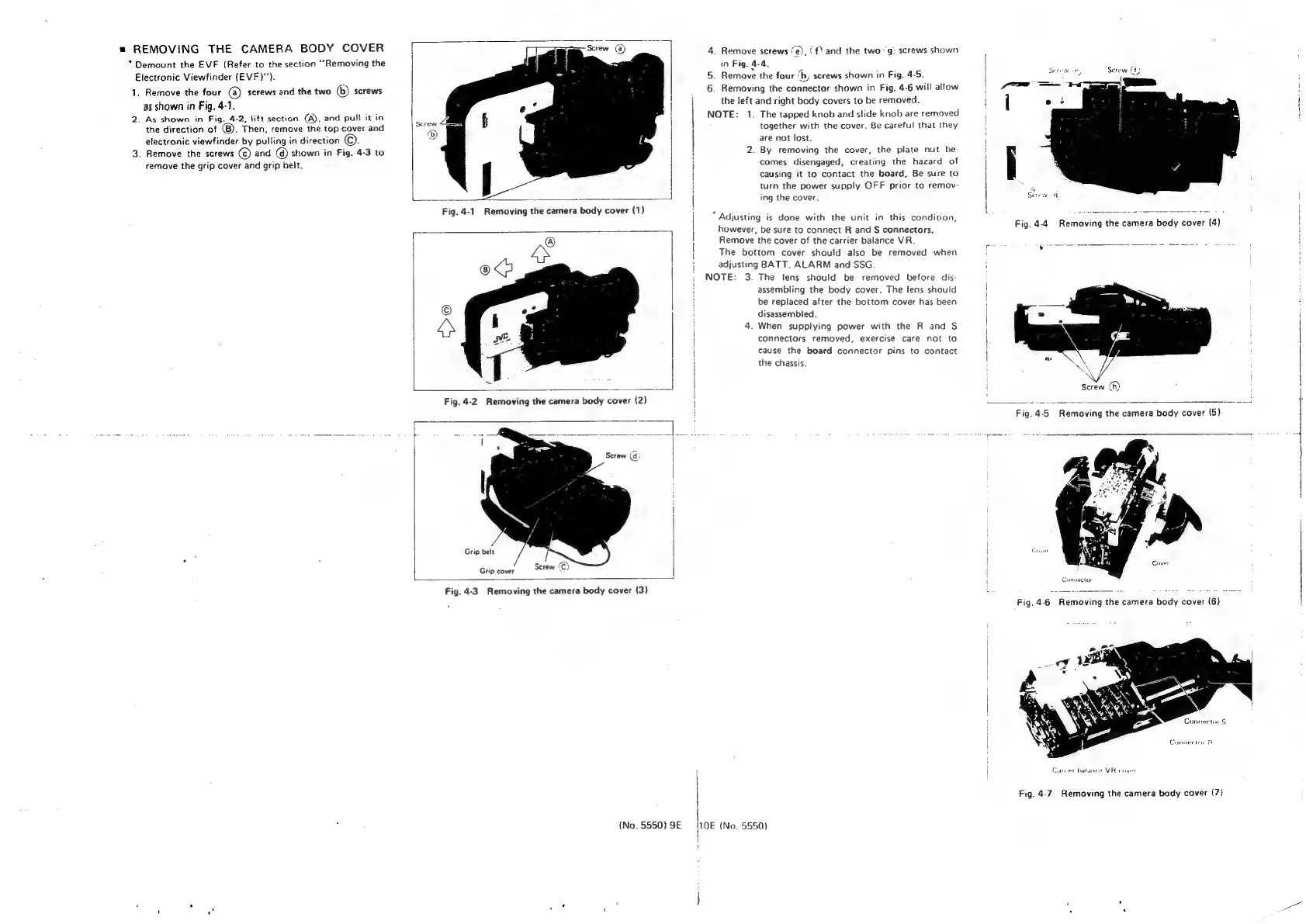

= REMOVING THE CAMERA BODY COVER
*Demount the EVF (Refer to the section ‘‘Removing the
Electronic Viewfinder (EVF)”).
1. Remove the four @ screws and the two ® screws
as shown in Fig. 4-1.
2. As shown in Fig. 4-2, tift section (A), and pull it in
the direction of ®. Then, remove the top cover and
electronic viewfinder by pulling in direction ©.
3. Remove the screws (c) and (d) shown in Fig. 4-3 to
remove the grip cover and grip belt.
Fig. 4-1 Removing the camera body cover {1)
Screw (4;
Grip bett
pe
Grid. cover Screw ‘C}
Fig. 4-3. Removing the camera body cover (3)
(No. 5550) 9E
4. Remove screws ‘e), {f) and the two “g: screws shown
In Fig. 4-4.
5. Remove the four ty screws shown in Fig. 4-5.
6. Removing the connector shown in Fig. 4-6 will allow
the left and right body covers to be removed.
NOTE: 1. The tapped knob and slide knob are removed
together with the cover. Be careful that they
are not lost.
2. By removing the cover, the plate nut be-
comes disengaged, creating the hazard of
Causing it to contact the board, Be sure to
turn the power supply OFF prior to remov-
ing the cover.
* Adjusting is done with the unit in this condition,
however, be sure to connect R and § connectors.
Remove the cover of the carrier balance VR.
The bottom cover should also be removed when
adjusting BATT. ALARM and SSG.
NOTE: 3. The fens should be removed before dis-
Hl assembling the body cover. The tens should
be replaced after the bottom cover has been
disassembled.
4. When supplying power with the R and S
connectors removed, exercise care not to
cause the board connector pins to contact
the chassis.
|
|
|
:
10E (No. 5550)
‘
1
i
Seow
x
Screw
Fig. 4-4 Removing the camera body cover (4)
pn i ee
Screw (h)
Fig. 4-5 Removing the camera body cover (5}
Connector §
Connection F
Carer balance VR cover
Fig. 4-7 Removing the camera body cover (7}
