JVC HX-GX7

1-34 (No.MB161)
3.4 Speaker section

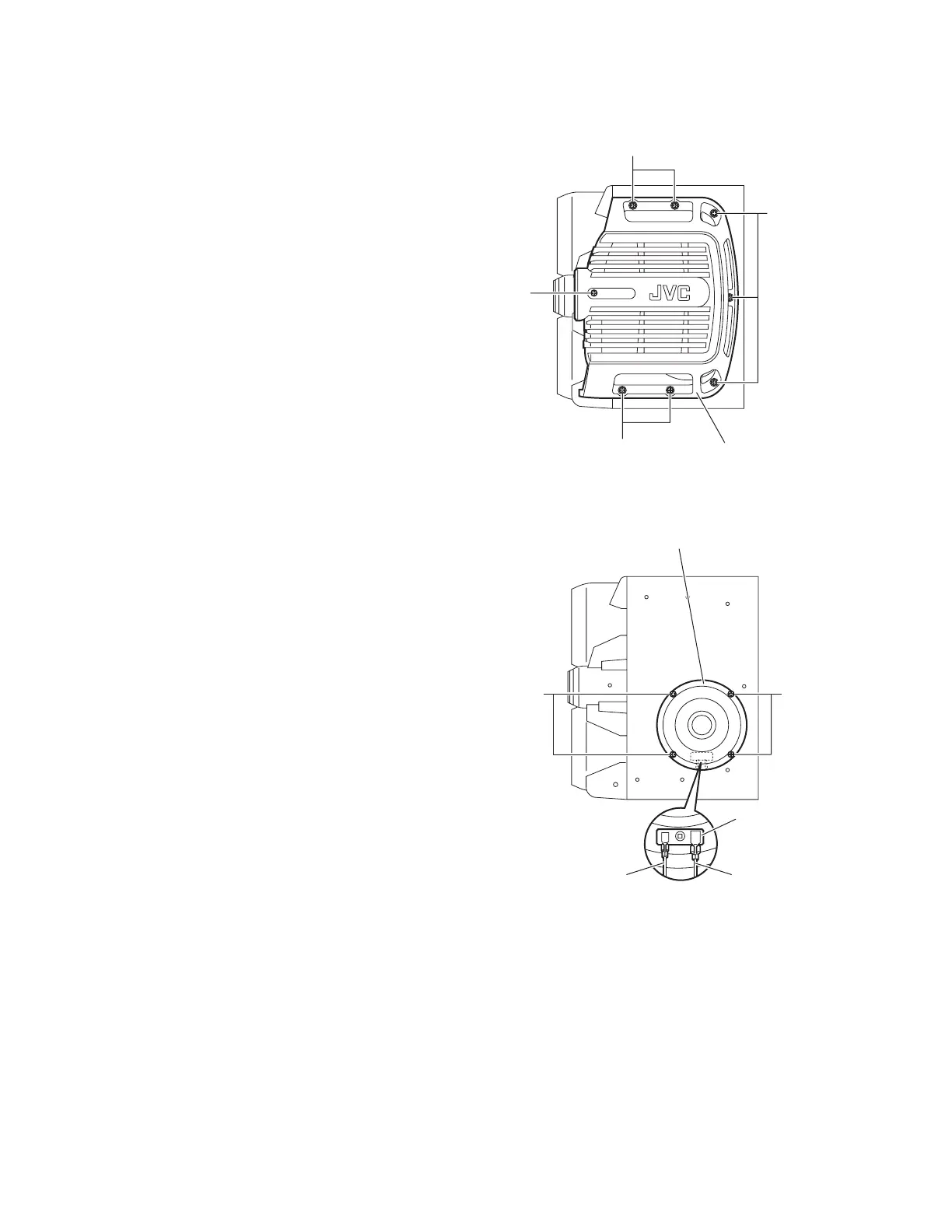

3.4.1 Removing the side panel assembly
(See Fig.1)
(1) From the side of the speaker main body, remove the seven
screws A and screw B attaching the side panel assembly .
Fig.1
3.4.2 Removing the subwoofer
(See Fig.2)
• Prior to performing the following procedures, remove the side
panel assembly.
(1) Remove the four screws C attaching the subwoofer.
(2) From the back side of the subwoofer, disconnect the red
and black wires from the terminal.
Fig.2
Side panel assembly
A
A
A
B
Subwoofer
CC
Black wire
Terminal
Red wire
