JVC HX-GX7 Service Manual

1-36 (No.MB161)

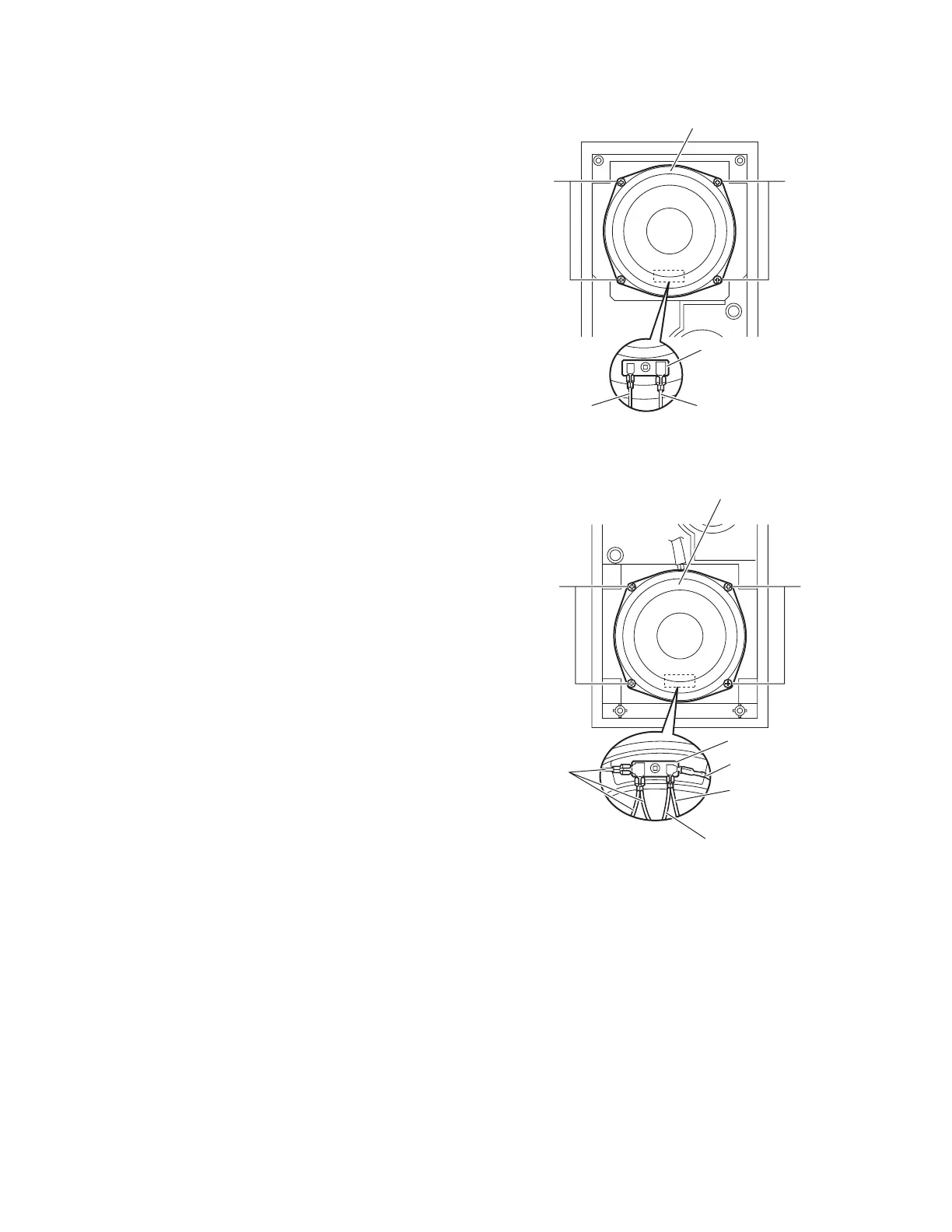

3.4.5 Removing the top woofer
(See Fig.5)
• Prior to performing the following procedures, remove the side
panel and front panel assemblies.
(1) Remove the four screws F attaching the top woofer.
(2) From the back side of the top woofer, disconnect the red
and black wires from the terminal.
Fig.5
3.4.6 Removing the bottom woofer
(See Fig.6)
• Prior to performing the following procedures, remove the side
panel and front panel assemblies.
(1) Remove the four screws G attaching the bottom woofer.
(2) From the back side of the bottom woofer, disconnect the
black, red and blue wires from the terminal respectively.
Fig.6
FF
Black wire
Terminal
Top woofer
Red wire
GG
Blue wire
Black wire
Terminal
Red wire
Black wire
Bottom woofer
