Remove the two screws A on both sides of the body
and detach the top cover upward.
Remove the two screws B and the two screws C
attaching the voice board.
Remove upward the bushing attaching the cord.
Remove the main board from the base chassis while
detaching the pin jack.
Disconnect the sub board from connector CN851 on
the main board.
Disconnect the harness from connector CN852 on
the main board. Then disconnect the cord from the
main board.
1.
2.
3.
4.

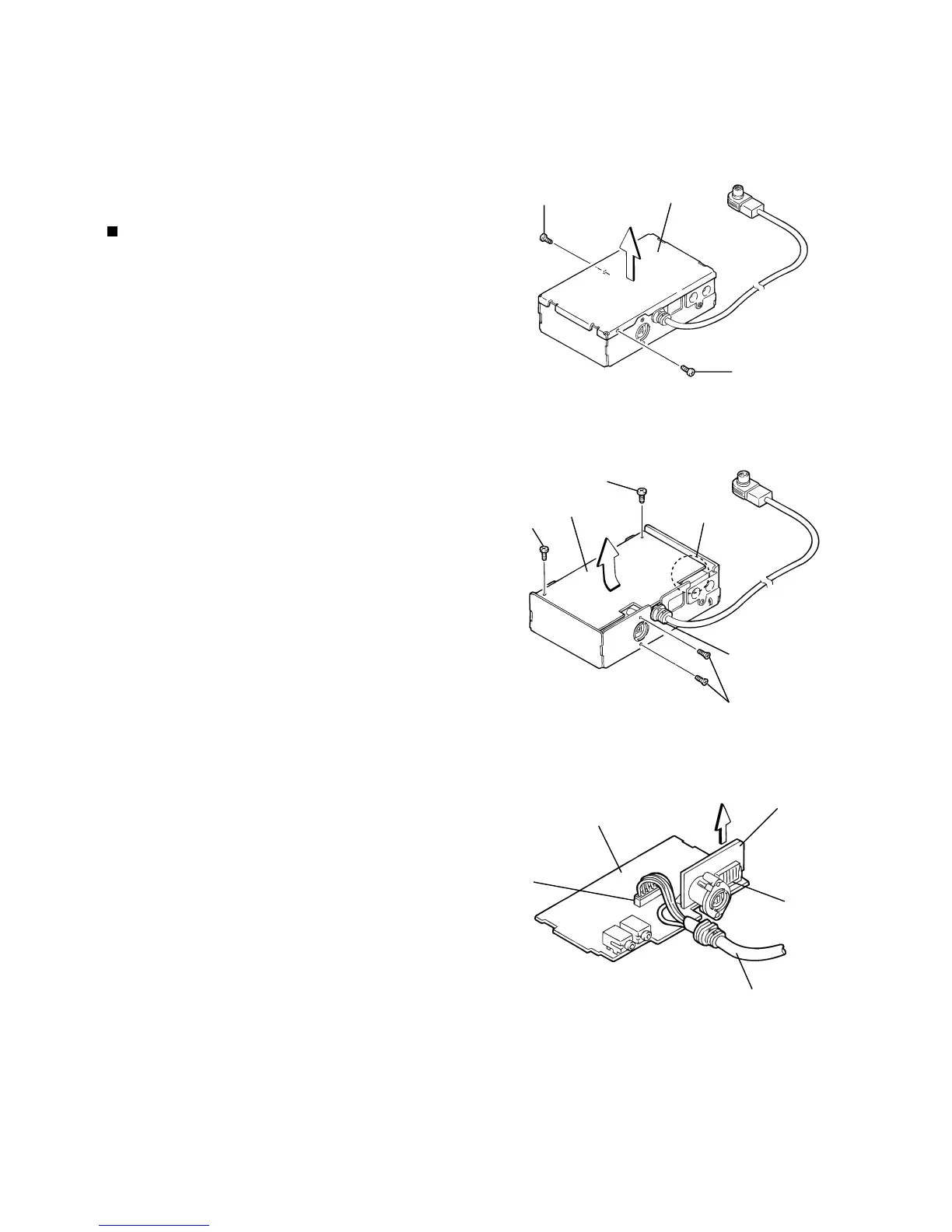

Disassembly method
<Voice unit>
Removing the voice recorder
(See Fig.1 to 3)
Fig.1
Fig.2
Fig.3
A
A
Top cover
B
B
Bushing
C
Pin jack
Voice board
Voice board
Sub board
CN852
CN851
Cord
To Next Page
