JVC In-Dash DVD Player KD-LX50R Service Manual

Prior to performing the following procedure, remove
the top chassis.
Disconnect the flexible harness from connector
CN701, the card wire from CN702 on the main board
and the harness from CN503 and CN504
respectively.
Remove the three screws H attaching the main
board assembly to the bottom cover on the upper
side of the body.
Remove the screw I attaching the rear panel and the
bottom cover on the back of the body. Move the
main board in the direction of the arrow and release
the two joints a. (At this point, the main board can be
removed with the rear panel and the rear heat sink.)
Remove the screw J and the two screws K
attaching the rear heat sink on the back of the body.
Remove the three screws L and the screw M
attaching the rear panel. Now, the main board
assembly will be removed.
1.
2.
3.
4.
5.

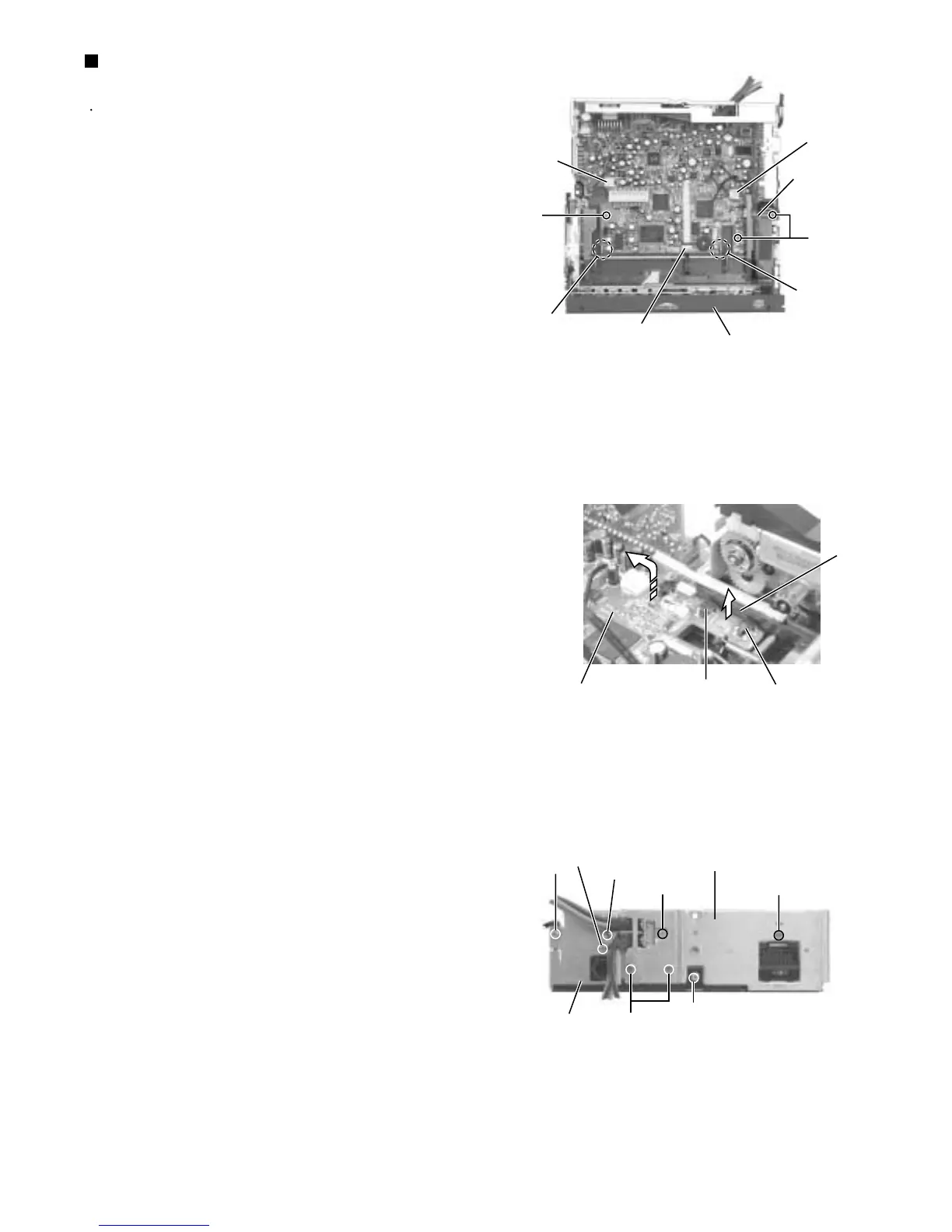

Removing the main board assembly
(See Fig.6 and 7)
when reassembling, correctly engage
the switch S561 and S562 on the main
board with the part e of the operation
assembly (Refer to Fig.6-2,17 and 18).
ATTENTION:
Fig.6-1
Fig.7
Fig.6-2
H
CN504
CN701
Front panel assembly
CN702
CN503
H
S652
Main board
S651
J
I
K
L
M
Rear panel
Rear heat sink
L
Joint a
Joint a
e
L
