Setting up your TV
Caution
• Turn off all the equipment including the TV before connecting anything.

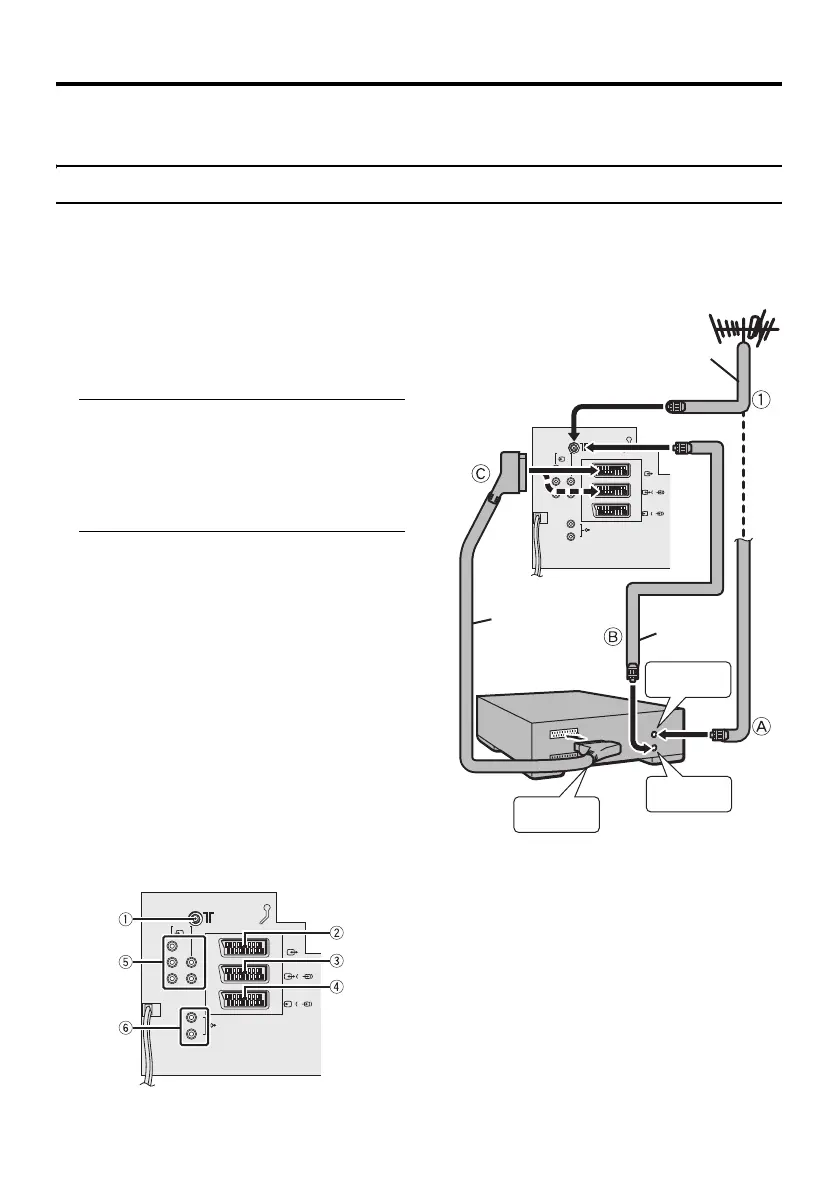

Connecting the aerial and video cassette recorder (VCR)
• The connecting cables are not provided.
• For further details, refer to the manuals provided with the devices to be connected.
If you are connecting a VCR,
follow A → B → C in the diagram
opposite.
If you are not connecting a VCR,
follow 1.
To use the T-V LINK functions, you must
have a T-V LINK compatible VCR
connected by a SCART cable C to the EXT-
2 terminal on the TV. For details about T-V
LINK functions, see “T-V LINK functions”
on page 10.
• You can watch a video using the VCR
without doing C. For details, see your
VCR instruction manual.
• To connect more equipment, please see
“Connecting external equipment” on
page 42.
• To connect additional audio equipment,
see “Connecting speakers/amplifier” on
page 43.
• If you connect a decoder to a T-V LINK
compatible VCR, set the DECODER
(EXT-2) function to ON. For details, see
“DECODER (EXT-2)” on page 37.
Otherwise, you will not be able to watch
scrambled channels.
Rear Panel
1 Aerial socket (page 5)
2 EXT-1 terminal (pages 5, 39, 42)
3 EXT-2 terminal (pages 5, 10, 39, 42)
4 EXT-3 terminal (pages 39, 42)
5 EXT-4 terminal (pages 39, 42)
6 AUDIO OUT terminal (page 43)
EXT-1
EXT-
4
EXT-2
S
EXT-3
S
AUDIO OUT
L
Pr
Pb
R
L
Y
R
75-ohm
Coaxial
Cable
21-pin
SCART
Cable
Back of the TV
75-ohm
Coaxial
Cable
AV IN/OUT
Terminal
To Aerial
Output
To Aerial
Input
VCR
Aerial
For example
EXT-1
EXT- 4
EXT-2
S
EXT-3
S
AUDIO OUT
L
Pr
Pb
R
L
Y
R
