EXTERNAL DEVICES

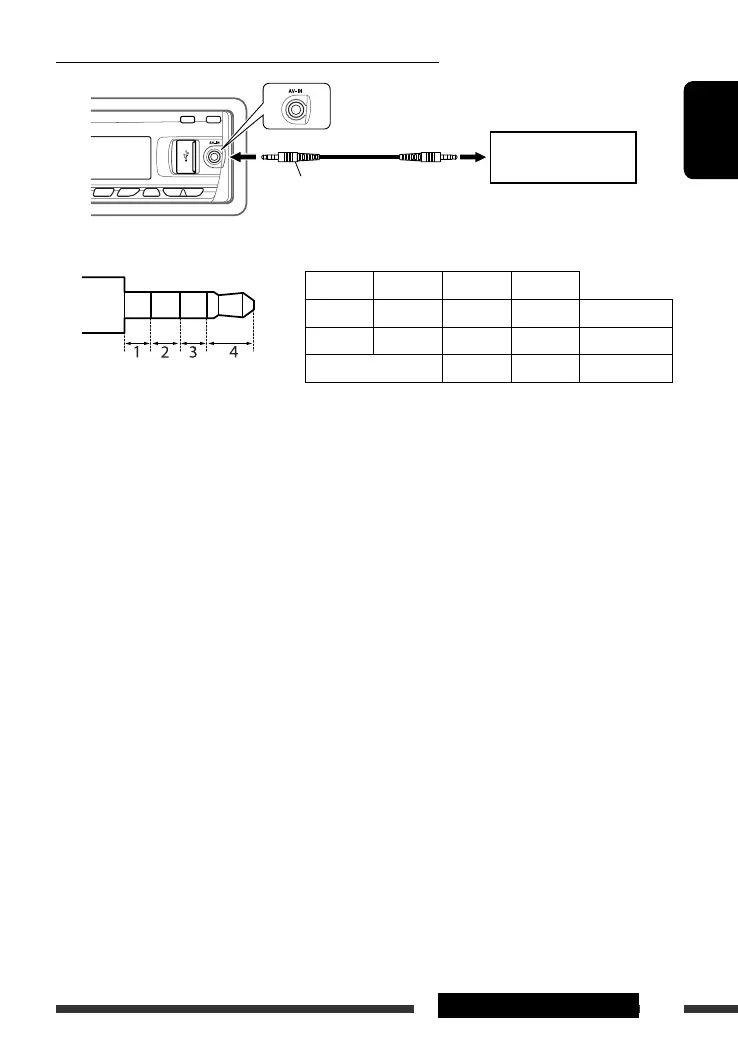

Connecting an external component to the AV-IN input jack
* Portable Video/Audio player of this pin-allocation can be connected:
Portable Video/Audio
player *
AV mini plug cable (supplied)
1234
Audio (R) GND Video Audio (L) Camcorder
Video GND Audio (R) Audio (L) iPod, etc.
GND Audio (R) Audio (L) AUX
