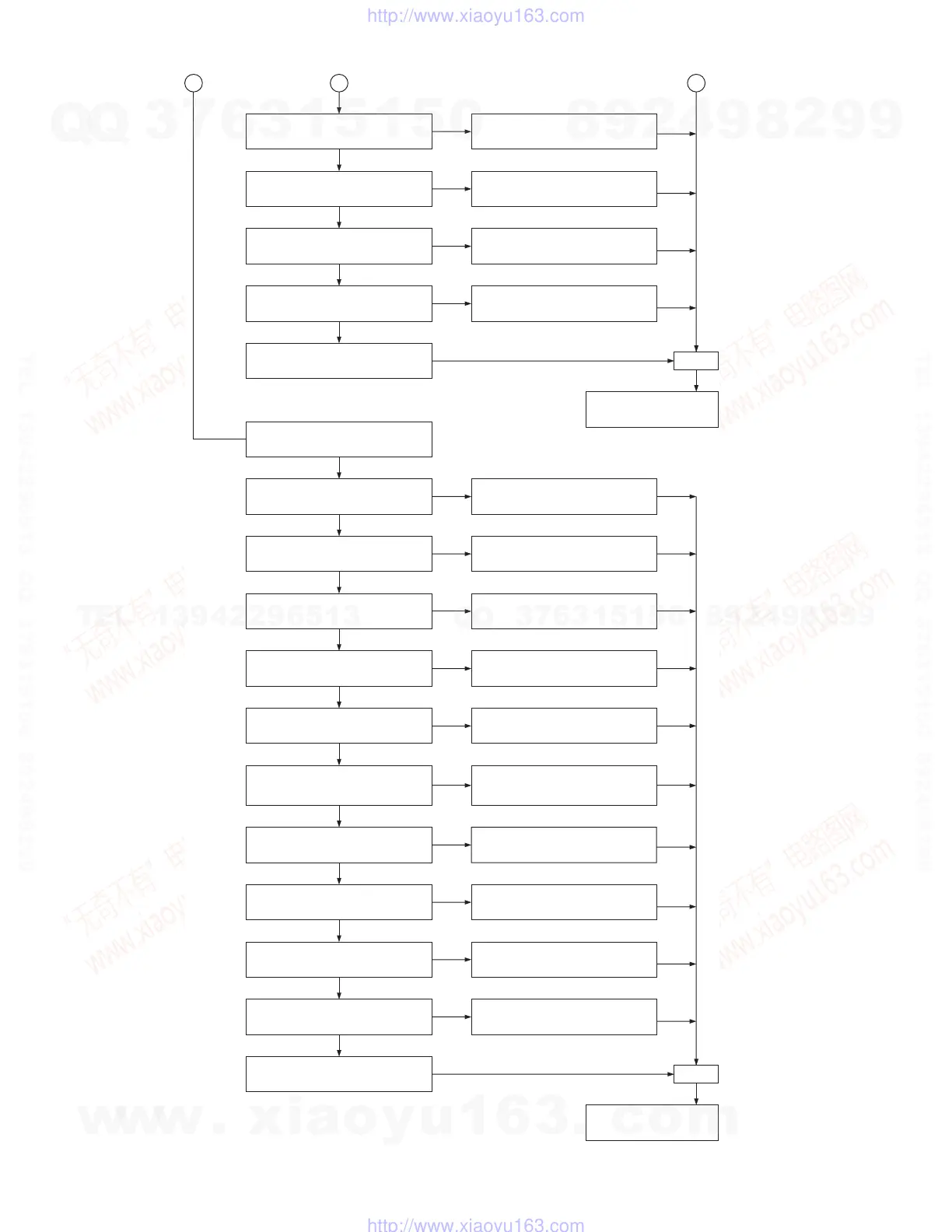

MANUAL ADJUSTMENT
MANUAL ADJUSTMENT
G H
7.FM IF COUNTER
97.9MHz 7 0dBuV 0%
7.FM COUNTER
97.9MHz 7 0dBuV 0%
Adjustment NG or No Signal
8.AM S.METER
999kHz 26 dBuV 0%
8.AM S.METER
999kHz 26 dBuV 0%
High or Low or No Signal
9.AM S.METER
999kHz 56 dBuV 0%
9.AM S.METER
999kHz 56 dBuV 0%
High or Low or No Signal
10.AM IF COUNTER
999kHz 56 dBuV 0%
10.AM IF COUNTER
999kHz 56 dBuV 0%
Adjustment NG or No Signal
AUTO ADJUSTMENT
COMPLETED
POWER
J
POWER OFF
(ADJUSTMENT MODE FINISH)
1.FM DAA
87.5MHz 40dBuV 0%
1.FM DAA
87.5MHz 40dBuV 0%
No Signal
2.FM DAA
97.9MHz 40dBuV 0%
2.FM DAA
97.9MHz 40dBuV 0%
No Signal
3.FM DAA
108.0MHz 40dBuV 0%
3.FM DAA
108.0MHz 40dBuV 0%
No Signal
4.FM S.MATER
97.9MHz 40dBuV 0%
4.FM S.MATER
97.9MHz 40dBuV 0%
High or Low or No Signal
5.FM S.MATER
97.9MHz 7 0dBuV 0%
5.FM S.MATER
97.9MHz 7 0dBuV 0%
High or Low or No Signal
6.FM FULL SEPARATION
97.9MHz 7 0dBuV 0%
Lch 40MHzmod 1kHz
6.FM FULL SEPARATION
97.9MHz 7 0dBuV 0%
Adjustment NG or No Signal
7.FM IF COUNTER
97.9MHz 7 0dBuV 0%
7.FM COUNTER
97.9MHz 7 0dBuV 0%
Adjustment NG or No Signal
8.AM S.METER
999kHz 26 dBuV 0%
8.AM S.METER
999kHz 26 dBuV 0%
High or Low or No Signal
9.AM S.METER
999kHz 56 dBuV 0%
9.AM S.METER
999kHz 56 dBuV 0%
High or Low or No Signal
10.AM IF COUNTER
999kHz 56 dBuV 0%
10.AM IF COUNTER
999kHz 56 dBuV 0%
Adjustment NG or No Signal
MANUAL ADJUSTMENT
COMPLETED
POWER
POWER OFF
(ADJUSTMENT MODE FINISH)
Press OK
Press OK
Press OK
Press OK
Press OK
Press OK
Press OK
Press OK
Press OK
Press OK
