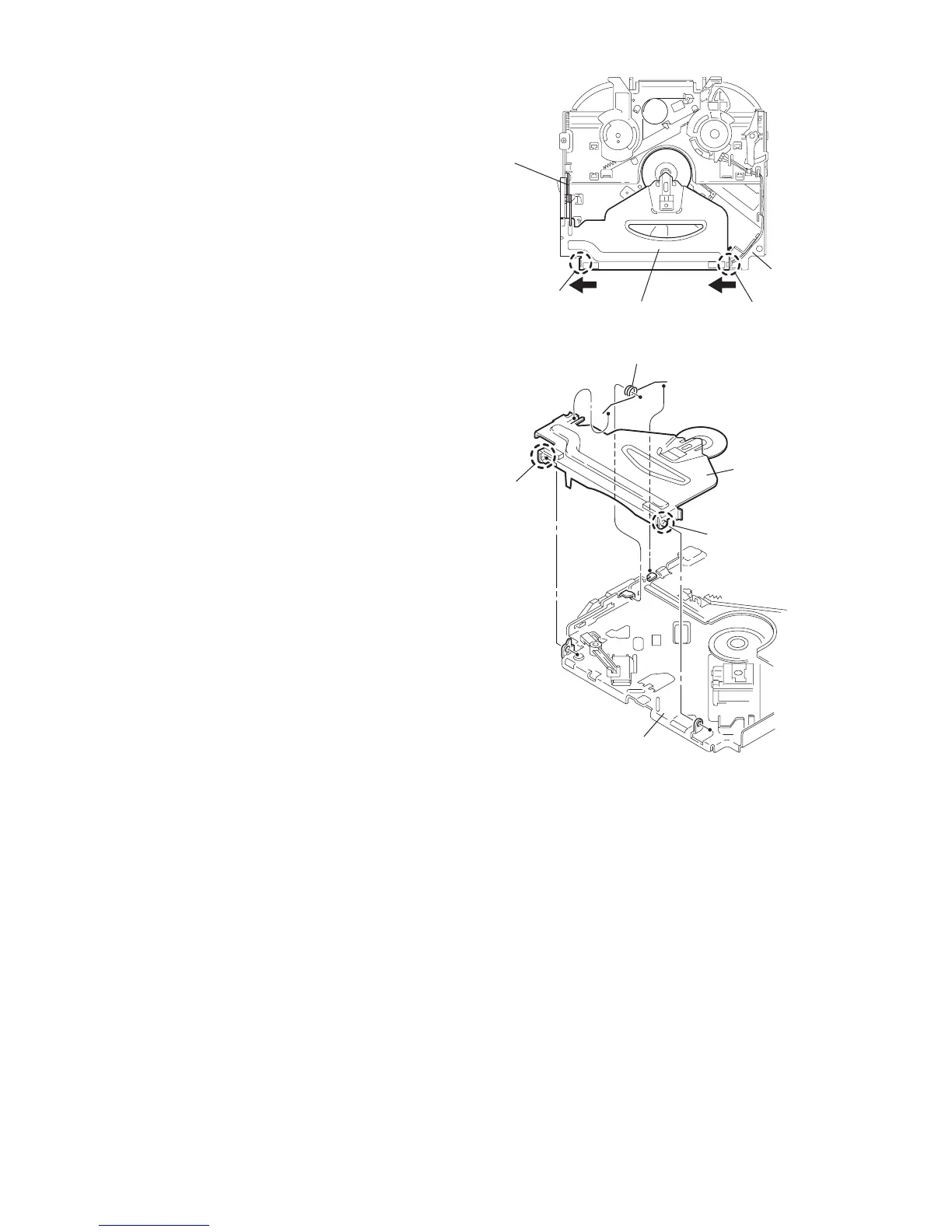

1-16 (No.MA112)
3.2.5
Removing the clamper assembly
(See Figs.10 and 11)
•
Prior to performing the followi
ng proced
ure, remove the top
cover.
(1)
Remove the clamper arm spring.
(2)
Move the clamper assembly in the direction of the arrow to
release the two joints
d
.
Fig.10
Fig.11
Clamper arm
spring
Chassis rivet
assembly
Joint d
Joint d
Clamper assembly
Clamper arm spring
Clamper assembly
Joint d
Joint d
Chassis rivet assembly
15
17
Table of Contents
Service Manual
1
Table of Contents
1
Precautions
3
Specific Service Instructions
5
Disassembly
6
Pull out the Loading Gear
25
Adjustment
27
Troubleshooting
28
Schematic Diagrams
35
Safety Precaution
36
Block Diagram (for J Version)
38
Standard Schematic Diagrams (for J Version)
40
Printed Circuit Boards (for J Version)
46
Block Diagram (for J2 Version)
50
Standard Schematic Diagrams (for J2 Version)
52
Printed Circuit Boards (for J2 Version)
58
No.ma112Sch
66
Parts List
67
Loading Gear
73
Electrical Parts List
74
