1-20 (No.MA142)

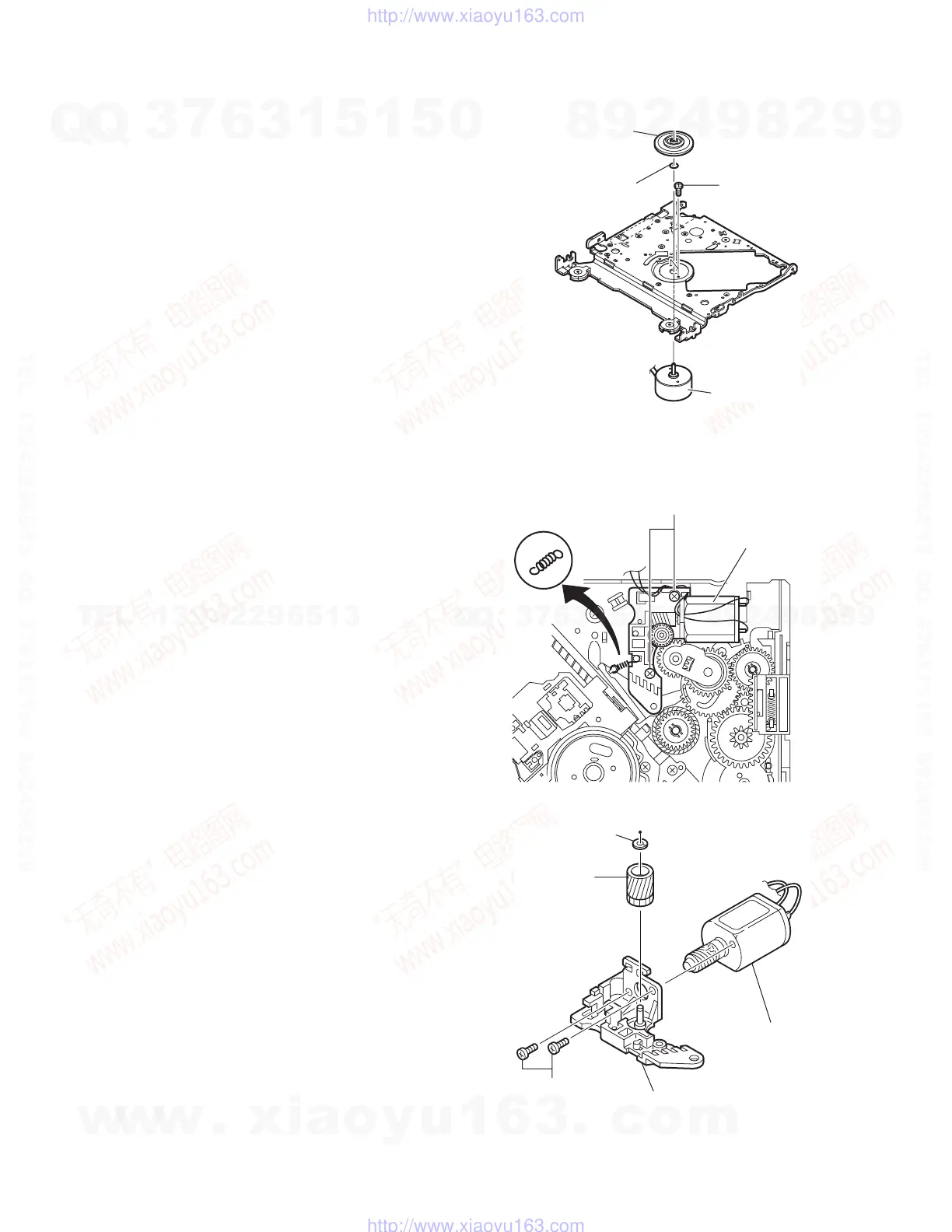

3.2.10 Removing the spindle motor
(See Fig.20)
• Remove the mechanism control board, top cover, mechanism
section and clamper unit.
(1) From the top side of the mechanism section, remove the
T.table assembly and washer from the spindle motor.
(2) Remove the two screws H attaching the spindle motor.
(3) Take out the spindle motor from the bottom side of the
mechanism section.
Caution:
Perform adjustment when reattaching the spindle motor.
Fig.20
3.2.11 Removing the feed motor
(See Figs.21 and 22)
• Remove the mechanism control board.
(1) From the bottom side of the CD mechanism assembly, re-
move the F.T.spring. (See Fig.21)
(2) Remove the two screws J attaching the feed motor assem-
bly. (See Fig.21)
(3) Remove the slit washer from the motor H.assembly and
pull out the worm wheel. (See Fig.22)
(4) Remove the two screws K attaching the feed motor. (See
Fig.22)
Fig.21
Fig.22
Washer
H
T. table assembly
Spindle moto
J
Feed motor assembly
F.T.Spring
Feed moto
Motor H.assembly
Worm wheel
K
Slit washer
