1-8 (No.MA142)
3.1.4 Removing the front chassis
(See Figs.7 and 8)
• Prior to performing the following procedure, remove the front
panel assembly, heat sink and top chassis assembly.
(1) From the both sides of the top chassis assembly, remove
the two screws F attaching the front chassis. (See Figs.7
and 8)
(2) Take out the front chassis forward.

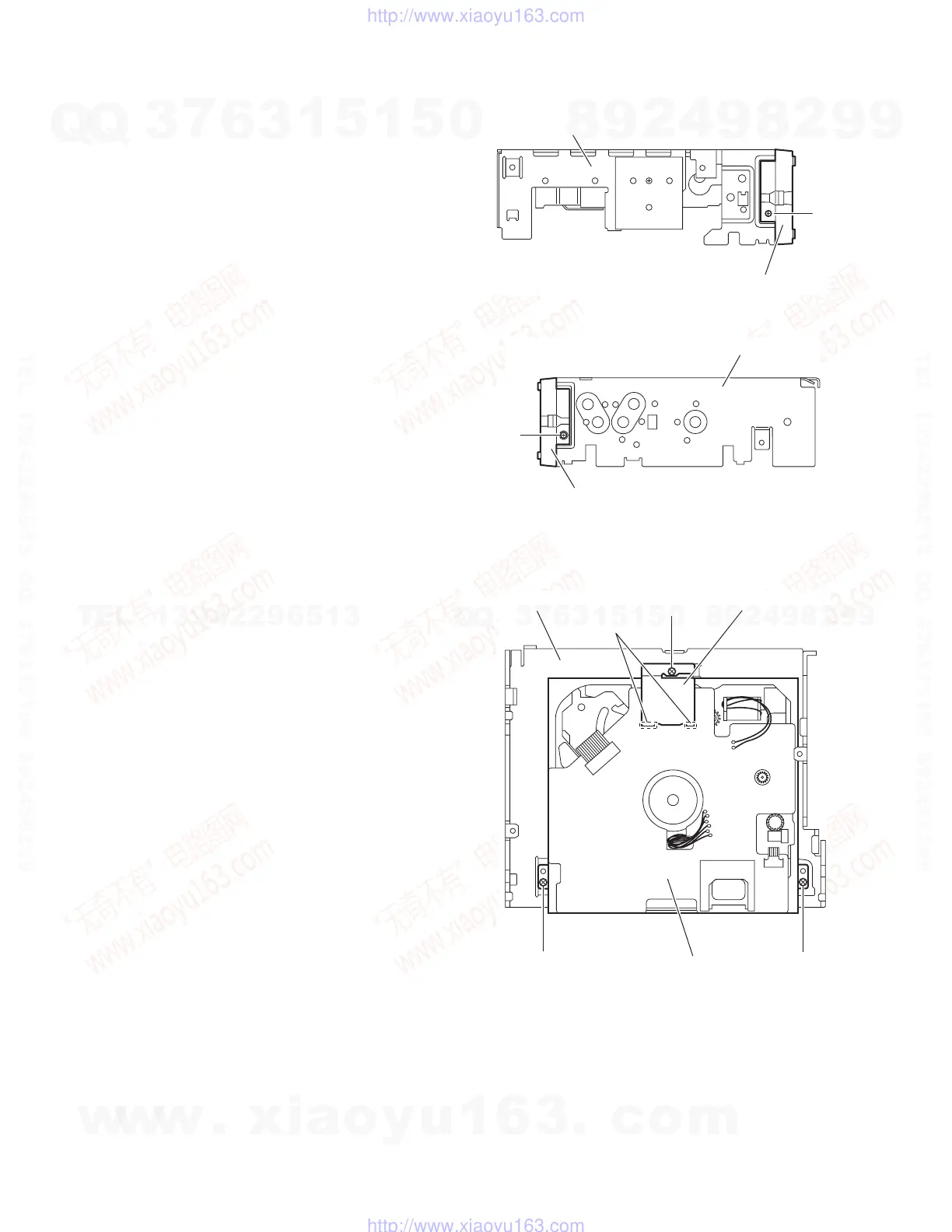

Fig.7
Fig.8
3.1.5 Removing the CD mechanism assembly
(See Fig.9)
• Prior to performing the following procedures, remove the front
panel assembly, heat sink and top chassis assembly.
Reference:
Remove the front chassis as required.
(1) From the inside of the top chassis assembly, remove the
three screws G attaching the CD mechanism assembly.
Reference:
When attaching the screw G, attach it with the mecha
heat sink.
(2) Remove the mecha heat sink from the CD mechanism as-
sembly, and take out the CD mechanism assembly from
the top chassis.
Reference:
When attaching the mecha heat sink, pass the craws of it
through the slots a of CD mechanism assembly.
Fig.9
Top chassis assembly
Front chassis
F
Top chassis assembly
Front chassis
F
Top chassis
Slots a
Mecha heat sink
G
G GCD mechanism assembly
