JVC KD-AVX1 Service Manual

(No.MA165)1-9
SECTION 3
DISASSEMBLY

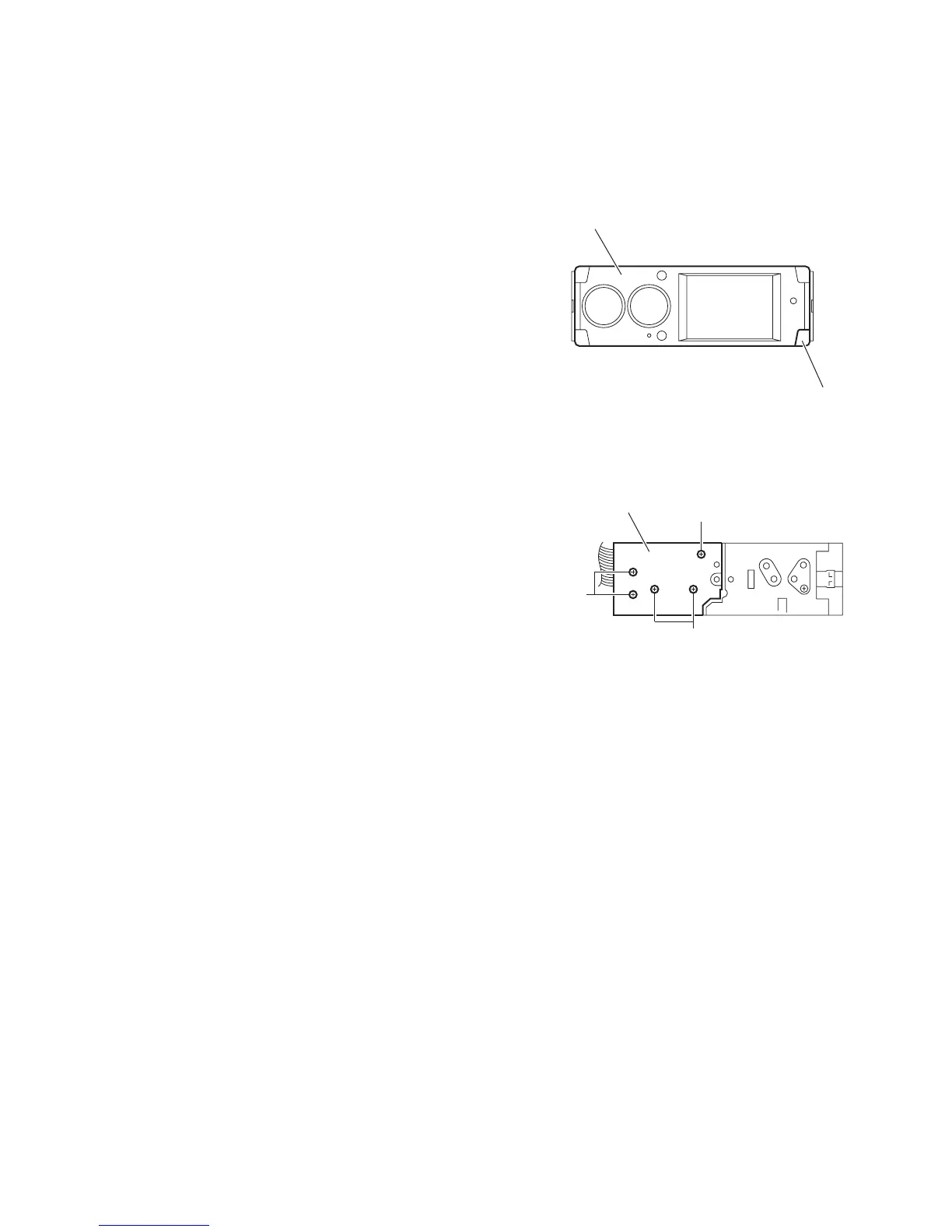

3.1 Main body section
3.1.1 Removing the panel assembly
(See Fig.1)
(1) Push the button(detach) in the lower right part of the panel
assembly.
(2) Remove the panel assembly.
Fig.1
3.1.2 Removing the side heat sink
(See Fig.2)
Reference:
Remove the panel assembly as required.
(1) From the left side of the main body, remove the two screws
A and three screws B attaching the side heat sink.
(2) Remove the side heat sink from the main body.
Fig.2
Panel assembly
Button(detach)
Side heat sink
A
B
B
