JVC KD-DV6101 Service Manual

(No.MA154)1-7
SECTION 3
DISASSEMBLY

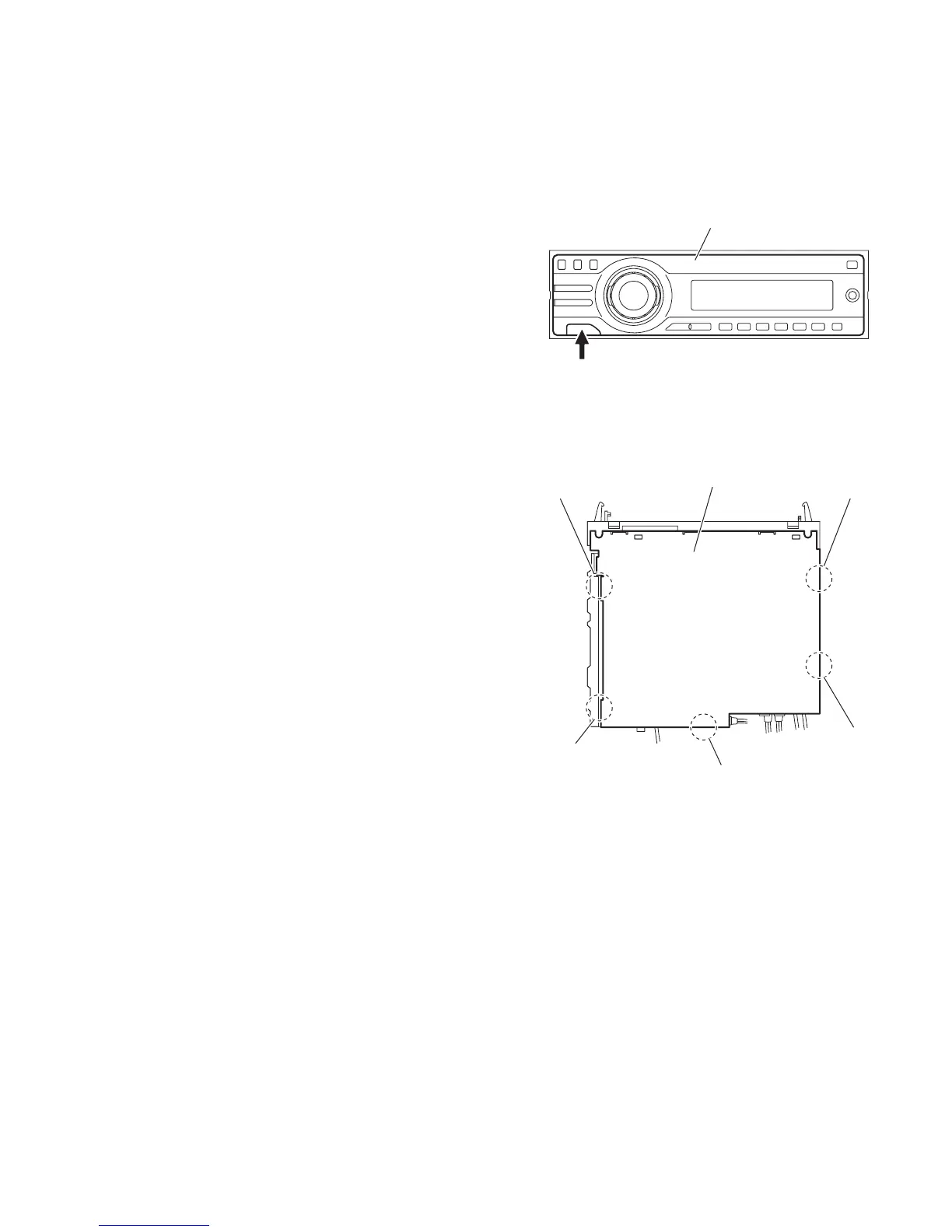

3.1 Main body section
3.1.1 Removing the front panel assembly
(See Fig.1)
Push the detach button in the lower left part of the front panel as-
sembly and remove the front panel assembly.
Fig.1
3.1.2 Removing the bottom cover
(See Fig.2)
Reference:
Remove the front panel assembly as required.
(1) Release the two joints a, two joints b and joint c.
(2) Remove the bottom cover from the main body.
Caution:
Do not damage the main board when releasing the joints using
a screwdriver or a similar tool.
Fig.2
Front panel assembly
Detach button
Bottom cover
b
b
a
a
c
