JVC KD-DV6101 Service Manual

(No.MA154)1-9

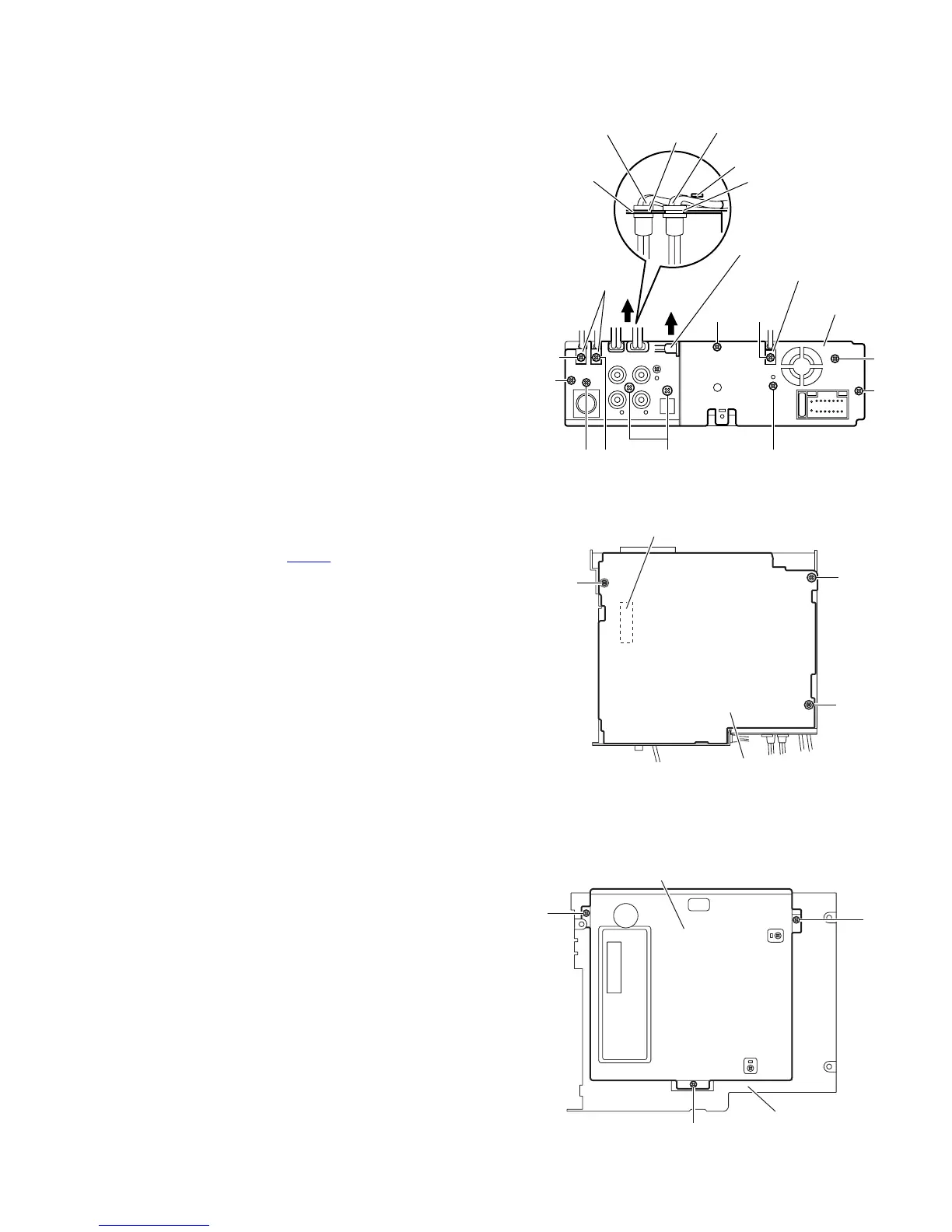

3.1.5 Removing the rear bracket
(See Fig.6)
• Remove the bottom cover.
(1) From the back side of the main body, remove the two
screws E, two screws E', screw E", screw F, two screws G
and three screws H attaching the rear bracket.
Reference:
Screw E" is used for KD-DV6101 only.
(2) Remove the LINE IN, SUBWOOFER and AUDIO OUT ca-
bles from the rear bracket in the direction of the arrow.
Reference:
• When attaching the LINE IN and SUBWOOFER cables, in-
sert them in the slots of the rear bracket and hang them on
a wire holder.
• When attaching the screws E' and screw E" , attach the ca-
ble holders with them.
3.1.6 Removing the main board
(See Figs.6 and 7)
• Remove the front panel assembly, bottom cover, front chassis
assembly and side heat sink.
Reference:
Remove the rear bracket as required.
(1) From the back side of the main body, remove the three
screws H attaching the main board. (See Fig.6.)
(2) From the bottom side of the main body, remove the three
screws J attaching the main board. (See Fig.7.)
(3) Disconnect the connector CN961
on the main board from
the DVD mechanism assembly and take out the main
board from the main body. (See Fig.7.)
Fig.6
Fig.7
3.1.7 Removing the DVD mechanism assembly
(See Fig.8)
• Remove the front panel assembly, bottom cover, front chassis
assembly, side heat sink and main board.
(1) From the inside of the top chassis, remove the three
screws K attaching the DVD mechanism assembly.
(2) Take out the DVD mechanism assembly from the top chas-
sis.
Fig.8
Rear bracket
G
H
E'
Cable holders
F
H
H
E
E'
Cable holder
Wire holder
Slot
LINE IN cable
Rear bracket
E
SUBWOOFER cable
AUDIO OUT cable
Slot
E"
CN961
J
J
Main board
J
K
K
K
DVD mechanism assembly
Top chassis
