1-10 (No.MA138)
3.1.8 Removing the switch board
(See Figs.9 to 11)
• Prior to performing the following procedure, remove the front
panel assembly.
(1) Remove the five screws K attaching the front panel assem-
bly. (See Fig.9)
(2) Release the nine joints h, and take out the rear cover. (See
Fig.10)
(3) Release the joint i, and take out the switch board. (See
Fig.11)
Note:
When removing the rear cover assembly and switch board, be
careful not to lose the spring. (See Fig.11)

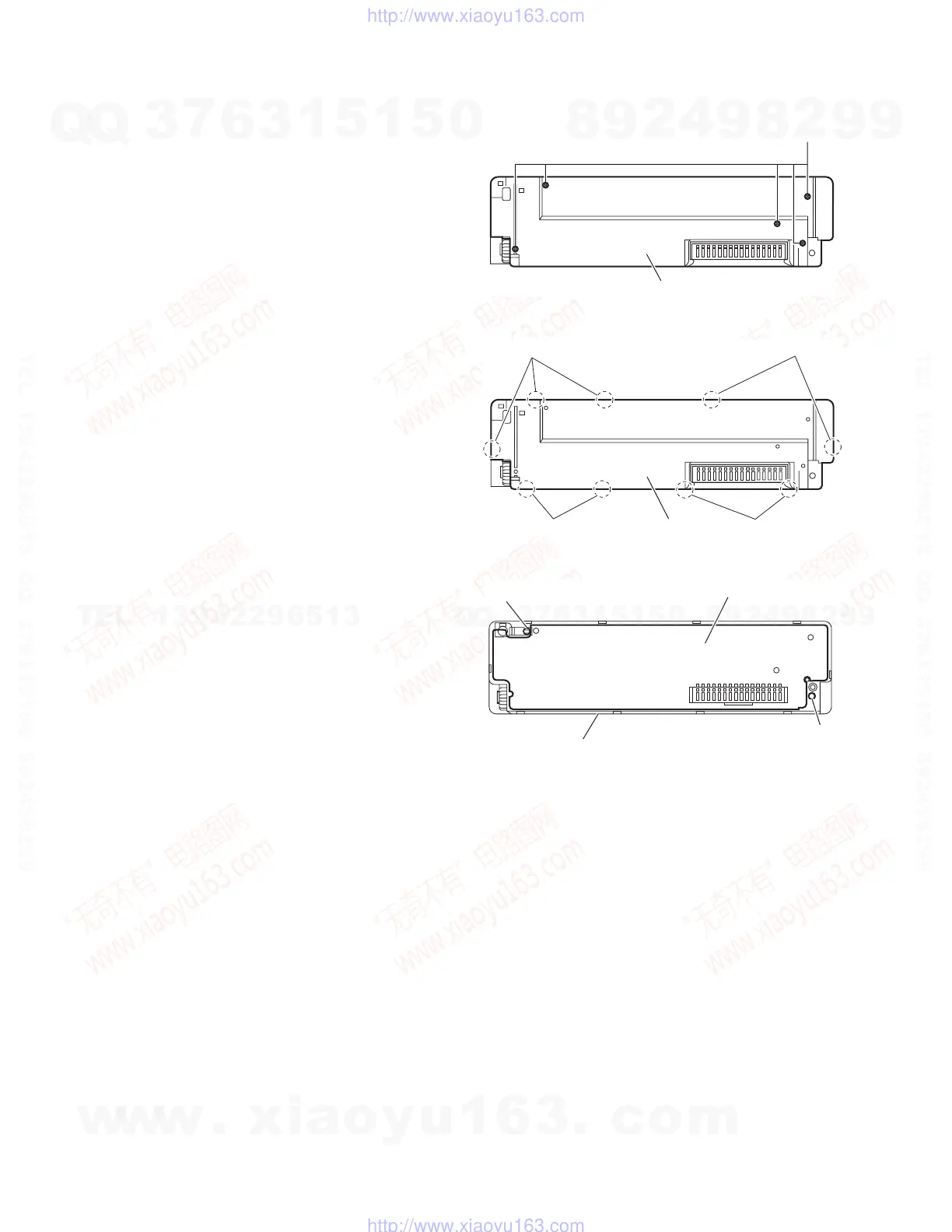

Fig.9
