KD-LX330R/KD-LX110R
1-11
Prior to performing the following procedure, remove
the CD mechanism control board and the front
bracket (loading motor).
Remove the three screws E and the damper
bracket.
Raise the both sides fix arms and move the fix plates
in the direction of the arrow to place the four shafts g
as shown in Fig.8 and 9.
Remove the CD mechanism assembly and the two
springs h attaching the flame.
Remove the two screws F and both sides rear
damper brackets from the dampers. Detach the CD
mechanism assembly from the left side to the right
side.
1.
2.
3.
4.

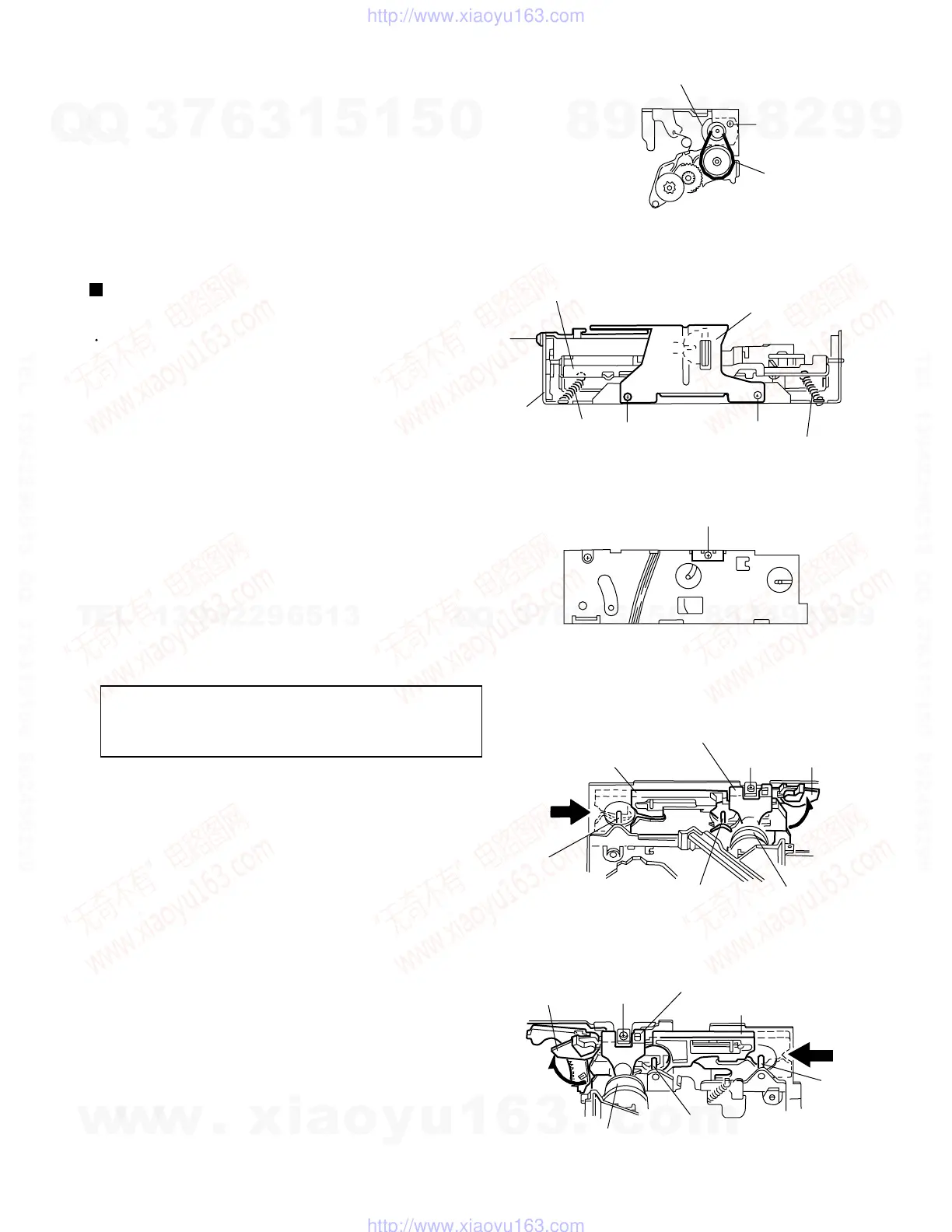

Removing the CD mechanism assembly
(See Fig.1, 6 to 9)
The CD mechanism assembly can be
removed if only the rear damper
bracket on the left side is removed.
ATTENTION:
Fig.5
Fig.6
Fig.7
Fig.8
Fig.9
Rear damper bracket
Fix arm (R)
Damper
E
E
Damper bracket
CD mechanism assembly
Flame
Spring h
E
E
Fix plate (L)
Shaft g
Shaft g
Rear damper bracket
Fix arm (L)
Damper
F
Fix plate(R)
F
Shaft g
Shaft g
D
Loading motor
Belt
Spring h
