ENGLISH
24

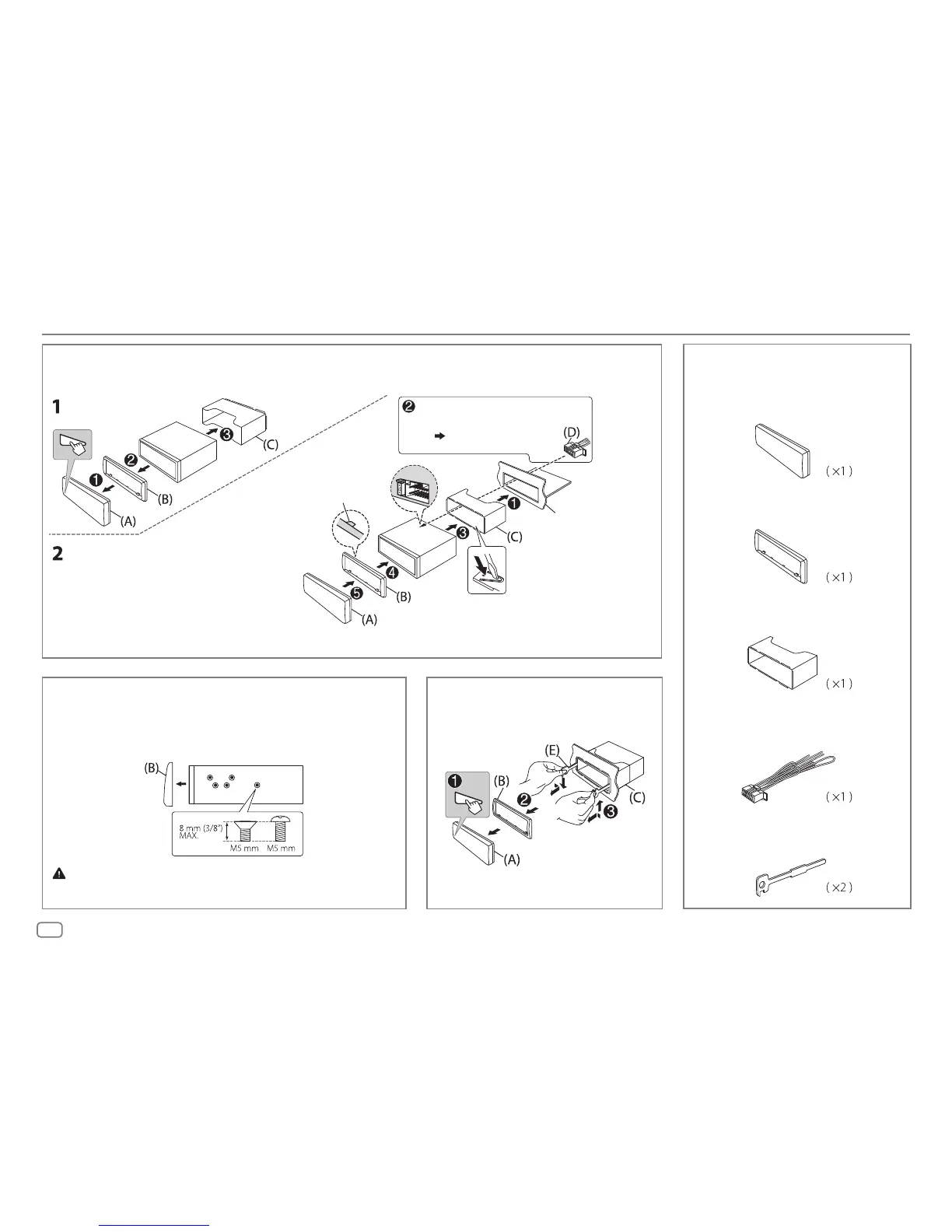

Part list for installation
(A)
Faceplate
(C)
Mounting sleeve
(B)
Trim plate
(D)
Wiring harness
(E)
Extraction key
How to remove the unit
When installing without the mounting sleeve
1
Remove the mounting sleeve and trim plate from the unit.
2
Align the holes in the unit (on both sides) with the vehicle mounting
bracket and secure the unit with screws (commercially available).
Use only the specified screws. Using wrong screws might damage the unit.
Installing the unit (in-dash mounting)
Do the required wiring.
(
25)
Bend the appropriate tabs to
hold the sleeve firmly in place.
Hook on the top side
Orientate the trim plate as
illustrated before fitting.
Dashboard of your car
INSTALLATION/CONNECTION
