20
ENGLISH
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
When connecting to an external
amplifier, connect its ground wire to the
car’s chassis to avoid damaging the unit.

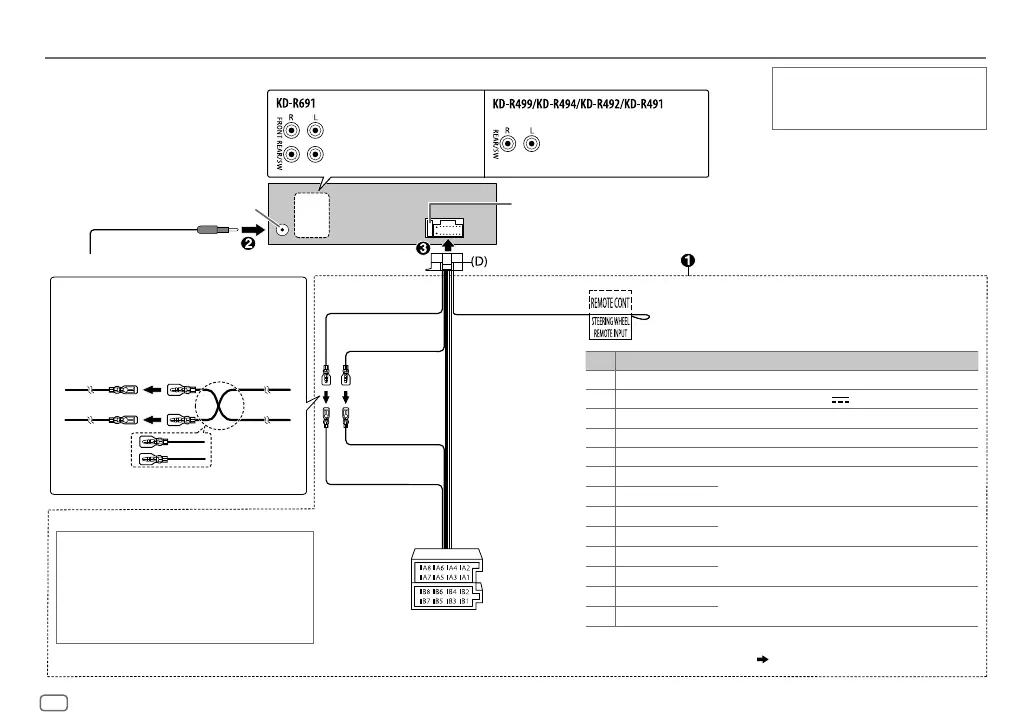

Wiring connection
Fuse (10A)
Antenna terminal
Light blue/yellow
(Steering remote
control wire)
To the steering wheel remote control adapter
Yellow (A4)
Red (A7)
Yellow (Battery wire)
Pin Color and function
A4 Yellow : Battery
A5 Blue/White : Power control (12V
350mA)
A6 Orange/white : Car light control switch
A7 Red : Ignition (ACC)
A8 Black : Earth (ground) connection
B1
Purple
]
: Rear speaker (right)
B2
Purple/black
[
B3
Gray
]
: Front speaker (right)
B4
Gray/black
[
B5
White ]
: Front speaker (left)
B6
White/black
[
B7
Green ]
: Rear speaker (left)
*
B8
Green/black
[
Unit
Connecting the ISO connectors on some
VW/Audi or Opel (Vauxhall) automobiles
You may need to modify the wiring of the supplied
wiring harness as illustrated below.
Vehicle
A7 (Red)
Ignition wire
(Red)
A4 (Yellow)
Default wiring
Battery wire
(Yellow)
*
You can also connect a subwoofer speaker directly without an external
subwoofer amplifier. For setting,
13 .
ISO connectors
If your car does not have an ISO terminal
We recommend installing the unit with a
commercially available custom wiring harness
specific for your car and leave this job to
professionals for your safety. Consult your car
audio dealer.
INSTALLATION/CONNECTION
Red (Ignition wire)
Front output
Rear/subwoofer output
Rear/subwoofer output
JS_JVC_KD_R691_E_EN_4.indd 20JS_JVC_KD_R691_E_EN_4.indd 20 7/10/2017 2:42:21 PM7/10/2017 2:42:21 PM
