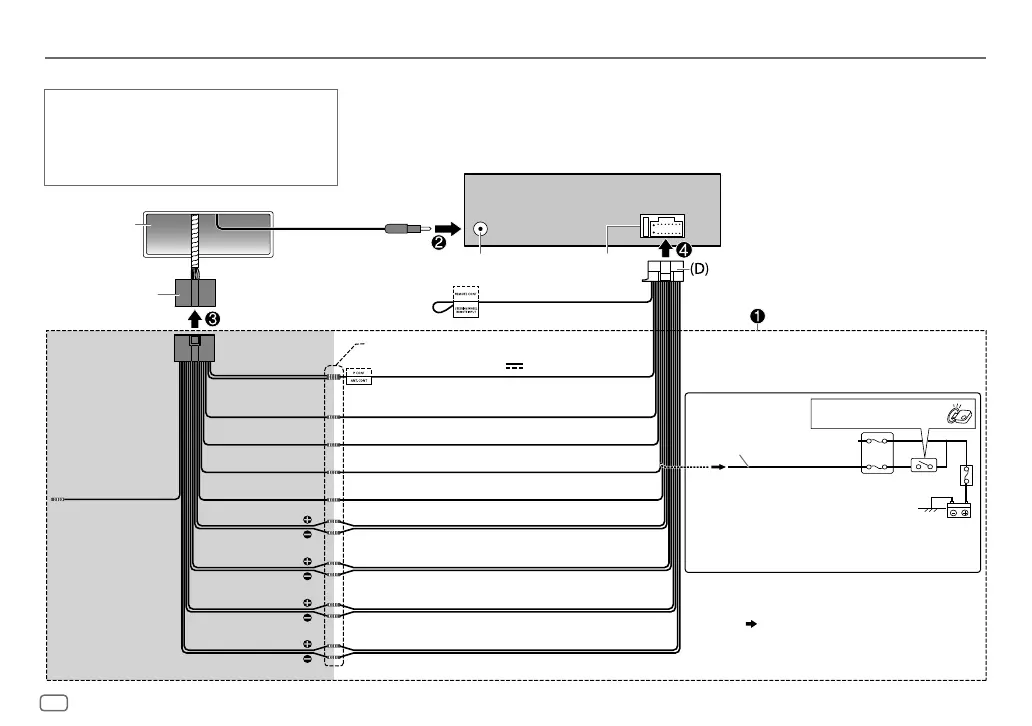

Wiring connection
INSTALLATION/CONNECTION
Car fuse block
Ignition switch
Light blue/yellow
Blue/white:
To amplifier
Blue:
To power antenna
Make this connection if your vehicle factory wiring
harness does not have “12V ignition switch” wire.
Separate red wire
To the steering wheel
remote control adapter
Fuse (10A)Antenna terminal
Factory wiring
harness (vehicle)
Black: Ground
Yellow: Battery 12V
White: Front speaker (left)
White/black
Gray: Front speaker (right)
Gray/black
Purple: Rear speaker (right)
Purple/black
Join the same color wires together.
Red: Ignition 12V
Orange/white: Illumination
Blue/white: Remote (12V
350mA)
Brown (not used)
Green: Rear speaker (left)
*
1
Green/black
*
1
*
1
You can also connect a subwoofer speaker directly using
this lead without an external subwoofer amplifier. For
setting,
25 .
Custom wiring harness
(separately purchased)
Vehicle
dashboard
Recommended connection
IMPORTANT
We recommend installing the unit with a commercially
available custom wiring harness specific for your car and
leave this job to professionals for your safety. Consult your
car audio dealer.
