Connecting external components
INSTALLATION/CONNECTION

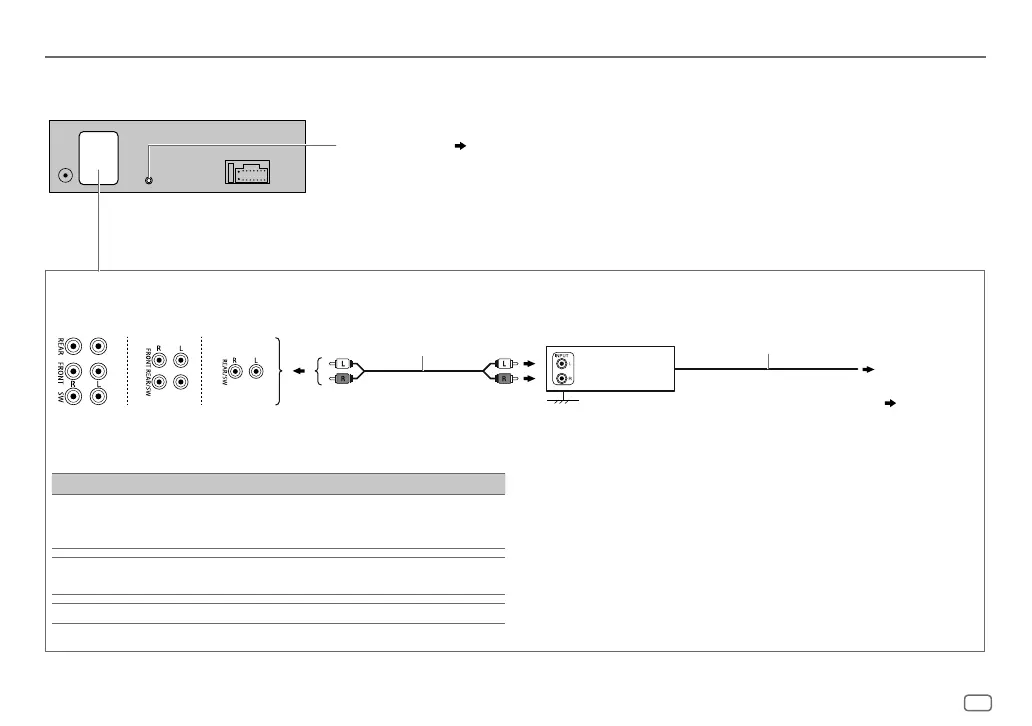

Connecting external amplifiers
*
2
Firmly connect the ground wire of the amplifier to the car’s chassis to avoid damaging the
unit.
Output terminals
Microphone input jack
( 14)
Output terminals 2-way crossover setting 3-way crossover setting
REAR :
FRONT :
SW :
Rear output
Front output
Subwoofer output
Tweeter output
Mid Range output
Woofer output
FRONT :
REAR/SW :
Front output
Rear/subwoofer output
Mid Range output
Woofer output
REAR/SW : Rear/subwoofer output Woofer output
KD-R991BT KD-R891BT
KD-R792BT
JVC Amplifier
*
2
Remote wire (not supplied)
Signal cord (not supplied)
To remote lead
(blue/white) of the
wiring harness
( 38) .
