JVC KD-S550 Service Manual

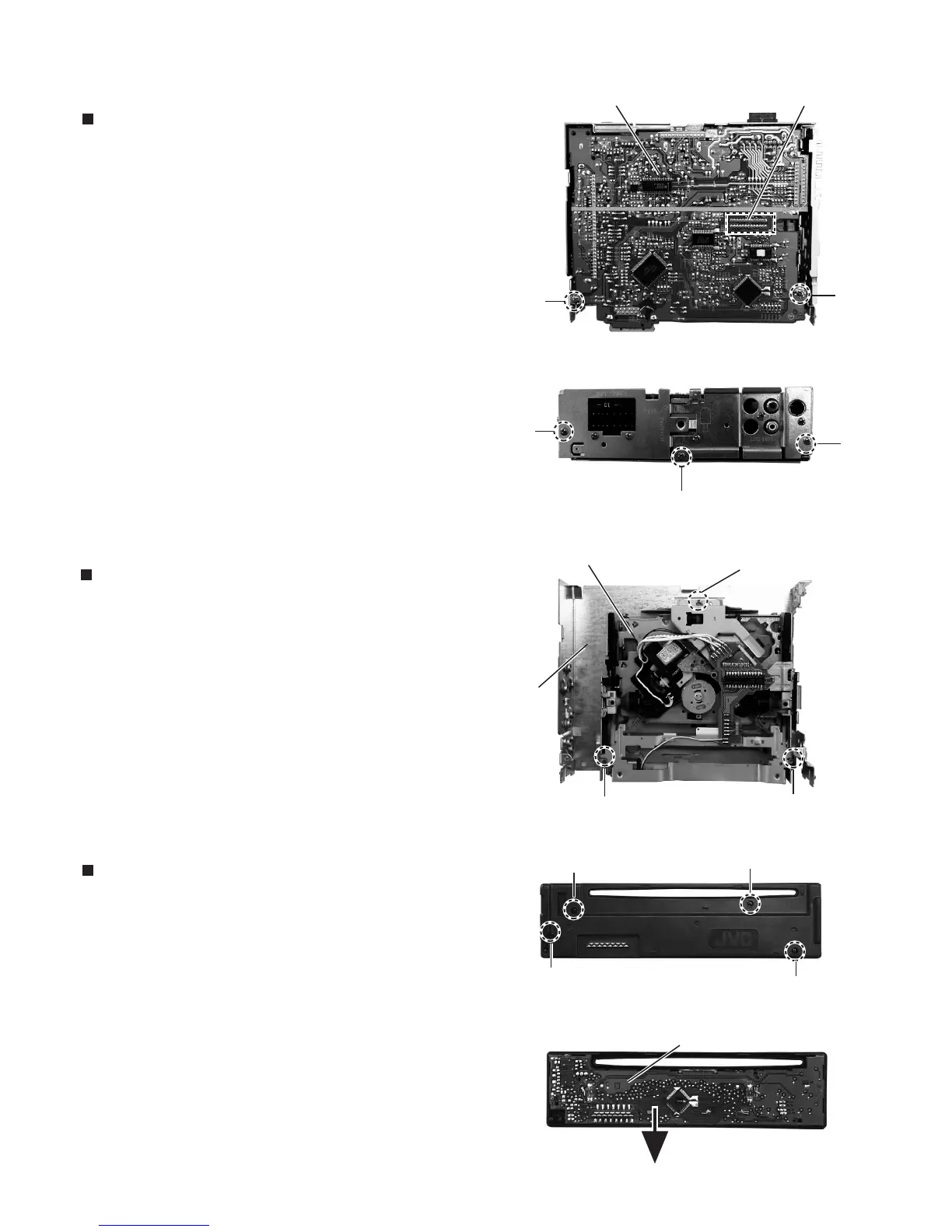

Removing the main amplifier board
(See Fig.5 and 6)
1.
2.
3.
4.
5.
Remove the front chassis.
Remove the bottom cover.
Remove the two screws B attaching the main
amplifier board assembly on the bottom of the body.
Remove the three screws C attaching the main
amplifier board assembly on the back of the body.
Disconnect connector CN501 on the main amplifier
board assembly from the CD mechanism assembly.
Removing the CD mechanism assembly
(See Fig.7)
1.
2.
3.
4.
Remove the front chassis.
Remove the bottom cover.
Remove the main amplifier board assembly.
Remove the three screws D attaching the CD
mechanism assembly from the top cover.
Removing the control switch board
(See Fig.8 and 9)
1.
2.
3.
Remove the front chassis.
Remove the four screws E attaching the rear cover
on the back of the front panel unit.
Remove the control switch board from the front
panel unit.
C
Fig.5
Fig. 6
B
B
C
C
CD mechanism assembly
D
D
D
Fop cover
Fig. 7
E
E
E
E
Fig. 8
Fig. 9
Control switch board
CN501
Main amplifier board
