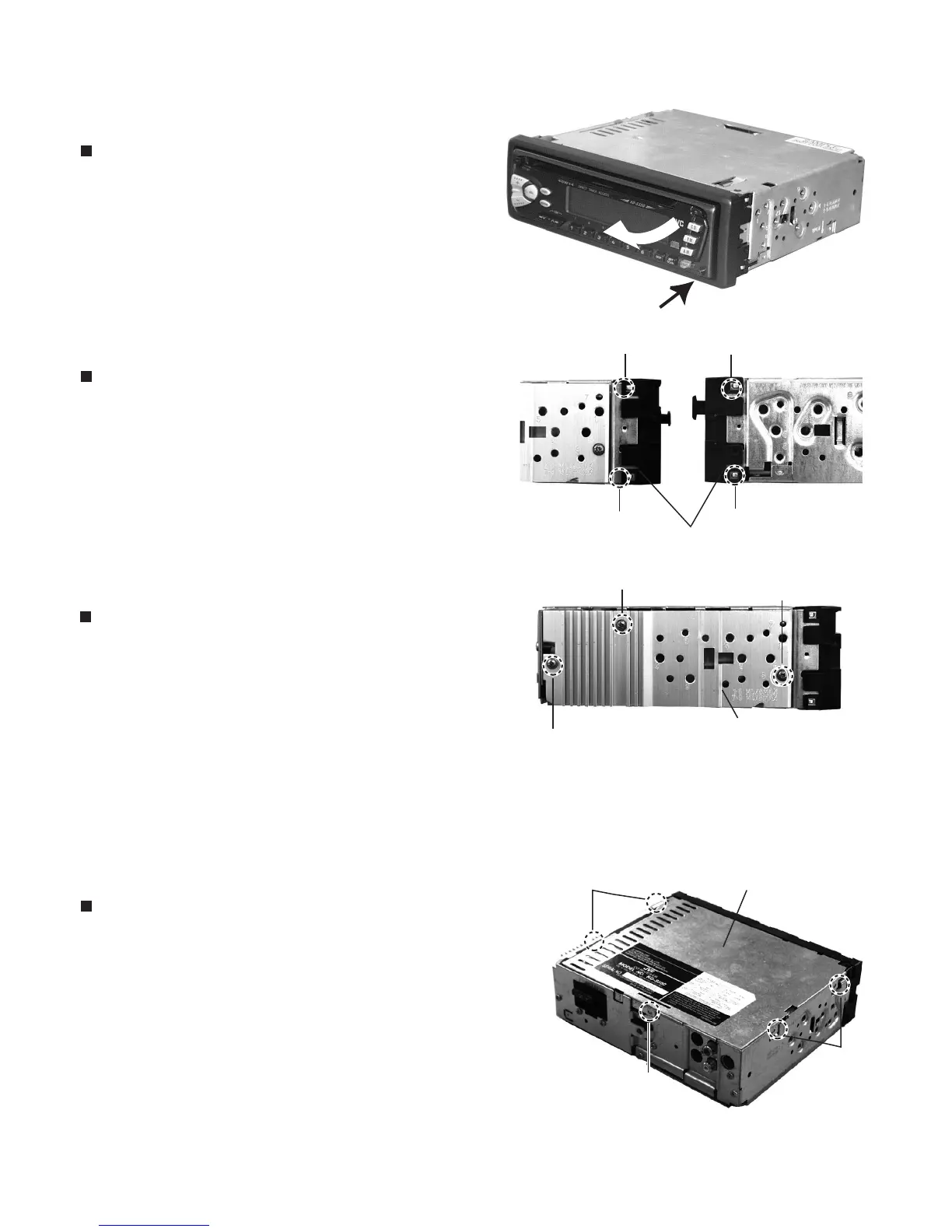

Disassembly method
Removing the front panel unit
(See Fig.1)
1. Insert a screwdriver to the joints a on the side of the
front chassis and two joints b on the right side, then
detach the front chassis toward the front side.
1. Press the release switch and remove the front
panel unit in the direction of the arrow.
Removing the front chassis (See Fig.2)
Removing the heat sink (See Fig.3)
1. Remove the three screws A attaching the heat sink
on the left side of the body, and remove the heat
sink.
Removing the bottom cover (See Fig.4)
1.
2.
Turn the body upside down.
Insert a screwdriver to the two joints c and two
joints d on both sides of the body and the joint e on
the back of the body, then detach the bottom cover
from the body.
b
a
a
b
A
A
A
Heat sink
c
d
e
Fig.2
Fig.1
Fig. 3
Fig. 4
Regulator board
Front chassis
To Next Page
