JVC KD-S550 Service Manual

* Prior to performing the following procedure, remove
the CD mechanism control board.
Remove the two springs k attaching the CD mechanism
ass’y and the front bracket.
Remove the two screws G and the front bracket
while pulling the flame outward.
Remove the belt and the screw H from the loading
motor.
1.
2.
3.
Removing the loading motor
(See Fig.12 to 14)
* Prior to performing the following procedure, remove
the CD mechanism control PWB and the front
bracket (loading motor).
Remove the three screws I and the damper bracket.
Raise the both sides fix arms and move the fix plates
in the direction of the arrow to place the four shafts l
as shown in Fig.17 and 18.
Remove the CD mechanism ass’y and the two
springs m attaching the flame.
Remove the two screws J and both sides rear
damper brackets from the dampers. Detach the CD
mechanism ass’y from the left side to the right side.
1.
2.
3.
4.
Removing the CD mechanism ass’y
(See Fig.10, 15 to 18)
The CD mechanism ass’y can be
removed if only the rear damper
bracket on the left side is removed.
ATTENTION:

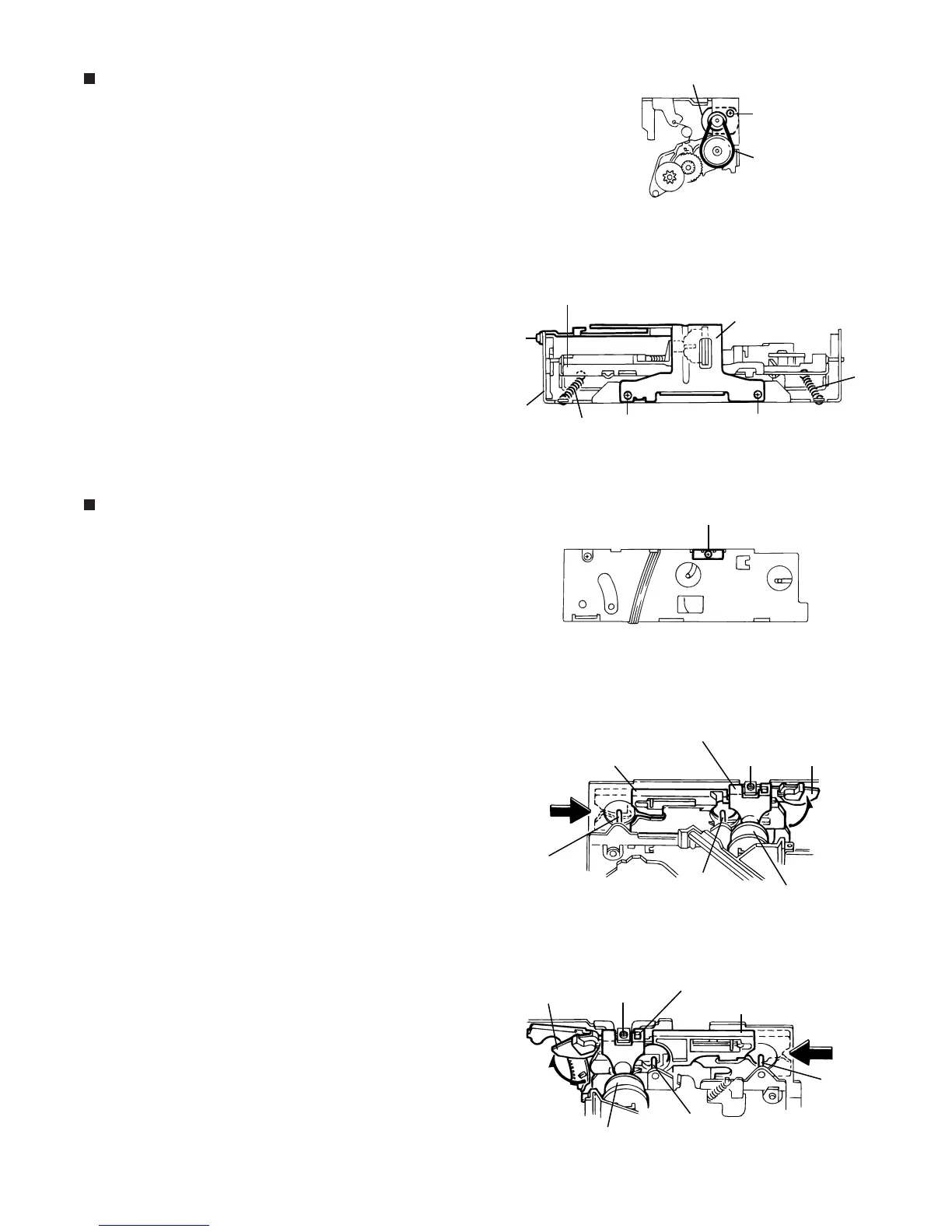

Fig.14
Fig.15
Fig.16
Fig.17
Fig.18
Rear damper bracket
Fix arm (R)
Damper
y
H
I
I
Loading motor
Belt
Damper bracket
CD mechanism ass’y
Flame
m
m
I
I
Fix plate (L)
l
l
Rear damper bracket
Fix arm (L)
Damper
J
Fix plate(R)
J
l
l
