Removing the main amplifier board assembly
(See Fig.4 and 5)
1.
2.
3.
4.
5.
Remove the front chassis.
Remove the bottom cover.
Remove the two screws B attaching the main amplifier
board assembly on the bottom of the body.
Remove the seven screws C attaching the main amplifier
board assembly on the back of the body.
Disconnect connector CN501 on the main amplifier board
assembly from the CD mechanism assembly.
Removing the CD mechanism assembly
(See Fig.6 )
1.
2.
3.
4.
Remove the front chassis.
Remove the bottom cover.
Remove the main amplifier board assembly.
Remove the three screws D attaching the CD mechanism
assembly from the top cover.
Removing the control switch board
(See Fig.7 and 8 )
1.
2.
3.
Remove the front chassis.
Remove the five screws E attaching the rear cover on the
back of the front panel unit.
Remove the control switch board from the front panel
unit.

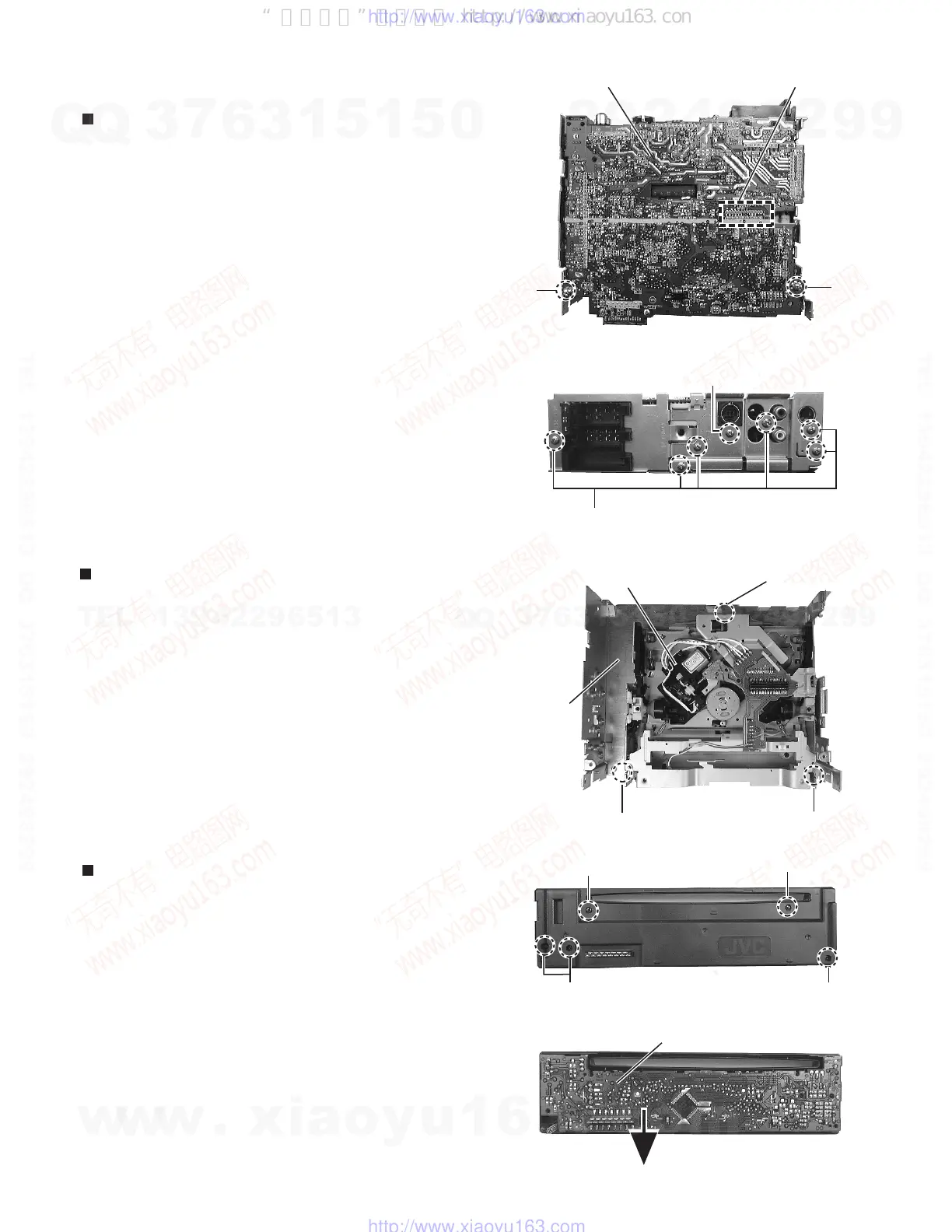

Fig.4
Fig. 5
B
B
C
C
CD mechanism assembly
D
D
D
Top cover
Fig. 6
E
E
E
E
Fig. 7
Fig. 8
Control switch board
CN501
Main amplifier board
(KD-SX878 ONLY)
