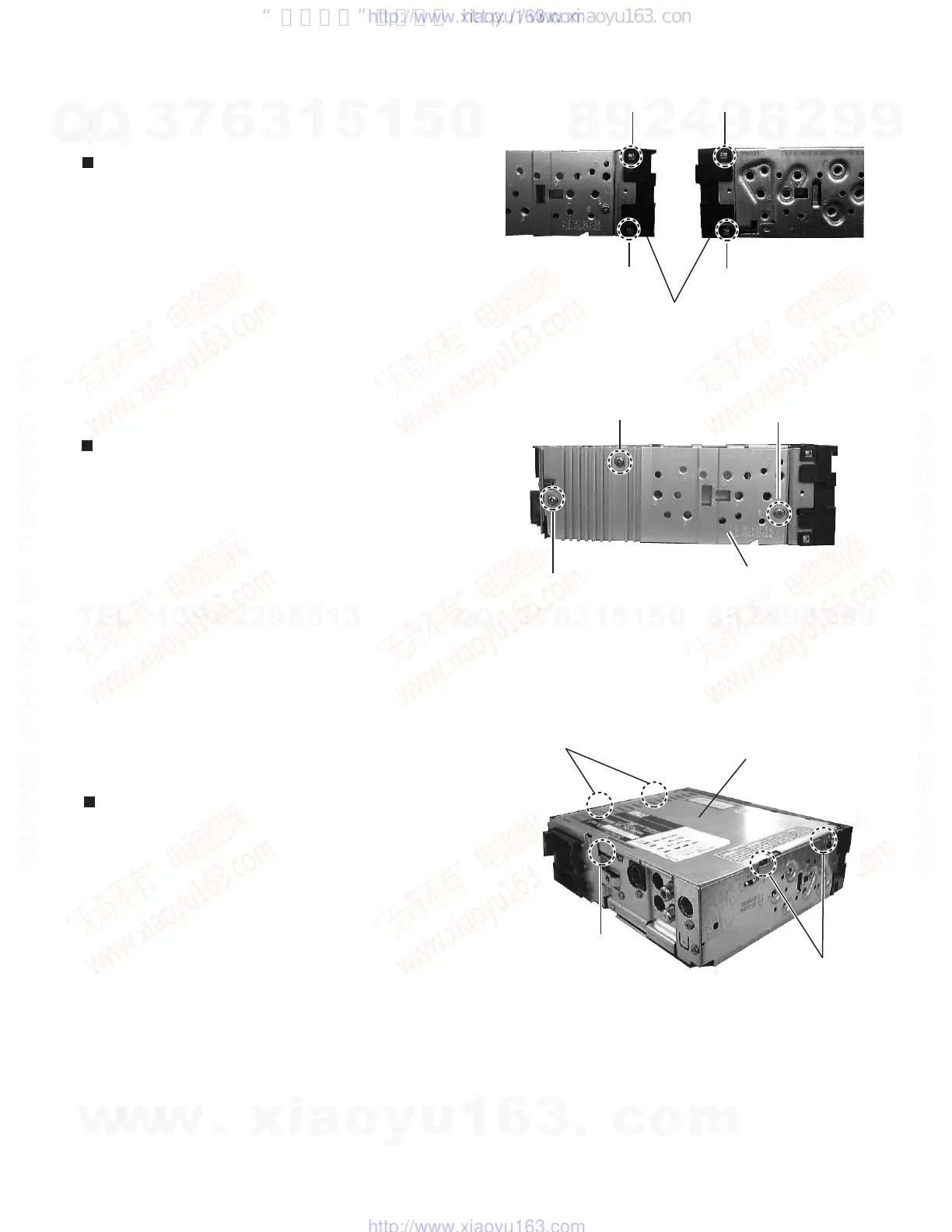

Disassembly method
Removing the front chassis
(See Fig.1)
1. Insert a screwdriver to the joints a on the side of the front
chassis and two joints b on the right side, then detach the
front chassis toward the front side.
Removing the heat sink (See Fig.2 )
1. Remove the three screws A attaching the heat sink on
the left side of the body, and remove the heat sink.
Removing the bottom cover (See Fig.3 )
1.
2.
Turn the body upside down.
Insert a screwdriver to the two joints c and two joints d on
both sides of the body and the joint e on the back of the
body, then detach the bottom cover from the body.
Fig.1
Fig.2
Fig. 3
Front chassis
b
a
a
b
A
A
A
Heat sink
Regulator board
c
e
d
