(No.MA047)1-19

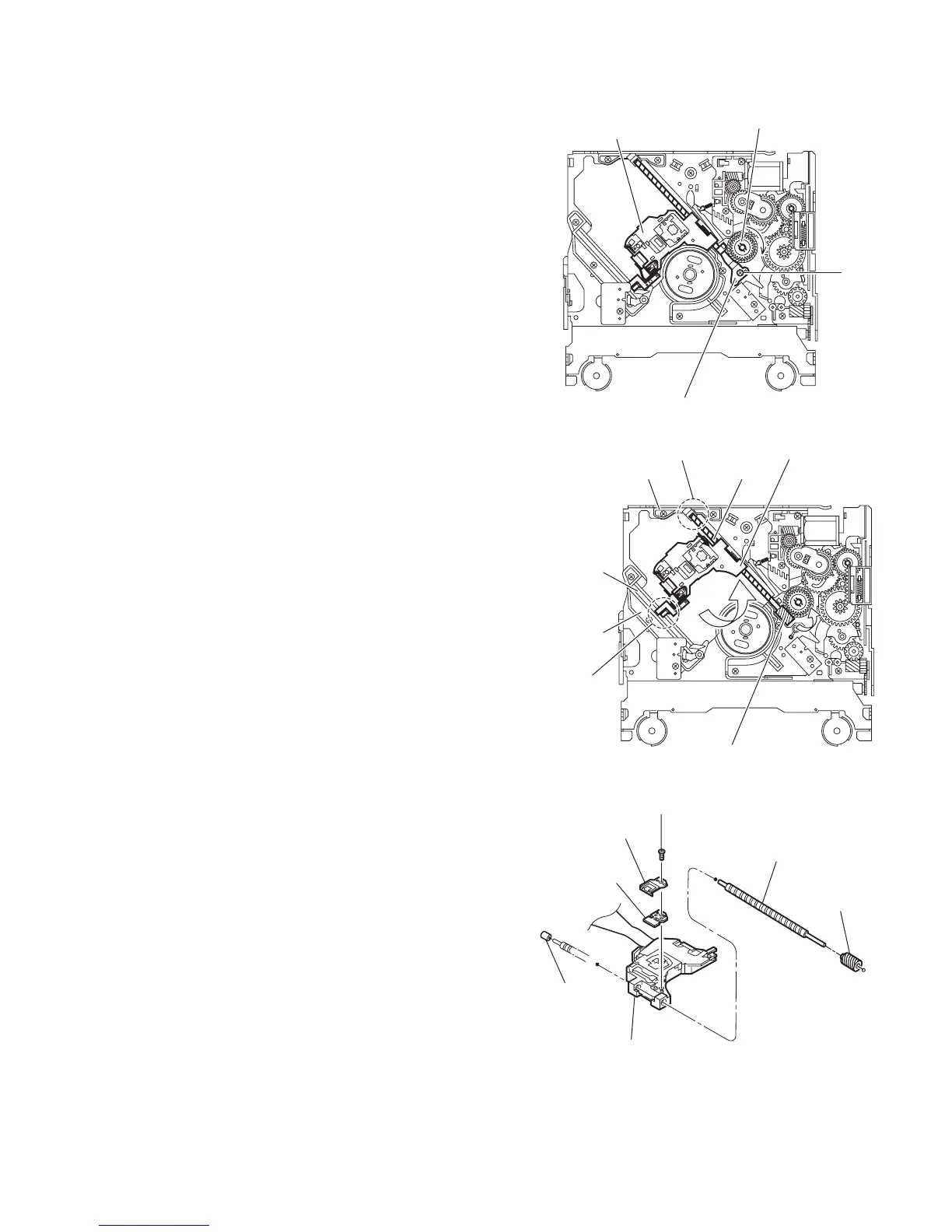

3.2.9 Removing the CD pickup assembly
(See Figs.17 to 19)
Prior to performing the following procedure, remove the front-
end board.
(1) From the bottom of the CD mechanism assembly, turn the
feed gear in the direction of the arrow to move the CD pick-
up assembly outwards. (See Fig.17)
(2) Remove the screw F attaching the thrust spring. (See
Fig.17)
(3) Remove the CD pickup assembly upward from the side of
L.S.gear and release sub shaft from joint s. (See Fig.18)
(4) Move the lead screw of the CD pickup assembly in the di-
rection of the arrow to release at joint t. (See Fig.18)
(5) Remove the screw G attaching the rack spring and rack
plate on the CD pickup. (See Fig.19)
(6) Pull out the lead screw. (See Fig.19)
Caution:
When reattaching the CD pickup assembly, reattach the sub
shaft at section s of the CD pickup assembly to the sub guide
first, and attach the lead screw shaft to the joint t on the
L.S.holder2. (See Fig.18)
Perform adjustment after replacing the pickup.
Fig.17
Fig.18
Fig.19
F
Feed gear
Thrust spring
CD Pickup assembly
Joint s
Joint t
L.S.holder 2
L.S.Gear
Lead screw
Sub shaft
CD Pickup assembly
Sub guide
G
Rack spring
Rack plate
L.S.Collar
CD Pickup
Lead screw
L.S.Gea
r
