3.2.12 Removing the SW board and reset SW board
(See Fig.23)
• Prior to performing the following procedure, remove the front-
end board.
(1) From the top side of the CD mechanism assembly, remove
the screw L attaching the SW board.
(2) Remove the screw M attaching the reset SW board.

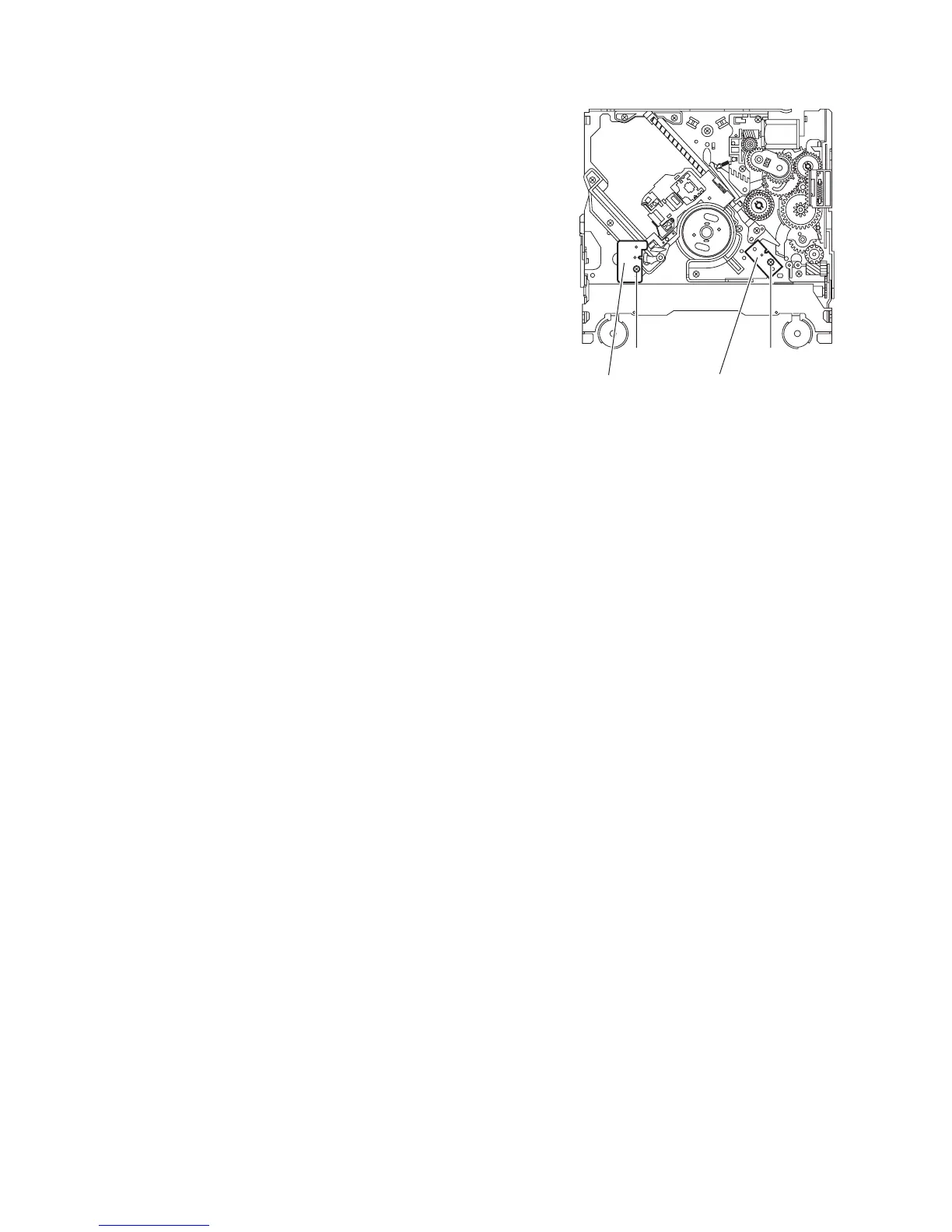

Fig.23
ML
Reset SW boardSW board
