JVC KD-SHX705

(No.MA048)1-35

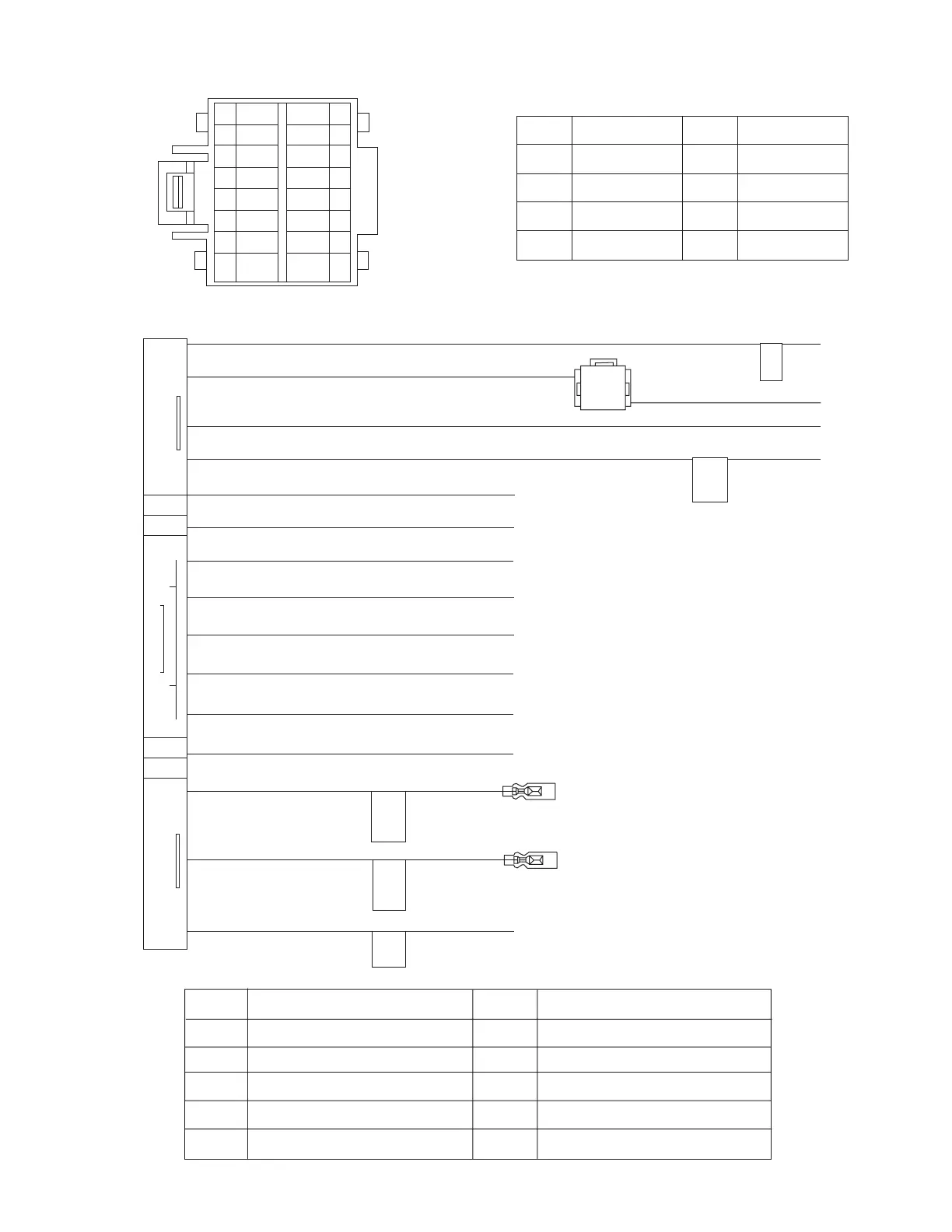

5.8 16PIN CORD DIAGRAM
9
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
GN
GN/BK
VI/BK
VI
BL
BL/WH
RD
BK
WH
WH/BK
GY/BK
GY
NC
BR
OR/WH
YL
Black
RD
BK
Red
BL
Blue
WH White
GN
Green
VI Violet
GY
Gray
OR Orange
YL
Yellow
BR
Brown
GND
BK
1
6
YL
2
RD
ILLUMINATION
CONTROL
OR/WH
15
9
WH
10
WH/BK
12 GY
11
GY/BK
8
GN
7
GN/BK
5
VI
6 VI/BK
4
BL
3 BL/WH
13 BR
POWER ANTENNA
REMOTE OUT
TEL MUTING
RR
FR
FL
RL
REMOTE
ANT
ACC
ILL
GND
MEMORY
Rear Right
Front Right
Front Left
Rear Left
Remote out
ACC Line
Illuminations Control
Ground
Memory Backup Battery+
Auto Antenna
TEL
Telephone muting
GND
MEMORY
ACC
ILL
FL+
FL-
FR+
FR-
RL+
RL-
RR+
RR-
ANT
REMOTE
TEL
Choking Coil
