Installation/Connection

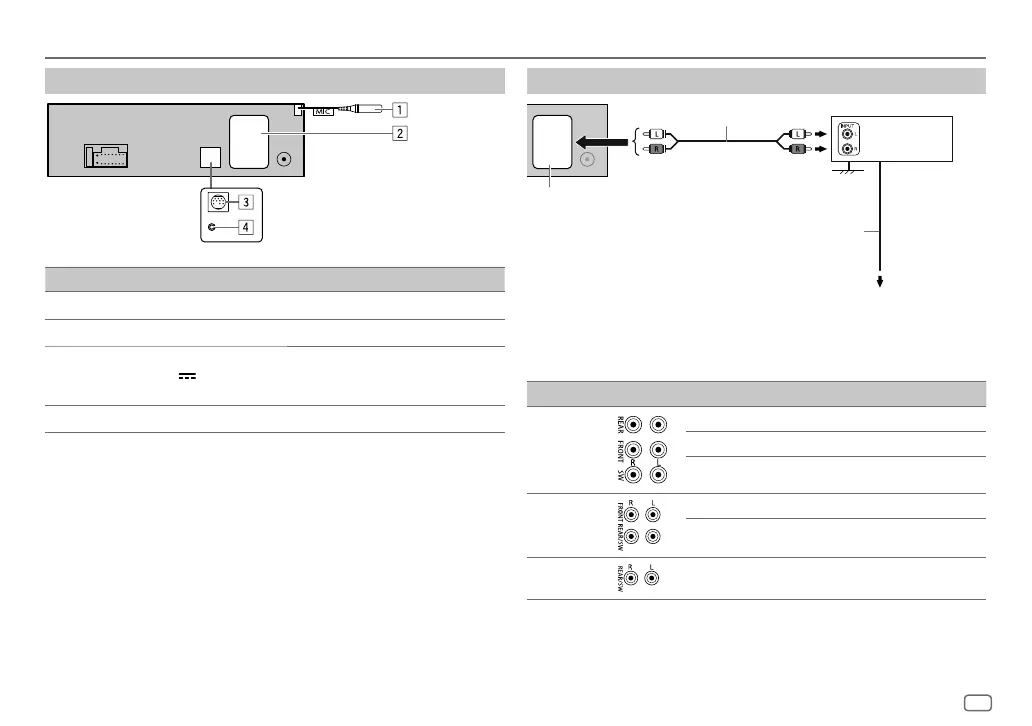

Connect external components
No Part
1
For KD-X38MBS: MIC (Microphone input terminal) (page 15)
2
Output terminals (See “Connect external amplifiers via output terminals”.)
3
For KD-X38MBS:
Expansion port (12 V
500 mA): To the optional SiriusXM Vehicle Tuner (commercially
available). (Page 10)
4
KD-X280BT/KD-XD28BT/KD-SX27BT: Microphone input jack (page 15)
Connect external amplifiers via output terminals
* Firmly connect the ground wire of the amplifier to the car’s chassis to avoid damaging the unit.
Model Output terminals 2-way crossover 3-way crossover
KD-X38MBS
REAR: Rear output Tweeter output
FRONT: Front output Mid Range output
SW: Subwoofer output Woofer output
KD-XD28BT
FRONT: Front output Mid Range output
REAR/SW: Rear/subwoofer output Woofer output
KD-X280BT/
KD-SX27BT
REAR/SW: Rear/subwoofer output Woofer output
JVC Amplifier*
Signal cord (not supplied)
To remote lead (blue/white) of the
wiring harness. (Page 36)
Remote wire (not supplied)
Output terminals
