JVC KD-SX950 - Page 49

Item
Parts number
Parts name
Area
A

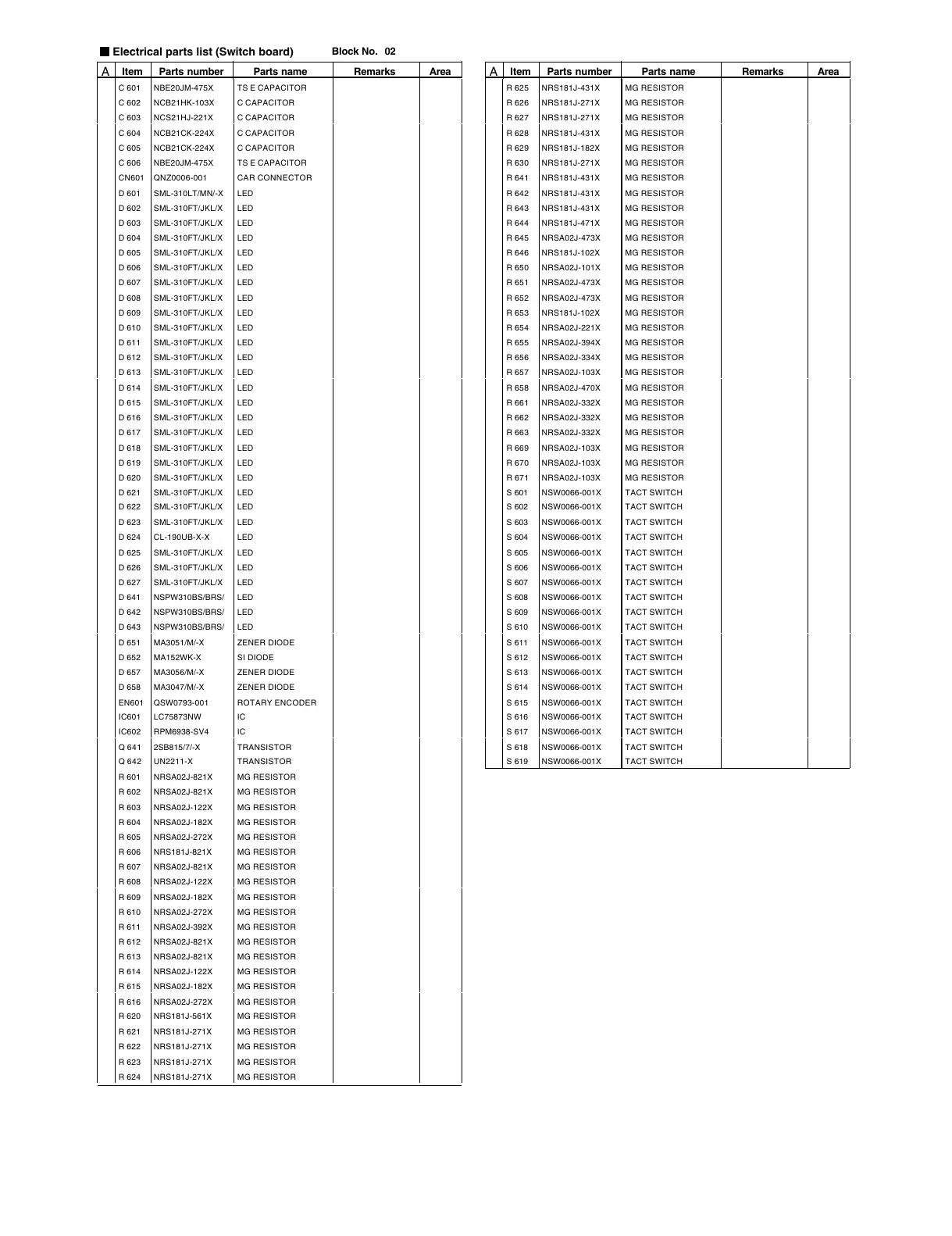

Electrical parts list (Switch board)
Remarks
Block No.
02
C 601
NBE20JM-475X
TS E CAPACITOR
C 602
NCB21HK-103X
C CAPACITOR
C 603
NCS21HJ-221X
C CAPACITOR
C 604
NCB21CK-224X
C CAPACITOR
C 605
NCB21CK-224X
C CAPACITOR
C 606
NBE20JM-475X
TS E CAPACITOR
CN601
QNZ0006-001
CAR CONNECTOR
D 601
SML-310LT/MN/-X
LED
D 602
SML-310FT/JKL/X
LED
D 603
SML-310FT/JKL/X
LED
D 604
SML-310FT/JKL/X
LED
D 605
SML-310FT/JKL/X
LED
D 606
SML-310FT/JKL/X
LED
D 607
SML-310FT/JKL/X
LED
D 608
SML-310FT/JKL/X
LED
D 609
SML-310FT/JKL/X
LED
D 610
SML-310FT/JKL/X
LED
D 611
SML-310FT/JKL/X
LED
D 612
SML-310FT/JKL/X
LED
D 613
SML-310FT/JKL/X
LED
D 614
SML-310FT/JKL/X
LED
D 615
SML-310FT/JKL/X
LED
D 616
SML-310FT/JKL/X
LED
D 617
SML-310FT/JKL/X
LED
D 618
SML-310FT/JKL/X
LED
D 619
SML-310FT/JKL/X
LED
D 620
SML-310FT/JKL/X
LED
D 621
SML-310FT/JKL/X
LED
D 622
SML-310FT/JKL/X
LED
D 623
SML-310FT/JKL/X
LED
D 624
CL-190UB-X-X
LED
D 625
SML-310FT/JKL/X
LED
D 626
SML-310FT/JKL/X
LED
D 627
SML-310FT/JKL/X
LED
D 641
NSPW310BS/BRS/
LED
D 642
NSPW310BS/BRS/
LED
D 643
NSPW310BS/BRS/
LED
D 651
MA3051/M/-X
ZENER DIODE
D 652
MA152WK-X
SI DIODE
D 657
MA3056/M/-X
ZENER DIODE
D 658
MA3047/M/-X
ZENER DIODE
EN601
QSW0793-001
ROTARY ENCODER
IC601
LC75873NW
IC
IC602
RPM6938-SV4
IC
Q 641
2SB815/7/-X
TRANSISTOR
Q 642
UN2211-X
TRANSISTOR
R 601
NRSA02J-821X
MG RESISTOR
R 602
NRSA02J-821X
MG RESISTOR
R 603
NRSA02J-122X
MG RESISTOR
R 604
NRSA02J-182X
MG RESISTOR
R 605
NRSA02J-272X
MG RESISTOR
R 606
NRS181J-821X
MG RESISTOR
R 607
NRSA02J-821X
MG RESISTOR
R 608
NRSA02J-122X
MG RESISTOR
R 609
NRSA02J-182X
MG RESISTOR
R 610
NRSA02J-272X
MG RESISTOR
R 611
NRSA02J-392X
MG RESISTOR
R 612
NRSA02J-821X
MG RESISTOR
R 613
NRSA02J-821X
MG RESISTOR
R 614
NRSA02J-122X
MG RESISTOR
R 615
NRSA02J-182X
MG RESISTOR
R 616
NRSA02J-272X
MG RESISTOR
R 620
NRS181J-561X
MG RESISTOR
R 621
NRS181J-271X
MG RESISTOR
R 622
NRS181J-271X
MG RESISTOR
R 623
NRS181J-271X
MG RESISTOR
R 624
NRS181J-271X
MG RESISTOR
R 625
NRS181J-431X
MG RESISTOR
R 626
NRS181J-271X
MG RESISTOR
R 627
NRS181J-271X
MG RESISTOR
R 628
NRS181J-431X
MG RESISTOR
R 629
NRS181J-182X
MG RESISTOR
R 630
NRS181J-271X
MG RESISTOR
R 641
NRS181J-431X
MG RESISTOR
R 642
NRS181J-431X
MG RESISTOR
R 643
NRS181J-431X
MG RESISTOR
R 644
NRS181J-471X
MG RESISTOR
R 645
NRSA02J-473X
MG RESISTOR
R 646
NRS181J-102X
MG RESISTOR
R 650
NRSA02J-101X
MG RESISTOR
R 651
NRSA02J-473X
MG RESISTOR
R 652
NRSA02J-473X
MG RESISTOR
R 653
NRS181J-102X
MG RESISTOR
R 654
NRSA02J-221X
MG RESISTOR
R 655
NRSA02J-394X
MG RESISTOR
R 656
NRSA02J-334X
MG RESISTOR
R 657
NRSA02J-103X
MG RESISTOR
R 658
NRSA02J-470X
MG RESISTOR
R 661
NRSA02J-332X
MG RESISTOR
R 662
NRSA02J-332X
MG RESISTOR
R 663
NRSA02J-332X
MG RESISTOR
R 669
NRSA02J-103X
MG RESISTOR
R 670
NRSA02J-103X
MG RESISTOR
R 671
NRSA02J-103X
MG RESISTOR
S 601
NSW0066-001X
TACT SWITCH
S 602
NSW0066-001X
TACT SWITCH
S 603
NSW0066-001X
TACT SWITCH
S 604
NSW0066-001X
TACT SWITCH
S 605
NSW0066-001X
TACT SWITCH
S 606
NSW0066-001X
TACT SWITCH
S 607
NSW0066-001X
TACT SWITCH
S 608
NSW0066-001X
TACT SWITCH
S 609
NSW0066-001X
TACT SWITCH
S 610
NSW0066-001X
TACT SWITCH
S 611
NSW0066-001X
TACT SWITCH
S 612
NSW0066-001X
TACT SWITCH
S 613
NSW0066-001X
TACT SWITCH
S 614
NSW0066-001X
TACT SWITCH
S 615
NSW0066-001X
TACT SWITCH
S 616
NSW0066-001X
TACT SWITCH
S 617
NSW0066-001X
TACT SWITCH
S 618
NSW0066-001X
TACT SWITCH
S 619
NSW0066-001X
TACT SWITCH
Item
Parts number
Parts name
Area
A
Remarks
