Installation/Connection

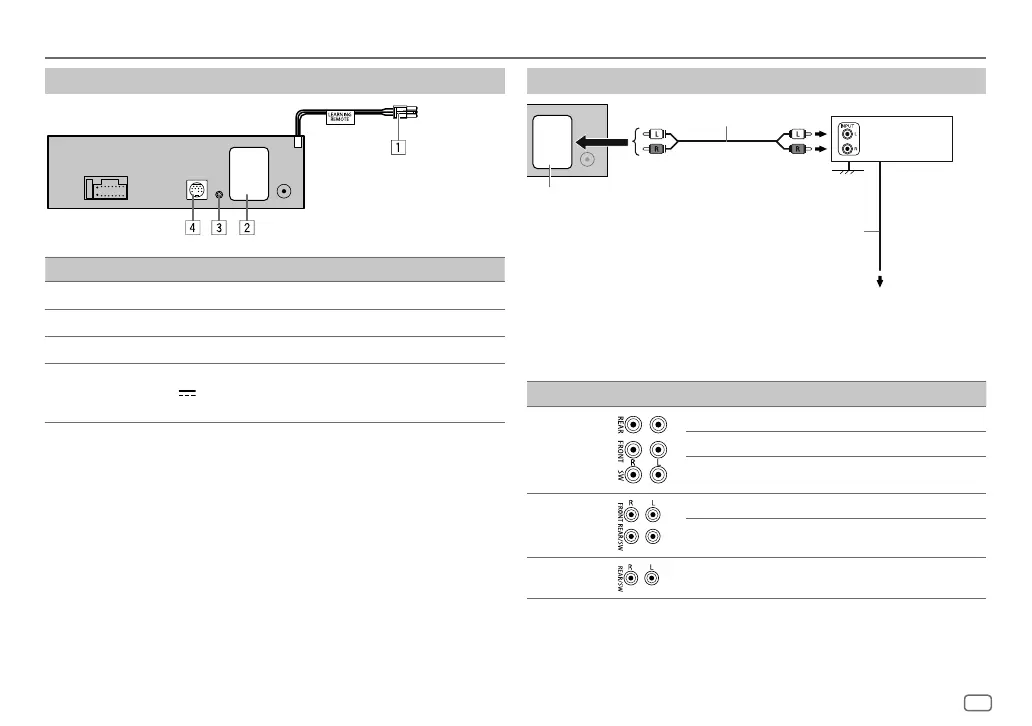

Connect external components
No Part
1
For KD-T721BT: Learning steering remote (page 31)
2
Output terminals (See “Connect external amplifiers via output terminals”.)
3
Microphone input jack (page 17)
4
For KD-T92MBS:
Expansion port (12 V
500 mA): To the optional SiriusXM Vehicle Tuner (commercially
available). (Page 12)
Connect external amplifiers via output terminals
* Firmly connect the ground wire of the amplifier to the car’s chassis to avoid damaging the unit.
Model Output terminals 2-way crossover 3-way crossover
KD-T92MBS
REAR: Rear output Tweeter output
FRONT: Front output Mid Range output
SW: Subwoofer output Woofer output
KD-TD72BT/
KD-SR87BT
FRONT: Front output Mid Range output
REAR/SW: Rear/subwoofer output Woofer output
KD-T721BT
REAR/SW: Rear/subwoofer output Woofer output
JVC Amplifier*
Signal cord (not supplied)
To remote lead (blue/white) of the
wiring harness. (Page 40)
Remote wire (not supplied)
Output terminals
