JVC KD-X252 User Manual

ENGLISH
19
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
INSTALLATION/CONNECTION
*
1
Firmly connect the ground
wire of the amplifier to
the car’s chassis to avoid
damaging the unit.
*
2
You can also connect a
subwoofer speaker directly
using this lead without
an external subwoofer
amplifier. For setting,
 12 .

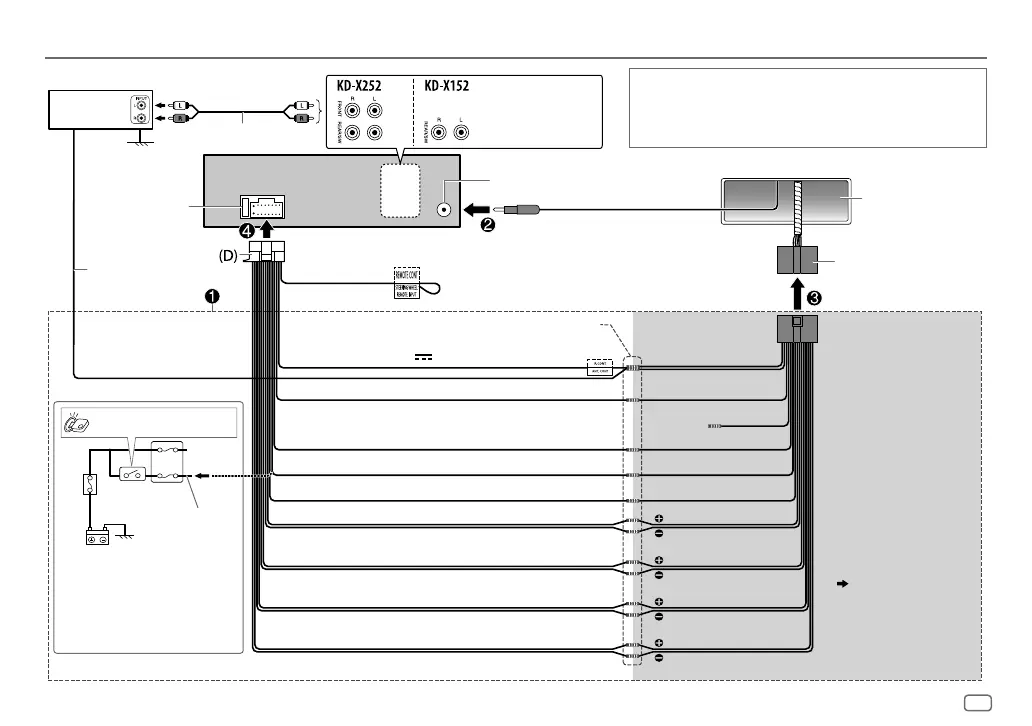

Wiring connection
Car fuse block
Ignition switch
Blue/white: To amplifier
Blue: To power antenna
Make this connection if your vehicle
factory wiring harness does not
have “12V ignition switch” wire.
Separate red wire
Signal cord (not supplied)
Remote wire
(not supplied)
Fuse (10A)
Antenna terminal
Factory wiring
harness (vehicle)
Vehicle
dashboard
Black: Ground
White: Front speaker (left)
White/black
Gray: Front speaker (right)
Gray/black
Green: Rear speaker (left)
*
2
Green/black
*
2
Purple: Rear speaker (right)
Purple/black
Join the same color wires together.
Red: Ignition 12V
Orange/white: Illumination
Blue/white: Remote (12V
350mA)
Light blue/yellow
To the steering wheel
remote control adapter
JVC Amplifier
*
1
Custom wiring harness
(separately purchased)
Recommended connection
IMPORTANT
We recommend installing the unit with a commercially available
custom wiring harness specific for your car and leave this job to
professionals for your safety. Consult your car audio dealer.
(Not used)
Brown
Yellow: Battery 12V
Output terminals
JS_JVC_KD-X252_M_EN_1.indd 19JS_JVC_KD-X252_M_EN_1.indd 19 22/6/2017 10:23:13 AM22/6/2017 10:23:13 AM

JVC KD-X252 Specifications

General

DIN size	1 DIN
Equalizer	Yes
Product color	Black
Ready for iPod	No
Equalizer bands quantity	15
Maximum power per channel	50 W
AM band range	531 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	24
Audio system	MOSFET
Audio formats supported	FLAC, MP3, WAV, WMA
Display type	LCD
Key illumination color	Red

Weight and Dimensions

Weight	600 g
Dimensions (WxDxH)	182 x 100 x 53 mm
