JVC KD-X262 Quick Start Guide

3
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)

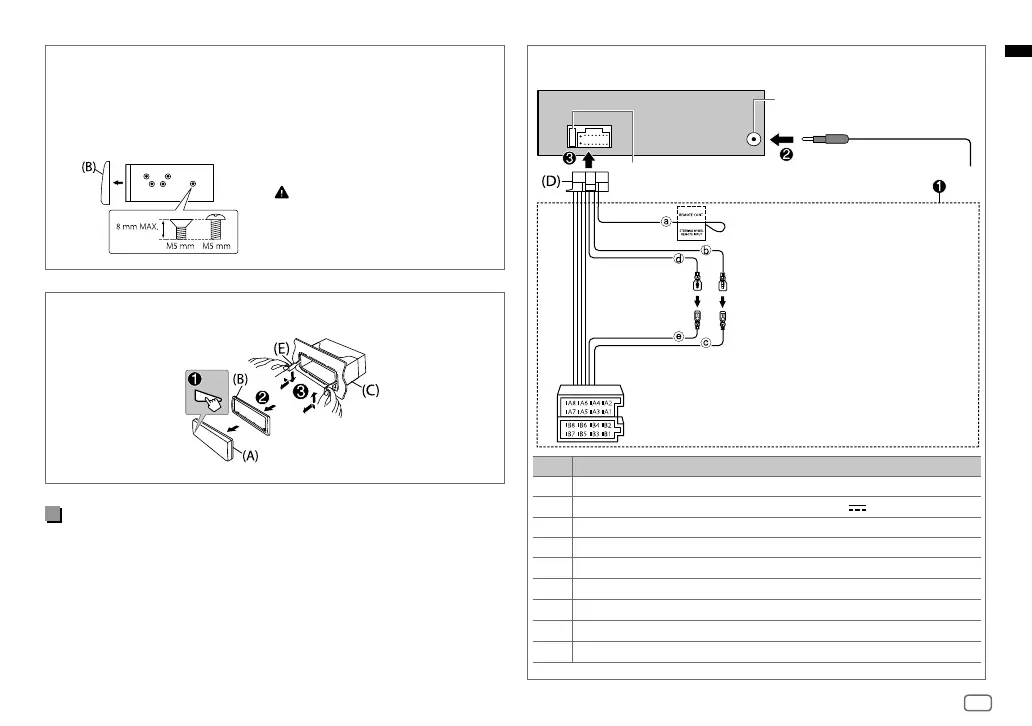

Removing the unit
Installing the unit (without mounting sleeve)
1 Remove the mounting sleeve and trim plate from the unit.
2 Align the holes in the unit (on both sides) with the vehicle
mounting bracket and secure the unit with screws (commercially
available).
Part list (supplied)
(A) Faceplate (×1)
(B) Trimplate (×1)
(C) Mounting sleeve (×1)
(D) Wiring harness (×1)
(E) Extraction key (×2)
Use only the specified screws.
Using wrong screws might damage
the unit.
Wiring connection
Antenna terminal
Fuse (10 A)
Pin Color and function
A4 Yellow : Battery
A5 Blue/White : Power control (12 V
350 mA)
A6 Orange/white : Car light control switch
A7 Red : Ignition (ACC)
A8 Black : Earth (ground) connection
B1, B2
Purple
] , Purple/black [
: Rear speaker (right)
B3, B4
Gray
] , Gray/black [
: Front speaker (right)
B5, B6
White
] , White/black [
: Front speaker (left)
B7, B8
Green
] , Green/black [
: Rear speaker (left)
a Light blue/yellow: To the
steering wheel remote control
adapter
b Yellow: Battery wire
c Yellow: A4
d Red: Ignition wire
e Red: A7
ISO connectors
JS_JVC_QSG_KD_X262_E_EN_int1.indd 3JS_JVC_QSG_KD_X262_E_EN_int1.indd 3 6/14/2018 2:59:46 PM6/14/2018 2:59:46 PM

JVC KD-X262 Specifications

General

DIN size	-
Output power	200 W
Product color	Black, Red
Ready for iPod	Yes
High pass filter	No
Audio output channels	- channels
Equalizer bands quantity	3
Maximum power per channel	50 W
Audio formats supported	FLAC, MP3, WAV, WMA
USB version	2.0
USB port position	Front
USB connector type	USB Type-A
USB ports quantity	1
AM band range	531 - 1611 kHz
FM band range	87.5 - 108 MHz
LW band range	153 - 279 kHz
Supported radio bands	AM, FM, LW, MW
Preset stations quantity	24
Display type	LCD
Illumination color	White
Package weight	900 g

Weight and Dimensions

Depth	100 mm
Width	182 mm
Height	53 mm
Weight	600 g
