JVC KD-X270BT User Manual

44
ENGLISH
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)

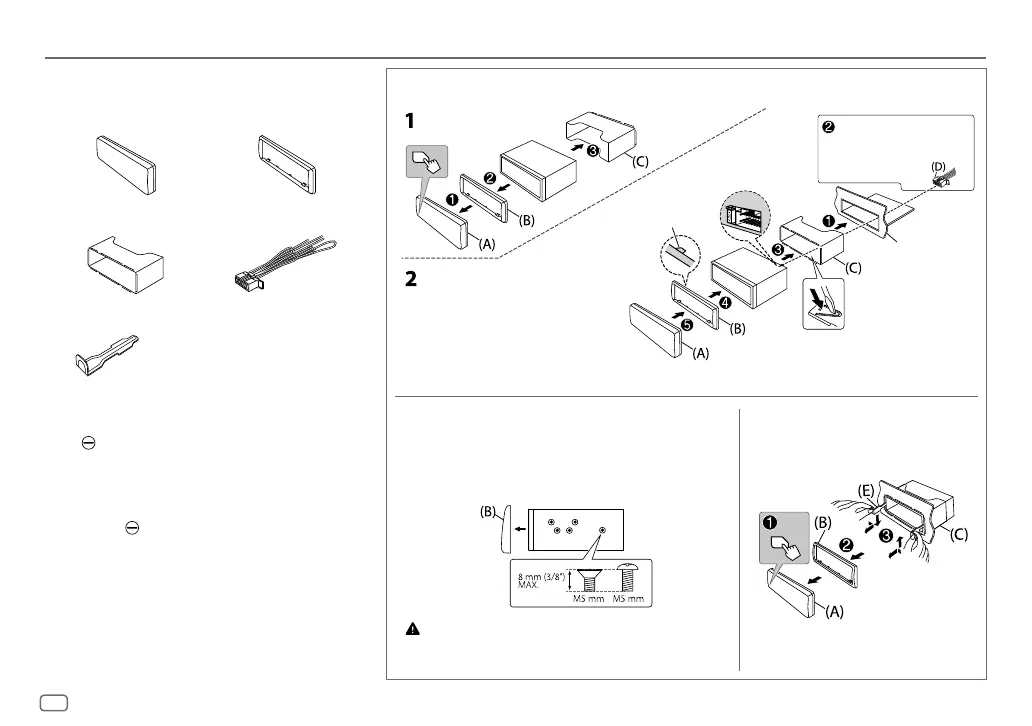

Installing the unit (in-dash mounting)
Part list for installation
(A) Faceplate (×1) (B) Trim plate (×1)
(C) Mounting sleeve (×1) (D) Wiring harness (×1)
(E) Extraction key (×2)
Basic procedure
1 Remove the key from the ignition switch, then disconnect
the
terminal of the car battery.
2 Connect the wires properly.
See “Wiring connection” on page 45.
3 Install the unit to your car.
See the following “Installing the unit (in-dash mounting)”.
4 Connect the terminal of the car battery.
5 Press B SRC to turn on the power.
6 Detach the faceplate and reset the unit within 5 seconds.
(Page4)
Removing the unitInstalling the unit (without mounting sleeve)
1 Remove the mounting sleeve and trim plate from the unit.
2 Align the holes in the unit (on both sides) with the
vehicle mounting bracket and secure the unit with screws
(commercially available).
Use only the specified screws. Using wrong screws might damage
the unit.
Do the required wiring.
(Page 45)
Bend the appropriate tabs to hold the
sleeve firmly in place.
Hook on the top side
Orientate the trim
plate as illustrated
before fitting.
Dashboard of
your car
Installation/Connection
JS_JVC_KD_X470BHS_K_EN_2.indd 44JS_JVC_KD_X470BHS_K_EN_2.indd 44 6/11/2019 8:27:50 AM6/11/2019 8:27:50 AM

JVC KD-X270BT Specifications

General

Bluetooth	Yes
USB Input	Yes
Aux Input	Yes
Preamp Outputs	2-channel
Peak Power Output	50 watts x 4 channels
RMS Power Output	22 watts x 4 channels
DIN Size	Single DIN
CEA-2006 Compliant	Yes
Subwoofer Preamp Output	Yes
Preamp Voltage	2.5 volts
Display Type	LCD
Radio Tuner	AM/FM
MP3 Playback	Yes
WMA Playback	Yes
FLAC Playback	Yes
Android Compatibility	Yes
iPhone Compatibility	Yes
Steering Wheel Control Compatible	Yes
Preset EQ	Yes
Built-in Microphone	Yes
Wireless Audio Streaming	Yes
Built-in EQ	Yes
Compatible Audio Formats	MP3, WMA, FLAC
