When connecting to an external amplifier, connect its
ground wire to the car’s chassis to avoid damaging the unit.

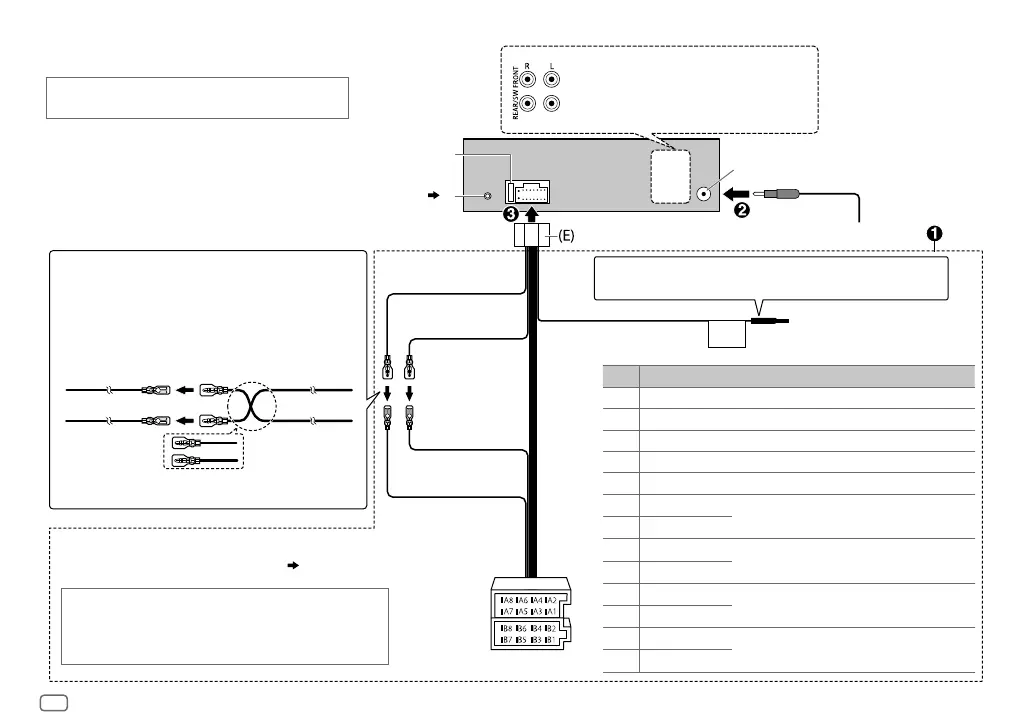

Wiring connection (for
KD-X330BT
)
Fuse (10A)
Antenna terminal
Light blue/yellow
(Steering remote
control wire)
To the steering wheel
remote control adapter
Yellow (A4)
Red (Ignition wire)
Red (A7)
Yellow (Battery wire)
Pin
Color and function
A4 Yellow : Battery
A5 Blue/White : Power control
A6 Orange/white : Car light control switch
A7 Red : Ignition (ACC)
A8 Black : Earth (ground) connection
B1
Purple
]
: Rear speaker (right)
For 3-way crossover: Tweeter (right)
B2
Purple/black
[
B3
Gray
]
: Front speaker (right)
For 3-way crossover: Mid range speaker (right)
B4
Gray/black
[
B5
White
]
: Front speaker (left)
For 3-way crossover: Mid range speaker (left)
B6
White/black
[
B7
Green
]
: Rear speaker (left)
*
For 3-way crossover: Tweeter (left)
B8
Green/black
[
Connecting the ISO connectors on some VW/
Audi or Opel (Vauxhall) automobiles
You may need to modify the wiring of the
supplied wiring harness as illustrated below.
Unit
Vehicle
A7 (Red)
Ignition wire
(Red)
A4 (Yellow)
Default wiring
Battery wire
(Yellow)
If no connections are made, do not let the wire
come out from the tab.
* You can also connect a subwoofer speaker directly without
an external subwoofer amplifier. For setting,
16
.
ISO connectors
If your car does not have an ISO terminal
We recommend installing the unit with a commercially available
custom wiring harness specific for your car and leave this job to
professionals for your safety. Consult your car audio dealer.
Microphone input jack
( 9)
Front/ Rear/Subwoofer output
For 3-way crossover: Mid Range/ Woofer output
