JVC KD-X330BT - Wiring Diagrams; KD-X33 MBT Wiring Connections

ENGLISH
27
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
STEERING
WHEEL
REMOTE
Microphone input
jack
( 9)
*
1
Firmly connect the ground
wire of the amplifier to
the car’s chassis to avoid
damaging the unit.
*
2
You can also connect a
subwoofer speaker directly
using this lead without
an external subwoofer
amplifier. For setting,
 16 .

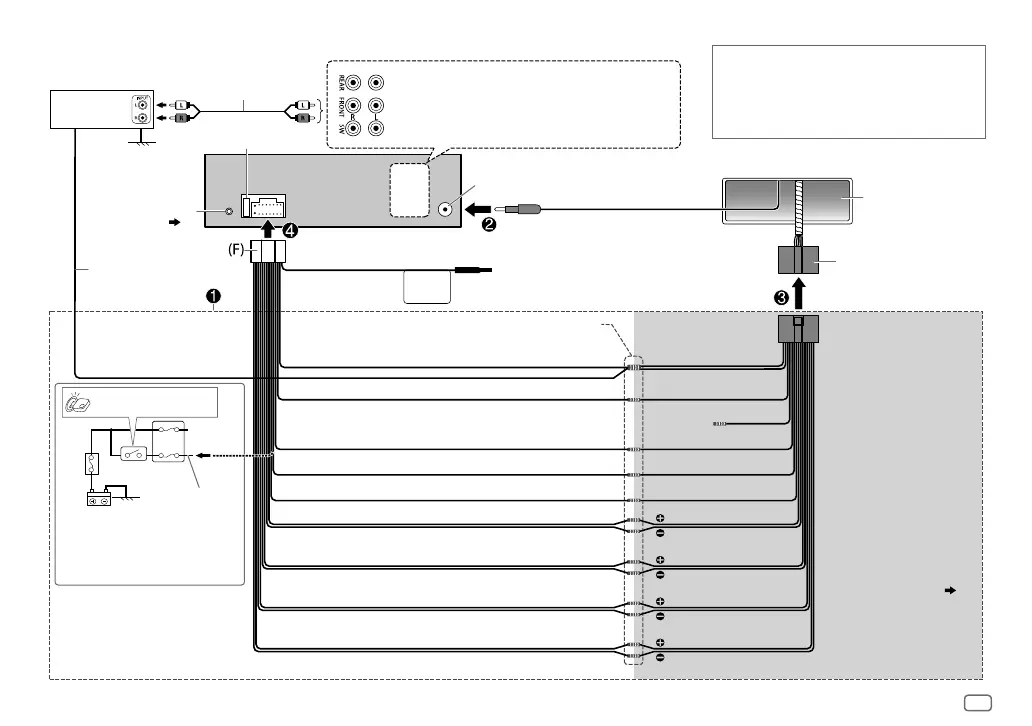

Wiring connection (for KD-X33MBT )
Car fuse block
Ignition switch
Blue/white: To amplifier
Blue: To power antenna
Make this connection if your vehicle
factory wiring harness does not
have “12V ignition switch” wire.
Separate red wire
Signal cord
(not supplied)
Remote wire
(not supplied)
Fuse (10A)
Antenna terminal
Factory wiring
harness (vehicle)
Vehicle
dashboard
Black: Ground
White: Front speaker/For 3-way crossover: Mid range speaker (left)
White/black
Gray: Front speaker/For 3-way crossover: Mid range speaker (right)
Gray/black
Green: Rear speaker
*
2
/For 3-way crossover: Tweeter (left)
Green/black
*
2
Purple: Rear speaker/For 3-way crossover: Tweeter (right)
Purple/black
Join the same color wires together.
Red: Ignition 12V
Orange/white: Illumination
Blue/white: Remote (200mA max.)
Light blue/yellow
To the steering wheel
remote control adapter
JVC Amplifier
*
1
Custom wiring harness
(separately purchased)
Recommended connection
IMPORTANT
We recommend installing the unit with a
commercially available custom wiring harness specific
for your car and leave this job to professionals for your
safety. Consult your car audio dealer.
(Not used)
Brown
Yellow: Battery 12V
Rear/ Front/ Subwoofer output
For 3-way crossover: Tweeter/ Mid Range/ Woofer output
