ENGLISH
41
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)

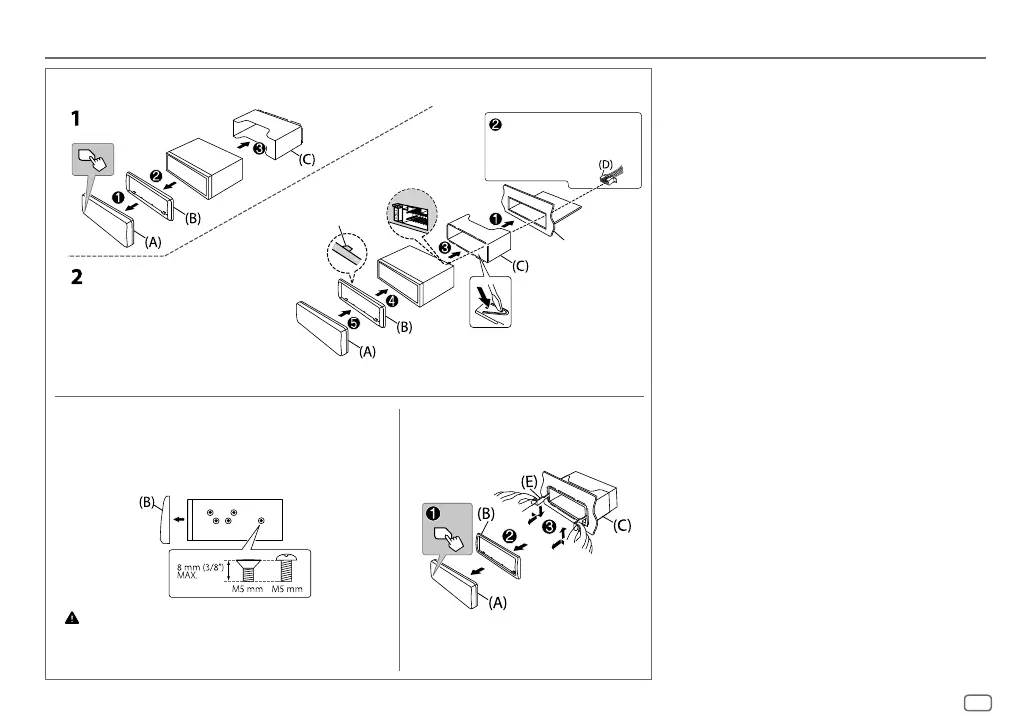

Installing the unit (in-dash mounting)
Removing the unitInstalling the unit (without mounting sleeve)
1
Remove the mounting sleeve and trim plate from the unit.
2
Align the holes in the unit (on both sides) with the
vehicle mounting bracket and secure the unit with screws
(commercially available).
Use only the specified screws. Using wrong screws might damage
the unit.
Installation/Connection
Do the required wiring.
(Page 42)
Bend the appropriate tabs to hold the
sleeve firmly in place.
Hook on the top side
Orientate the trim
plate as illustrated
before fitting.
Dashboard of
your car
KD-X480BHS_K_B5A-3881-00_EN_2nd Draft.indd 41KD-X480BHS_K_B5A-3881-00_EN_2nd Draft.indd 41 25/8/2021 3:38:04 PM25/8/2021 3:38:04 PM
To Next Page
