Installation/Connection

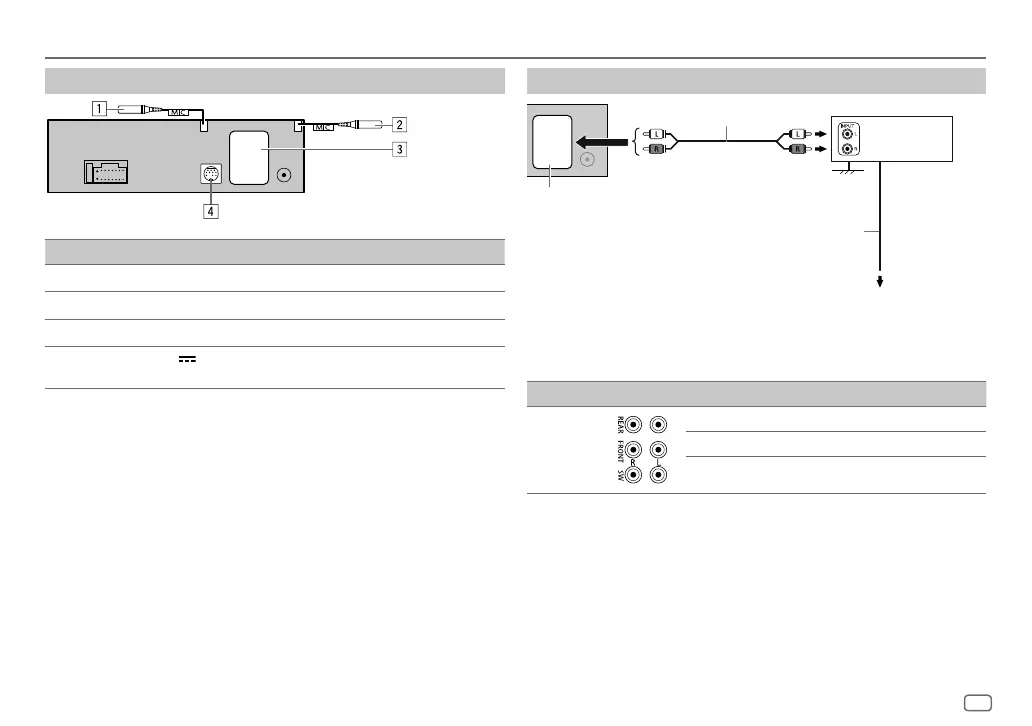

Connect external components
No Part
1
For KD-X480BHS: MIC (Microphone input terminal) (page 18)
2
For KD-X380BTS: MIC (Microphone input terminal) (page 18)
3
Output terminals (See “Connect external amplifiers via output terminals”.)
4
Expansion port (12 V 500 mA): To the optional SiriusXM Vehicle Tuner (commercially
available). (Page 13)
Connect external amplifiers via output terminals
* Firmly connect the ground wire of the amplifier to the car’s chassis to avoid damaging the unit.
Model Output terminals 2-way crossover 3-way crossover
KD-X480BHS/
KD-X380BTS
REAR: Rear output Tweeter output
FRONT: Front output Mid Range output
SW: Subwoofer output Woofer output
JVC Amplifier*
Signal cord (not supplied)
To remote lead (blue/white) of the
wiring harness. (Page 42)
Remote wire (not supplied)
Output terminals
